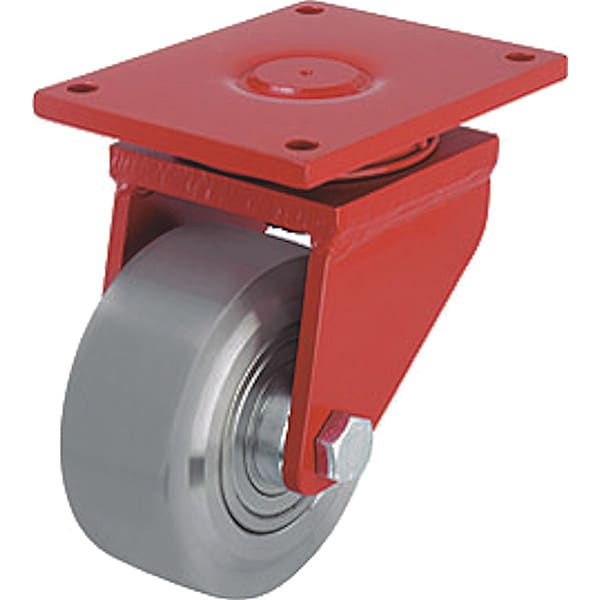

Zoro Select Plate Caster, 6610 lb. Ld Rating, Ball LS-SVS 150K-35 - main

Plate Caster, 6610 lb. Ld Rating, Ball

  • Mfr # LS-SVS 150K-35

  • Zoro # G8518279

product price:  $413.99
/ea
Free Shipping & Returns

Key Features

Thread Guards
No
Wheel Dia.
6 in
Features
Push/Pull Force Reduction
Application
Dollies, Dough Troughs, Platform Trucks, Scrap Metal Carriers, Tooling Fixtures, Tow Lines, Utility Carts
Caster Brake Included
No
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
LS-SVS 150K-35
Zoro #
G8518279
UPC #
-
Country of Origin
Germany

Dimensions

Wheel Dia.
6 in
Swivel Radius
5 1/2 in
Wheel Width
2 3/16 in
Mounting Bolt Dia.
9/16 in
Overall Height
8-5/64in
Mounting Plate Size
140 mm x 175 mm
Mounting Height
8 1/16 in
Bolt Hole Spacing - Width
4.125 in
For Axle Dia.
16 mm
Overall Wheel Width
2 3/16 in
Mounting Plate Thickness
10 mm
Mounting Plate Width
140 mm
Bolt Hole Spacing - Length
5.5 in
Mounting Plate Length
175 mm

Details

Thread Guards
No
Features
Push/Pull Force Reduction
Application
Dollies, Dough Troughs, Platform Trucks, Scrap Metal Carriers, Tooling Fixtures, Tow Lines, Utility Carts
Caster Brake Included
No
Inside Bolt Hole Spacing
105 mm x 140 mm
Non-Marking
No
Wheel Color
Silver
Caster Plate Hole Pattern
D
Extended Lead
No
Number of Wheels
1
Core Color
Silver
Replacement Wheel
Mfr. No. SVS 150/45K
Outside Bolt Hole Spacing
105 mm x 140 mm
Item
Swivel Caster
Load Rating
6600 lb
Caster Sub-Type
Swivel
Frame Finish
Zinc Plated
Caster Frame Material
Steel
Standards
DIN EN 12533, ANSI ICWM
Caster Temp. Range Available
Yes
Caster Brake Type
No Brake
Number of Mounting Holes
4
Swivel Lock Type
No Lock Included
Wheel/Tread Hardness Rating
Extra Hard
Includes Thread Guards
No
Swivel Construction
Kingpin
Wheel Core Material
Steel
Load Rating Range
Extra-Heavy Duty
Tread Shape
Standard
Swivel Raceway Type
Single Ball/Tapered Roller Bearing
Wheel Bearing Type
Precision Ball
Wheel/Tread Material
Extra Heavy Duty Solid Steel
Wheel/Tread Color
Silver
System of Measurement
Metric
Tread
Standard
ESD Conductive
No
Tread Color
Silver
Load Capacity
3000 kg
Series
LS Series
Resistant To
High Chemical Resistance To Many Aggressive Substances
Caster Mounting Type
Plate
Compatible With
SVS 150/45K
Load Capacity - Maximum
6,615 lb
Mounting Plate Shape
Rectangle
Wheel Core Type
Solid
Caster Features
Corrosion-Resistant
Wheel Bearing Material
Steel
For Surface Type
Grease, Metal Scrap, Oil, Rubber, Steel, Wood
Wheel Hardness Rating
190-230 BHN
Mounting Hole Type
Hole
Operating Temperature Range
-25 Degrees To 120 Degrees C
Operating Temperature - Maximum
250 Degrees F
Operating Temperature - Minimum
-15 Degrees F

Description

Swivel, Plate Caster, Load Rating 6600 lb, Swivel Lock Type No Lock Included, Wheel Dia. 6 in, Wheel Width 2 3/16 in, Wheel Core Material Steel, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
