  11. Plate Caster, 700 lb. Load, Yellow Wheel
Zoro Select Plate Caster, 700 lb. Load, Yellow Wheel P21S-UY040K-16-WB-DL - main

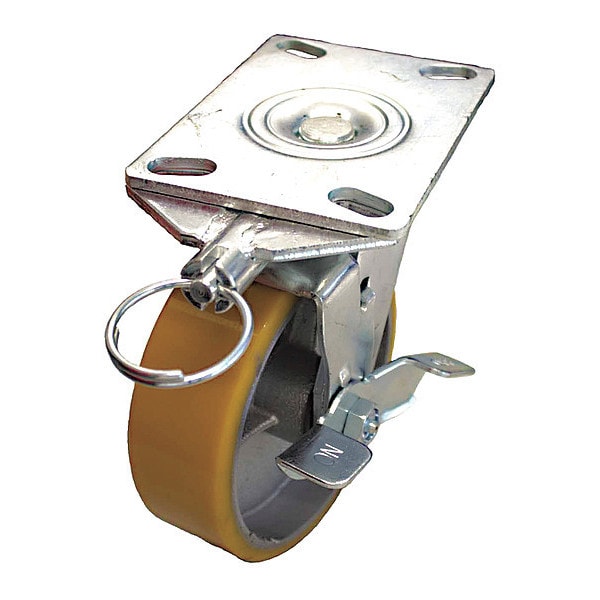

Plate Caster, 700 lb. Load, Yellow Wheel

  • Mfr # P21S-UY040K-16-WB-DL

  • Zoro # G6565139

product price: $53.99
/ea

Key Features

Caster Sub-Type
Swivel
System of Measurement
Inch
Wheel/Tread Material
Polyurethane
Caster Brake Type
Directional Lock, Side Brake
Wheel Dia.
4 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
P21S-UY040K-16-WB-DL
Zoro #
G6565139
UPC #
-
Country of Origin
China

Dimensions

Wheel Dia.
4 in
Wheel Width
2 in
Mounting Height
5 5/8 in
Mounting Plate Size
4-1/2 in x 6-1/4 in
Mounting Plate Thickness
0.236 in
Mounting Bolt Dia.
1/2 in
Overall Height
5-5/8in
Swivel Radius
3-3/8 in
For Axle Dia.
1/2 in
Overall Wheel Width
2 in
Mounting Plate Length
4 1/2 in
Inside Slot Spacing - Length
4.938 in
Outside Slot Spacing - Length
5.25 in
Inside Slot Spacing - Width
2.438 in

Details

Item
Swivel Caster With Brake And Directional-Lock
Caster Sub-Type
Swivel
System of Measurement
Inch
Wheel/Tread Material
Polyurethane
Caster Brake Type
Directional Lock, Side Brake
Load Rating
700 lb
Caster Mounting Type
Plate
Wheel Bearing Type
Precision Ball
Wheel/Tread Color
Yellow
Wheel Hardness Rating
92 Shore A
Number of Mounting Holes
4
Tread Shape
Standard
Caster Frame Material
Steel
Core Color
Gray
Non-Marking
Yes
Number of Wheels
1
Outside Bolt Hole Spacing
3-3/8 in x 5-1/4 in
Inside Bolt Hole Spacing
2-7/16 in x 4-15/16 in
Caster Plate Hole Pattern
A
Features
Floor Protective
Standards
RoHS, ICWM, NSF
Thread Guards
No
Wheel Color
Yellow
Caster Brake Included
Yes
Extended Lead
No
Frame Finish
Zinc Plated
Includes
Strap Type Brake, 4-Position Directional Lock
Caster Temp. Range Available
Yes
Application
Food Service, Food Processing, Drug Manufacturing, Retail, Industrial, Commercial, Automotive, Clean Room, Aerospace
Replacement Wheel
Mfr. No. P-UY-040x020/050K
Wheel/Tread Hardness Rating
Firm
Swivel Raceway Type
Double Ball
Wheel Core Material
Cast Iron
Swivel Construction
Kingpin
Swivel Lock Type
4-Position Directional Lock
Includes Thread Guards
No
Load Rating Range
Medium Duty
Series
P21 Series
Tread Color
Yellow
Tread
Standard
ESD Conductive
No
Resistant To
High Chemical Resistance To Many Aggressive Substances
Load Capacity
700 lb
Load Capacity - Maximum
700 lb
Caster Features
Corrosion-Resistant, Debris-Resistant, Maintenance Free, Quiet-Roll
Wheel Bearing Material
Steel
For Surface Type
Asphalt, Ceramic, Grease, Oil, Rubber, Steel, Tile, Vinyl, Wood
Mounting Hole Type
Slot
Wheel Core Type
Solid
Mounting Plate Shape
Rectangle
Operating Temperature - Maximum
180 Degrees F
Operating Temperature - Minimum
-40 Degrees F
Operating Temperature Range
-15 Degrees To 160 Degrees F

Description

Swivel, Plate Caster, Load Rating 700 lb, Swivel Lock Type 4-Position Directional Lock, Wheel Dia. 4 in, Wheel Width 2 in, Wheel/Tread Material Polyurethane, Wheel Core Material Iron, Non-Marking Yes, Number of Wheels 1, Caster Brake Type Directional Lock, Side Brake, Tread Shape Standard
