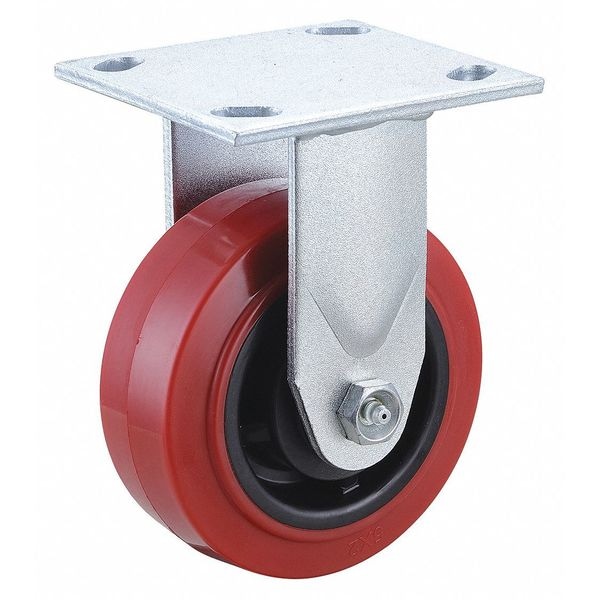

Plate Caster, 750 lb. Load Rating, Rigid

product price: $19.99
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Caster Brake Included No
  • Caster Load Rating Range Light-Medium Duty
  • Caster Sub-Type Rigid
  • Caster Product Group Rigid Caster
  • Load Rating 750 lb
See all product information

Product Information

Dimensions

Wheel Dia. 5 in
Wheel Width 2 in
Overall Height 6-1/2"
Mounting Height 6 1/2 in
Mounting Plate Size 4 in x 4 1/2 in
Mounting Bolt Dia. 3/8 in
Caster Plate Size 4" x 4-1/2"
Plate Size 4" x 4-1/2"

Details

Caster Brake Included No
Item Standard Plate Caster
Caster Load Rating Range Light-Medium Duty
Caster Sub-Type Rigid
Caster Product Group Rigid Caster
Load Rating 750 lb
Caster Wheel Shape Standard
Caster Wheel/Tread Material Polyurethane
Wheel/Tread Material Polyurethane
Wheel/Tread Hardness Rating Firm
Wheel Bearing Type Roller
Mounting Plate Bolt Hole Pattern B
Inside Bolt Hole Spacing 3 in x 3 in
Outside Bolt Hole Spacing 2-5/8 in x 3-5/8 in
Number of Mounting Holes 4
Caster Brake Type No Brake Included
Swivel Lock Type No Lock Included
Non-Marking Yes
Number of Wheels 1
Frame Finish Zinc Plated
Caster Frame Material Steel
Wheel Core Material Polyolefin
Core Color Black
Application General Purpose
Extended Lead No
Replacement Wheel 1URL8
Thread Guards No
Plate Thickness 7/32"
Frame Material Steel
Caster Plate Thickness 7/32"
Caster Temp. Range Available Yes
Caster Wheel Bearings Roller
Caster Swivel Lock Type No Lock Included
Caster Min. Temp. -40 Degrees F
Caster Plate Hole Pattern B
Plate Caster Bolt Hole Pattern B
Caster Core Material Polyolefin
Caster Temp. Range -40 Degrees to 175 Degrees F
Caster Max. Temp. 175 Degrees F
Durometer 95 Shore A
Wheel Color Red
Includes Thread Guards No
Swivel Construction Kingpinless
Tread Shape Standard
Wheel/Tread Hardness 95 Shore A
Load Rating Range 300 to 999 lb
Wheel/Tread Color Red

Description

Rigid, Standard Plate Caster, Load Rating 750 lb, Swivel Lock Type No Lock Included, Wheel Dia. 5 in, Wheel Width 2 in, Wheel/Tread Material Polyurethane, Wheel Core Material Polyolefin, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake Included, Tread Shape Standard
