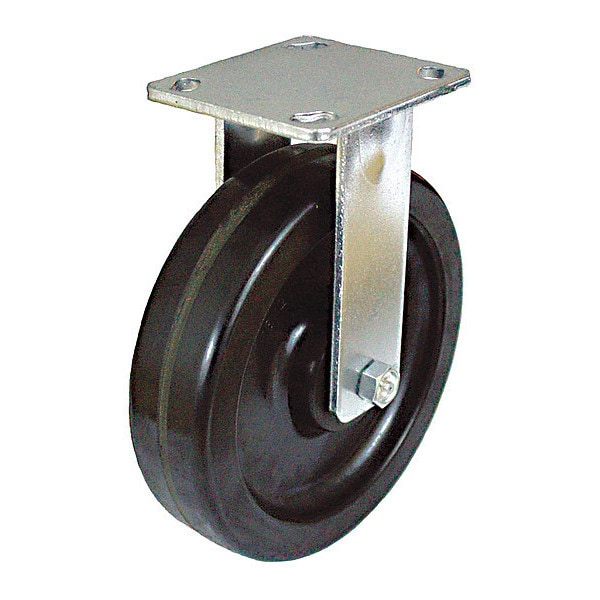

Zoro Select Plate Caster, 800 lb. Load, Black Wheel P21R-PH040R-16 - main

Plate Caster, 800 lb. Load, Black Wheel

  • Mfr # P21R-PH040R-16

  • Zoro # G5614730

product price:  $24.95
/ea

Key Features

Overall Height
5-5/8in
Mounting Bolt Dia.
1/2 in
Caster Plate Hole Pattern
A
Features
Push/Pull Force Reduction
Includes
Complete Caster
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
P21R-PH040R-16
Zoro #
G5614730
UPC #
-
Country of Origin
China

Dimensions

Overall Height
5-5/8in
Mounting Bolt Dia.
1/2 in
Wheel Width
2 in
Wheel Dia.
4 in
Mounting Height
5 5/8 in
Mounting Plate Size
4-1/2 in x 6-1/4 in
Mounting Plate Length
6 1/4 in
Mounting Plate Thickness
0.236 in
Outside Slot Spacing - Length
5.25 in
Inside Slot Spacing - Length
4.938 in
Outside Slot Spacing - Width
3.375 in
Inside Slot Spacing - Width
2.438 in
For Axle Dia.
1/2 in
Bolt Hole Spacing - Length
2.438 in
Overall Wheel Width
2 in
Mounting Plate Width
4 1/2 in

Details

Caster Plate Hole Pattern
A
Features
Push/Pull Force Reduction
Includes
Complete Caster
Item
Rigid Caster
Outside Bolt Hole Spacing
3-3/8 in x 5-1/4 in
Caster Frame Material
Steel
Non-Marking
Yes
Standards
ANSI ICWM
Frame Finish
Zinc Plated
Core Color
Black
Caster Brake Included
No
Number of Wheels
1
Load Rating
800 lb
Application
Aerospace Tooling, All Purpose Industrial and Commercial Casters, Automotive Assembly Lines, Body Dolly Carts, Chassis Rack Carts, Engine Dollies, Material Carts
Thread Guards
No
Caster Temp. Range Available
Yes
Wheel Color
Black
Caster Sub-Type
Rigid
Caster Brake Type
No Brake
Inside Bolt Hole Spacing
2-7/16 in x 4-15/16 in
Extended Lead
No
Replacement Wheel
Mfr. No. P-PH-040x020/050R
Tread Shape
Standard
Number of Mounting Holes
4
Wheel Core Material
Phenolic
Load Rating Range
Medium Duty
Swivel Lock Type
No Lock Included
Wheel Bearing Type
Roller
Includes Thread Guards
No
Wheel/Tread Hardness Rating
Hard
Wheel/Tread Material
Phenolic
Wheel/Tread Color
Black
System of Measurement
Inch
Tread Color
Black
ESD Conductive
No
Caster Mounting Type
Plate
Tread
Standard
Load Capacity
800 lb
Resistant To
High Chemical Resistance To Many Aggressive Substances
Series
P21 Series
Load Capacity - Maximum
800 lb
Wheel Core Type
Solid
Mounting Plate Shape
Rectangle
Caster Features
Corrosion-Resistant
Wheel Hardness Rating
Rockwell 102E
For Surface Type
Grease, Metal Scrap, Oil, Rubber, Steel, Wood
Wheel Bearing Material
Steel
Mounting Hole Type
Slot
Operating Temperature - Maximum
250 Degrees F
Operating Temperature Range
-40 Degrees To 250 Degrees F
Operating Temperature - Minimum
-65 Degrees F

Description

Rigid, Plate Caster, Load Rating 800 lb, Swivel Lock Type No Lock Included, Wheel Dia. 4 in, Wheel Width 2 in, Wheel/Tread Material Phenolic, Wheel Core Material Phenolic, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
