Shop ZORO SELECT

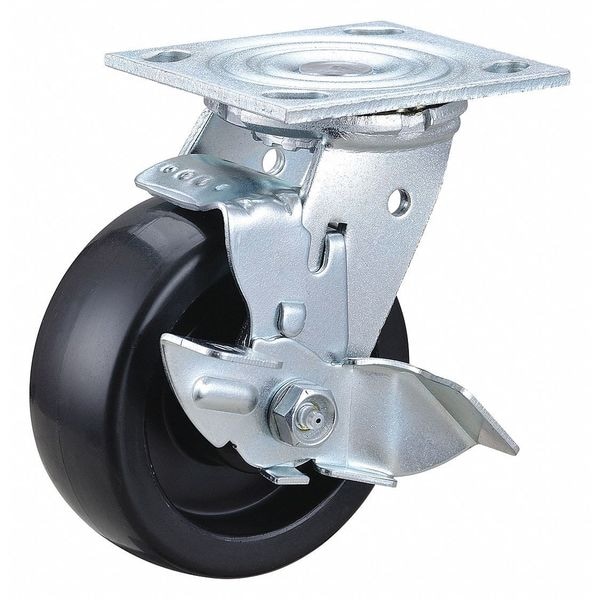

Plate Caster, 800 lb. Load Rating, Swivel

  • Mfr # 400K57

  • Zoro # G5569562

product price:
$
21.39
/ea

Key Features

Frame Finish
Zinc Plated
Core Color
Black
Overall Height
6-1/2"
Outside Bolt Hole Spacing
2-5/8 in x 3-5/8 in
Swivel Radius
4 1/4 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
400K57
Zoro #
G5569562
UPC #
-
Country of Origin
China

Dimensions

Overall Height
6-1/2"
Swivel Radius
4 1/4 in
Wheel Width
2 in
Mounting Bolt Dia.
3/8 in
Wheel Dia.
5 in
Mounting Plate Size
4 in x 4 1/2 in
Mounting Height
6 1/2 in
Mounting Plate Thickness
7/32in

Details

Frame Finish
Zinc Plated
Core Color
Black
Item
Plate Caster
Outside Bolt Hole Spacing
2-5/8 in x 3-5/8 in
Caster Frame Material
Steel
Caster Plate Hole Pattern
B
Non-Marking
Yes
Number of Wheels
1
Caster Brake Type
Side Brake
Application
General Purpose
Caster Temp. Range Available
Yes
Caster Sub-Type
Swivel
Load Rating
800 lb
Extended Lead
No
Wheel Color
Black
Thread Guards
No
Inside Bolt Hole Spacing
3 in x 3 in
Replacement Wheel
1ULL1
Caster Brake Included
Yes
Swivel Lock Type
No Lock Included
Number of Mounting Holes
4
Wheel/Tread Hardness Rating
Hard
Swivel Raceway Type
Double Ball
Tread Shape
Standard
Swivel Construction
Kingpin
Wheel Bearing Type
Roller
Load Rating Range
300 to 999 lb
Includes Thread Guards
No
Wheel Core Material
Polyolefin
Wheel/Tread Material
Polyolefin
Wheel/Tread Color
Black
System of Measurement
Inch
Wheel Hardness Rating
65 Shore D
Load Capacity - Maximum
800 lb
Operating Temperature - Minimum
-20 Degrees F
Operating Temperature - Maximum
180 Degrees F
Operating Temperature Range
-20 Degrees to 180 Degrees F

Description

Swivel, Plate Caster, Load Rating 800 lb, Swivel Lock Type No Lock Included, Wheel Dia. 5 in, Wheel Width 2 in, Wheel/Tread Material Polyolefin, Wheel Core Material Polyolefin, Non-Marking Yes, Number of Wheels 1, Caster Brake Type Side Brake, Tread Shape Standard

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
