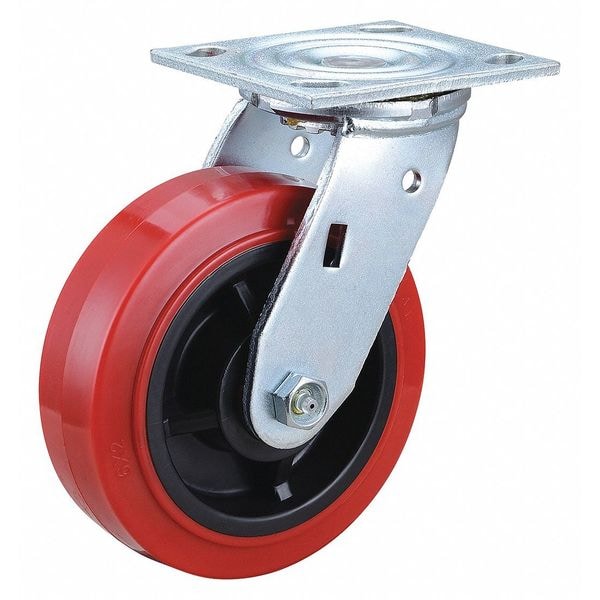

Zoro Select Plate Caster, 800 lbs Load Rating, Swivel 400K53 - main

Plate Caster, 800 lbs Load Rating, Swivel

  • Mfr # 400K53

  • Zoro # G5093020

product price:  $19.79
/ea

Key Features

Extended Lead
No
Wheel Dia.
6 in
Caster Stem Type
No Stem/Plate Included
Caster Temp. Range Available
Yes
Outside Bolt Hole Spacing
2-5/8 in x 3-5/8 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
400K53
Zoro #
G5093020
UPC #
-
Country of Origin
China

Dimensions

Wheel Dia.
6 in
Swivel Radius
5 in
Overall Height
7-1/2"
Stem Dia.
No Stem
Mounting Bolt Dia.
3/8 in
Wheel Width
2 in
Mounting Plate Size
4 in x 4 1/2 in
Mounting Height
7 1/2 in
Mounting Plate Thickness
7/32in

Details

Extended Lead
No
Caster Stem Type
No Stem/Plate Included
Caster Temp. Range Available
Yes
Outside Bolt Hole Spacing
2-5/8 in x 3-5/8 in
Non-Marking
Yes
Core Color
Black
Caster Sub-Type
Swivel
Item
Plate Caster
Thread Guards
No
Frame Finish
Zinc Plated
Caster Plate Hole Pattern
B
Replacement Wheel
1ULK4
Inside Bolt Hole Spacing
3 in x 3 in
Load Rating
800 lb
Caster Brake Included
No
Number of Wheels
1
Wheel Color
Red
Caster Frame Material
Steel
Application
General Purpose
System of Measurement
Inch
Caster Brake Type
No Brake
Swivel Lock Type
No Lock Included
Load Rating Range
300 to 999 lb
Number of Mounting Holes
4
Wheel Bearing Type
Roller
Wheel/Tread Hardness Rating
Firm
Swivel Construction
Kingpin
Tread Shape
Standard
Wheel Core Material
Polyolefin
Swivel Raceway Type
Double Ball
Includes Thread Guards
No
Wheel/Tread Material
Polyurethane
Wheel/Tread Color
Red
Wheel Hardness Rating
95 Shore A
Load Capacity - Maximum
800 lb
Operating Temperature - Minimum
-40 Degrees F
Operating Temperature - Maximum
175 Degrees F
Operating Temperature Range
-40 Degrees to 175 Degrees F

Description

Swivel, Plate Caster, Load Rating 800 lb, Swivel Lock Type No Lock Included, Wheel Dia. 6 in, Wheel Width 2 in, Wheel/Tread Material Polyurethane, Wheel Core Material Polyolefin, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
