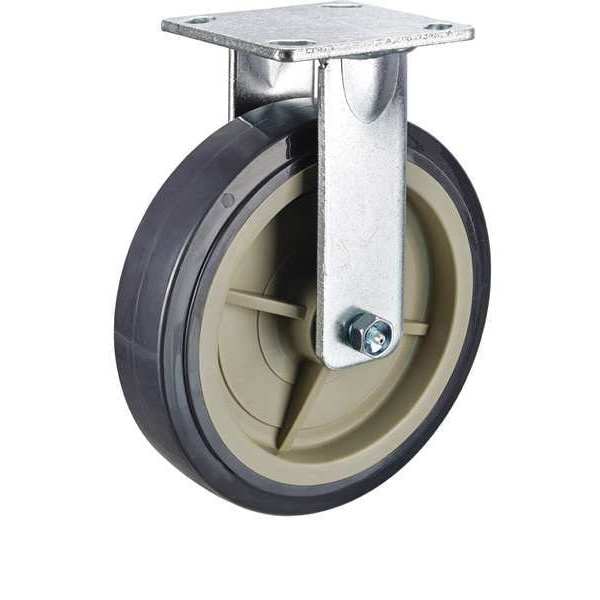

Zoro Select Plate Caster, Medium-Duty, Rigid P21R-UP080R-14-H10 - main

Plate Caster, Medium-Duty, Rigid

  • Mfr # P21R-UP080R-14-H10

  • Zoro # G0232178

product price:  $51.65
/ea

Key Features

Caster Frame Material
Steel
Outside Bolt Hole Spacing
2-5/8 in x 3-5/8 in
Load Rating
1000 lb
Inside Bolt Hole Spacing
3 in x 3 in
Non-Marking
Yes
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
P21R-UP080R-14-H10
Zoro #
G0232178
UPC #
-
Country of Origin
China

Dimensions

Overall Height
10-1/8in
Mounting Bolt Dia.
3/8 in
Wheel Width
2 in
Wheel Dia.
8 in
Mounting Plate Size
4in x 4-1/2in
Mounting Height
10 1/8 in
Mounting Plate Thickness
1/4in
Outside Slot Spacing - Length
3.625 in
Bolt Hole Spacing - Length
2.625 in
Overall Wheel Width
2 in
Inside Slot Spacing - Length
3 in
Inside Slot Spacing - Width
2.625 in
Outside Slot Spacing - Width
3 in
Mounting Plate Length
4 in
For Axle Dia.
1/2 in
Mounting Plate Width
4 in

Details

Caster Frame Material
Steel
Outside Bolt Hole Spacing
2-5/8 in x 3-5/8 in
Load Rating
1000 lb
Inside Bolt Hole Spacing
3 in x 3 in
Non-Marking
Yes
Standards
ANSI ICWM
Caster Temp. Range Available
Yes
Caster Plate Hole Pattern
B
Frame Finish
Zinc Plated
Item
Rigid Caster
Number of Wheels
1
Features
Floor Protective
Wheel Color
Gray
Extended Lead
No
Caster Brake Included
No
Replacement Wheel
Mfr. No. P-UP080X020, P-UP080X050R
Application
Aerospace Tooling, All Purpose Industrial and Commercial Casters, Automotive Assembly Lines, Body Dolly Carts, Chassis Rack Carts, Engine Dollies, Material Carts
Core Color
Gray
Thread Guards
No
Caster Sub-Type
Rigid
Number of Mounting Holes
4
Swivel Lock Type
No Lock Included
Wheel/Tread Hardness Rating
Hard
Load Rating Range
Medium-Duty
Tread Shape
Standard
Wheel Bearing Type
Roller
Includes Thread Guards
No
Wheel Core Material
Polypropylene
Caster Brake Type
No Brake
Wheel/Tread Material
Polyurethane
Wheel/Tread Color
Gray
Tread
Standard
Tread Color
Gray
Load Capacity
1000 lb
Caster Mounting Type
Plate
Series
P21 Series
System of Measurement
Inch
Resistant To
High Chemical Resistance To Many Aggressive Substances
ESD Conductive
No
Compatible With
P-UP080X020, P-UP080X050R
Wheel Hardness Rating
55 Shore D
Load Capacity - Maximum
1,000 lb
Wheel Bearing Material
Steel
Mounting Hole Type
Slot
Mounting Plate Shape
Rectangle
Caster Features
Corrosion-Resistant, Debris-Resistant, Maintenance Free, Quiet-Roll
For Surface Type
Asphalt, Ceramic, Grease, Oil, Rubber, Steel, Tile, Vinyl, Wood
Wheel Core Type
Solid
Operating Temperature - Minimum
-40 Degrees F
Operating Temperature - Maximum
180 Degrees F
Operating Temperature Range
-40 Degrees to 180 Degrees F

Description

Rigid, Plate Caster, Load Rating 1000 lb, Swivel Lock Type No Lock Included, Wheel Dia. 8 in, Wheel Width 2 in, Wheel/Tread Material Polyurethane, Wheel Core Material Polyolefin, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
