Zoro Select Plate Caster, Rigid, 280 lb., Light-Duty 426A87 - main

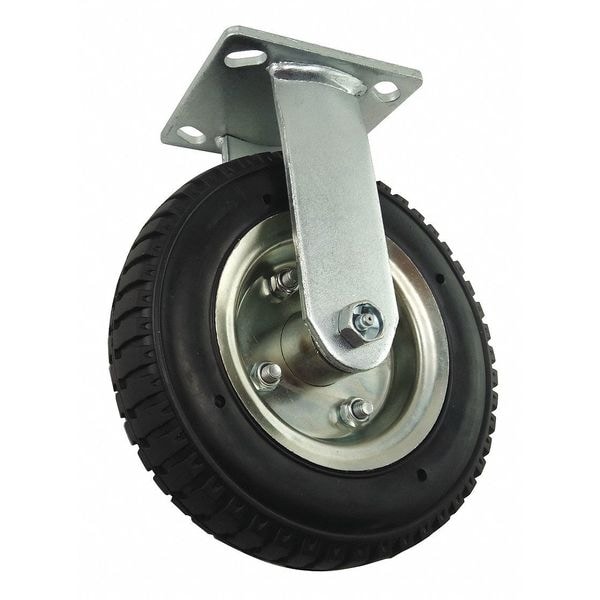

Plate Caster, Rigid, 280 lb., Light-Duty

  • Mfr # 426A87

  • Zoro # G5616970

product price:  $46.49
/ea

Key Features

Wheel Color
Black
Caster Temp. Range Available
Yes
Standards
ANSI, ANSI ICWM
Wheel Width
2 in
Overall Height
9-1/2in
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
426A87
Zoro #
G5616970
UPC #
-
Country of Origin
China

Dimensions

Wheel Width
2 in
Overall Height
9-1/2in
Wheel Dia.
8 in
Mounting Bolt Dia.
3/8 in
Mounting Plate Size
4 in x 4 1/2 in
Mounting Height
9 1/2 in
Mounting Plate Thickness
15/64in

Details

Wheel Color
Black
Caster Temp. Range Available
Yes
Standards
ANSI, ANSI ICWM
Caster Plate Hole Pattern
B
Caster Sub-Type
Rigid
Caster Frame Material
Steel
Load Rating
280 lb
Extended Lead
No
Inside Bolt Hole Spacing
3 in x 3 in
Non-Marking
No
Thread Guards
No
Caster Brake Included
No
Frame Finish
Zinc Plated
Number of Wheels
1
Outside Bolt Hole Spacing
2-5/8 in x 3-5/8 in
Core Color
Silver
Item
Plate Caster
Caster Brake Type
No Brake
Wheel Core Material
Steel
Wheel/Tread Material
Rubber
Swivel Lock Type
No Lock Included
Tread Shape
Standard
Wheel/Tread Hardness Rating
Soft
Number of Mounting Holes
4
Wheel Bearing Type
Ball
Includes Thread Guards
No
Load Rating Range
0 to 299 lb
Swivel Construction
Kingpinless
Wheel/Tread Color
Black
Tread
Centipede
Load Capacity - Maximum
280 lb
Wheel Hardness Rating
70 Shore A
Operating Temperature - Maximum
180 Degrees F
Operating Temperature - Minimum
-40 Degrees F
Operating Temperature Range
-40 Degrees to 180 Degrees F

Description

Rigid, Plate Caster, Load Rating 280 lb, Swivel Lock Type No Lock Included, Wheel Dia. 8 in, Wheel Width 2 in, Wheel/Tread Material Rubber, Wheel Core Material Steel, Non-Marking No, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
