Shop All Plate Casters
Zoro Select

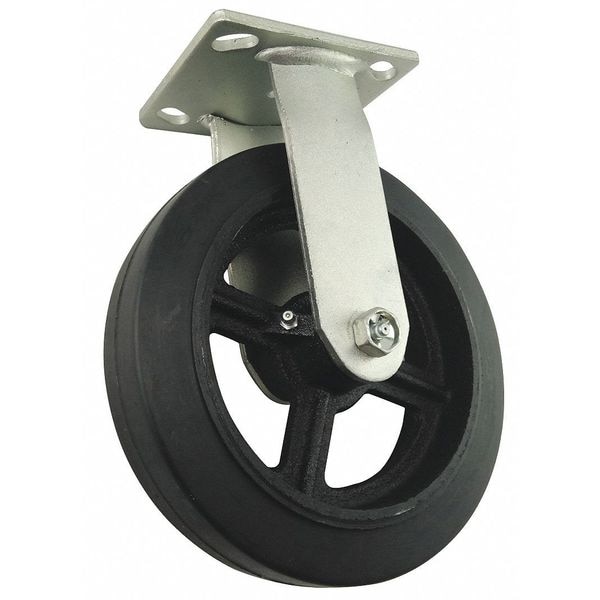

Plate Caster, Rigid, Light-Medium Duty

product price: $23.99
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Caster Brake Included No
  • Caster Load Rating Range Light-Medium Duty
  • Caster Sub-Type Rigid
  • Caster Wheel Shape Standard
  • Caster Wheel/Tread Material Rubber
See all product information

Product Information

Dimensions

Overall Height 9-1/2"
Wheel Dia. 8 in
Wheel Width 2 in
Mounting Bolt Dia. 3/8 in
Caster Plate Size 4" x 4-1/2"
Plate Size 4" x 4-1/2"
Mounting Plate Size 4 in x 4 1/2 in
Mounting Height 9 1/2 in

Details

Caster Brake Included No
Caster Load Rating Range Light-Medium Duty
Caster Sub-Type Rigid
Caster Wheel Shape Standard
Caster Wheel/Tread Material Rubber
Load Rating 600 lb
Number of Wheels 1
Caster Max. Temp. 160 Degrees F
Plate Thickness 15/64"
Caster Temp. Range -15 Degrees to 160 Degrees F
Core Color Black
Thread Guards No
Caster Core Material Cast Iron
Caster Wheel Bearings Roller
Caster Temp. Range Available No
Extended Lead No
Plate Caster Bolt Hole Pattern B
Durometer 85 Shore A
Caster Product Group Rigid Caster
Caster Plate Hole Pattern B
Caster Min. Temp. -15 Degrees F
Wheel Color Black
Caster Plate Thickness 15/64"
Non-Marking No
Caster Swivel Lock Type No Lock Included
Standards ANSI/ICWM
Frame Material Steel
Frame Finish Zinc Plated
Caster Frame Material Steel
Outside Bolt Hole Spacing 2-5/8 in x 3-5/8 in
Inside Bolt Hole Spacing 3 in x 3 in
Item Standard Plate Caster
Caster Brake Type No Brake Included
Wheel Core Material Cast Iron
Number of Mounting Holes 4
Includes Thread Guards No
Swivel Lock Type No Lock Included
Wheel/Tread Hardness 85 Shore A
Swivel Construction Kingpinless
Tread Shape Standard
Mounting Plate Bolt Hole Pattern B
Load Rating Range 300 to 999 lb
Wheel/Tread Hardness Rating Soft
Wheel Bearing Type Roller
Wheel/Tread Material Rubber
Wheel/Tread Color Black

Description

Rigid, Standard Plate Caster, Load Rating 600 lb, Swivel Lock Type No Lock Included, Wheel Dia. 8 in, Wheel Width 2 in, Wheel/Tread Material Rubber, Wheel Core Material Cast Iron, Non-Marking No, Number of Wheels 1, Caster Brake Type No Brake Included, Tread Shape Standard
