Shop ZORO SELECT

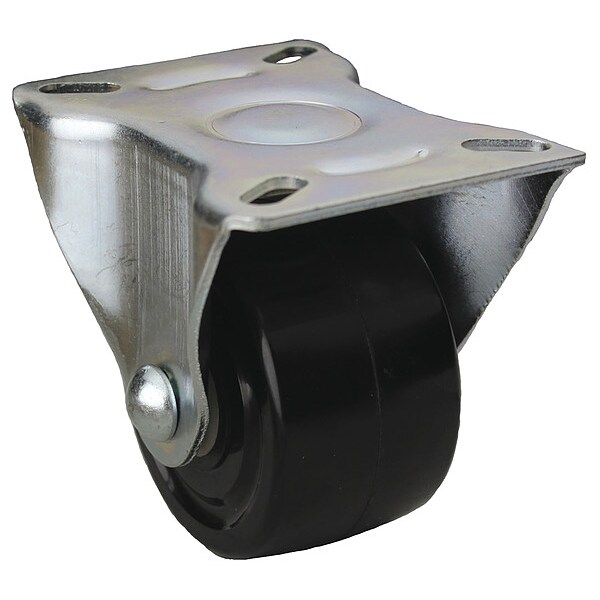

Plate Caster, Rigid, Phenolic, 3 7/8"H

  • Mfr # P10R-PH030R-P6-001

  • Zoro # G2056104

product price:  $19.99
/ea

Key Features

NSF Listed
No
Swivel Construction
Kingpin
Mounting Height
3 7/8 in
Swivel Raceway Type
Single Ball
Swivel Lock Type
No Lock Included
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
P10R-PH030R-P6-001
Zoro #
G2056104
UPC #
-
Country of Origin
China

Dimensions

Mounting Height
3 7/8 in
Mounting Bolt Dia.
5/16 in
Swivel Radius
None- Rigid Caster
Mounting Plate Thickness
1/8 in
Wheel Width
1 3/4 in
Hub Length
1 7/8 in
Overall Height
3-7/8"
Mounting Plate Size
3 1/8 in x 4 1/8 in
Overall Wheel Width
1 3/4 in
Wheel Dia.
3 in
For Axle Dia.
1/2 in
Outside Slot Spacing - Width
2.375 in
Inside Slot Spacing - Length
3 in
Inside Slot Spacing - Width
1.75 in
Outside Slot Spacing - Length
3.375 in
Mounting Plate Length
3 1/8 in

Details

NSF Listed
No
Swivel Construction
Kingpin
Swivel Raceway Type
Single Ball
Swivel Lock Type
No Lock Included
Wheel Core Type
Solid
Inside Bolt Hole Spacing
1-3/4 in x 3 in
Frame Construction
Stamped
Non-Marking
Yes
Swivel Bearing Seal Type
Open
Caster Mounting Type
Plate
Number of Mounting Holes
4
Outside Bolt Hole Spacing
2-3/8 in x 3-3/8 in
Caster Sub-Type
Rigid
Includes Spanner Bushing
Yes
For Surface Type
Grease, Metal Scrap, Oil, Rubber, Steel, Wood
Includes Thread Guards
No
Operating Temperature Range
-20 Degrees to 250 Degrees F
Wheel/Tread Material
Phenolic
Includes Mounting Fasteners
No
Frame Color
Silver
Caster Frame Material
Steel
Load Rating Range
300 to 999 lb
With Toe Plate
No
Wheel Core Material
Phenolic
Standards
ANSI ICWM
Wheel Bearing Material
Steel
Number of Wheels
1
Item
Plate Caster
Wheel/Tread Hardness Rating
Hard
ESD Conductive
No
Application
Business Machines, Electronic Equipment, Laboratory Equipment, Store Fixtures
Core Color
Black
Caster Brake Type
No Brake
Features
Low Rolling Resistance
Wheel Bearing Type
Roller
Wheel/Tread Color
Black
Caster Plate Hole Pattern
A
Series
Pegasus 10 Series
Load Rating
500 lb
Tread Shape
Standard
Frame Finish
Zinc Plated
System of Measurement
Inch
Load Capacity - Maximum
500 lb
Mounting Hole Type
Slot
Wheel Hardness Rating
102 HRE
Mounting Plate Shape
Rectangle
Caster Features
Corrosion-Resistant

Description

Rigid, Plate Caster, Load Rating 500 lb, Swivel Lock Type No Lock Included, Wheel Dia. 3 in, Wheel Width 1 3/4 in, Wheel/Tread Material Phenolic, Wheel Core Material Phenolic, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
