  6. Plate Caster, Rigid, Polyurethane, 9 1/2"H

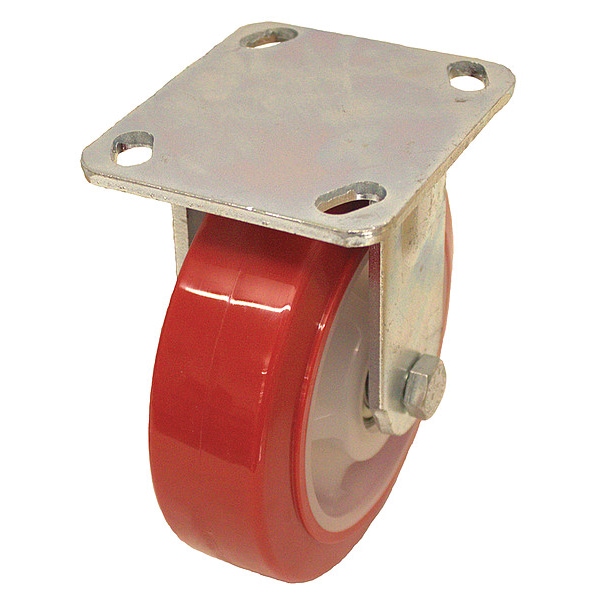

Zoro Select Plate Caster, Rigid, Polyurethane, 9 1/2"H P21R-URPW080K-14 - main

Plate Caster, Rigid, Polyurethane, 9 1/2"H

  • Mfr # P21R-URPW080K-14

  • Zoro # G3576734

product price:  $38.95
/ea

Key Features

Wheel Bearing Type
Ball
Wheel Width
2 in
Swivel Radius
None- Rigid Caster
Caster Temp. Range Available
Yes
Wheel Core Material
Polypropylene
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
P21R-URPW080K-14
Zoro #
G3576734
UPC #
-
Country of Origin
China

Dimensions

Wheel Width
2 in
Swivel Radius
None- Rigid Caster
Mounting Plate Size
4in x 4-1/2in
Mounting Bolt Dia.
3/8 in
Mounting Height
9 1/2 in
Wheel Dia.
8 in
Overall Height
9-1/2in
For Axle Dia.
1/2 in
Overall Wheel Width
2 in
Inside Slot Spacing - Width
2.625 in
Mounting Plate Thickness
1/4in
Outside Slot Spacing - Length
3.625 in
Mounting Plate Length
4 in
Inside Slot Spacing - Length
3 in
Outside Slot Spacing - Width
3 in

Details

Wheel Bearing Type
Ball
Caster Temp. Range Available
Yes
Wheel Core Material
Polypropylene
Extended Lead
No
Caster Frame Material
Steel
Features
Push/Pull Force Reduction
Swivel Lock Type
No Lock Included
Tread
Standard
Load Capacity
880 lb
Inside Bolt Hole Spacing
3 in x 3 in
Core Color
White
Number of Mounting Holes
4
Tread Color
Red
Thread Guards
No
Item
Rigid Caster
Caster Brake Type
No Brake
Non-Marking
Yes
Wheel Color
Red
Wheel/Tread Material
Thermoplastic Rubber
Caster Mounting Type
Plate
Caster Sub-Type
Rigid
Standards
DIN EN 12532
Includes Thread Guards
No
Application
Food Service Racks and Cases, Hotel Equipment, Laundry Trucks, Office Equipment, Stock Carts, Store Fixtures, Utility Carts
Number of Wheels
1
Load Rating
880 lb
Wheel/Tread Hardness Rating
Hard
Load Rating Range
Light-Medium Duty
Frame Finish
Zinc Plated
Tread Shape
Standard
Caster Brake Included
No
Caster Plate Hole Pattern
B
Replacement Wheel
Mfr. No. P-URPW-080x020/050K
Outside Bolt Hole Spacing
2-5/8 in x 3-5/8 in
Wheel/Tread Color
Red
Series
P21 Series
Resistant To
High Chemical Resistance To Many Aggressive Substances
System of Measurement
Inch
ESD Conductive
No
Compatible With
P-URPW-080X020/050K
Load Capacity - Maximum
880 lb
Wheel Hardness Rating
50 Shore D
Caster Features
Corrosion-Resistant, Debris-Resistant, Maintenance Free, Quiet-Roll
Wheel Core Type
Solid
For Surface Type
Asphalt, Ceramic, Grease, Oil, Rubber, Steel, Tile, Vinyl, Wood
Wheel Bearing Material
Steel
Mounting Hole Type
Slot
Mounting Plate Shape
Rectangle
Operating Temperature - Maximum
180 Degrees F
Operating Temperature Range
-15 Degrees To 160 Degrees F
Operating Temperature - Minimum
-20 Degrees F

Description

Rigid, Plate Caster, Load Rating 880 lb, Swivel Lock Type No Lock Included, Wheel Dia. 8 in, Wheel Width 2 in, Wheel/Tread Material Polyurethane, Wheel Core Material Polyolefin, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
