  11. Plate Caster, Rigid, Rubber, 2 in., 110 lb.

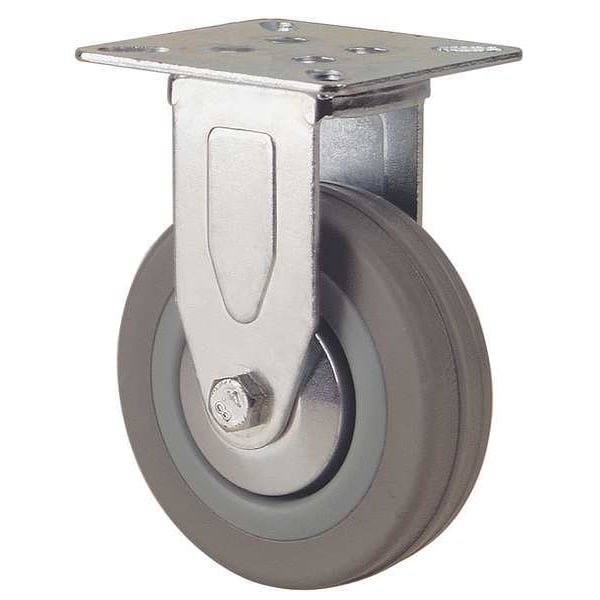

Zoro Select Plate Caster, Rigid, Rubber, 2 in., 110 lb. TFED 050 RN0D - main

Plate Caster, Rigid, Rubber, 2 in., 110 lb.

  • Mfr # TFED 050 RN0D

  • Zoro # G9507836

product price: $3.19
/ea

Key Features

Caster Sub-Type
Rigid
System of Measurement
Inch
Wheel/Tread Material
Rubber
Caster Brake Type
No Brake
Wheel Dia.
2 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
TFED 050 RN0D
Zoro #
G9507836
UPC #
-
Country of Origin
United Kingdom

Dimensions

Wheel Dia.
2 in
Wheel Width
3/4 in
Mounting Height
2 11/16 in
Mounting Plate Size
2 3/8 in x 2 3/8 in
Mounting Plate Thickness
1/16 in
Mounting Bolt Dia.
1/4 in
Overall Height
2-11/16in
Overall Wheel Width
18 mm
Mounting Plate Width
2 3/8 in
Outside Slot Spacing - Length
1.875 in
Inside Slot Spacing - Width
1.5 in
Outside Slot Spacing - Width
1.875 in
For Axle Dia.
6 mm
Inside Slot Spacing - Length
1.5 in
Mounting Plate Length
2 3/8 in

Details

Item
Plate Caster
Caster Sub-Type
Rigid
System of Measurement
Inch
Wheel/Tread Material
Rubber
Caster Brake Type
No Brake
Load Rating
110 lb
Wheel Bearing Type
Plain
Wheel/Tread Color
Gray
Wheel Hardness Rating
80 Shore A
Number of Mounting Holes
4
Tread Shape
Standard
Caster Frame Material
Steel
Core Color
Gray
Non-Marking
No
Number of Wheels
1
Outside Bolt Hole Spacing
1-7/8 in x 1-7/8 in
Inside Bolt Hole Spacing
1-1/2 in x 1-1/2 in
Caster Plate Hole Pattern
B
Caster Temp. Range Available
Yes
Extended Lead
No
Wheel Color
Gray
Application
All Purpose Industrial and Commercial Casters
Standards
ANSI ICWM
Thread Guards
No
Caster Brake Included
No
Frame Finish
Zinc Plated
Wheel/Tread Hardness Rating
Soft
Wheel Core Material
Nylon
Swivel Lock Type
No Lock Included
Swivel Raceway Type
Double/Single Ball
Includes Thread Guards
Yes
Load Rating Range
0 to 299 lb
Load Capacity - Maximum
110 lb
Mounting Plate Shape
Square
Wheel Core Type
Solid
For Surface Type
Ceramic, Tile, Vinyl, Wood
Mounting Hole Type
Slot
Operating Temperature Range
14 Degrees to 104 Degrees F
Operating Temperature - Minimum
15 Degrees F
Operating Temperature - Maximum
100 Degrees F

Description

Rigid, Plate Caster, Load Rating 110 lb, Swivel Lock Type No Lock Included, Wheel Dia. 2 in, Wheel Width 3/4 in, Wheel/Tread Material Rubber, Wheel Core Material Nylon, Non-Marking No, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
