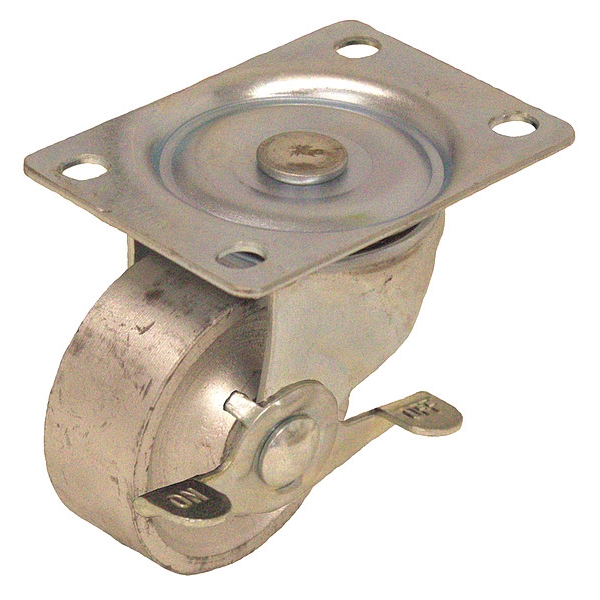

Zoro Select Plate Caster, Swivel, 2-1/2" Wheel dia. P2S-C025G-P-SB - main

Plate Caster, Swivel, 2-1/2" Wheel dia.

  • Mfr # P2S-C025G-P-SB

  • Zoro # G3317187

product price:  $8.75
/ea

Key Features

Outside Bolt Hole Spacing
1-3/4 in x 3 in
Non-Marking
No
Caster Brake Type
Side Brake
Caster Sub-Type
Swivel
Core Color
Gray
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
P2S-C025G-P-SB
Zoro #
G3317187
UPC #
-
Country of Origin
China

Dimensions

Mounting Bolt Dia.
5/16 in
Wheel Width
1 in
Swivel Radius
2 1/2 in
Overall Height
3-1/4in
Wheel Dia.
2 1/2 in
Mounting Height
3 1/4 in
Mounting Plate Size
2-3/4 in x 3-7/8 in
Mounting Plate Thickness
0.079 in
Mounting Plate Length
2 3/4 in
Overall Wheel Width
1 in
For Axle Dia.
5/16 in
Bolt Hole Spacing - Length
3 in
Bolt Hole Spacing - Width
1.75 in

Details

Outside Bolt Hole Spacing
1-3/4 in x 3 in
Non-Marking
No
Caster Brake Type
Side Brake
Caster Sub-Type
Swivel
Core Color
Gray
Caster Frame Material
Steel
Load Rating
175 lb
Standards
ANSI ICWM
Inside Bolt Hole Spacing
1-3/4 in x 3 in
Caster Temp. Range Available
Yes
Features
Pull Forces, Reduced Push
Wheel Color
Silver
Caster Brake Included
Yes
Frame Finish
Zinc Plated
Number of Wheels
1
Caster Plate Hole Pattern
D
Thread Guards
No
Application
Bakery Racks, Furniture Dollies, Laundry Carts
Extended Lead
No
Item
Swivel Caster With Brake
Includes
Pinch Type Brake
Swivel Raceway Type
Single Ball
Swivel Construction
Kingpin
Includes Thread Guards
No
Wheel Core Material
Cast Iron
Swivel Lock Type
No Lock Included
Wheel/Tread Material
Cast Iron
Wheel Bearing Type
Plain
Number of Mounting Holes
4
Tread Shape
Standard
Operating Temperature Range
Up To 800 Degrees F
Load Rating Range
Light Duty
Wheel/Tread Hardness Rating
Extra Hard
Wheel/Tread Color
Silver
System of Measurement
Inch
ESD Conductive
No
Resistant To
High Chemical Resistance To Many Aggressive Substances
Caster Mounting Type
Plate
Tread
Standard
Series
P2 Series
Load Capacity
175 lb
Tread Color
Silver
Load Capacity - Maximum
175 lb
For Surface Type
Grease, Metal Scrap, Oil, Rubber, Steel, Wood
Caster Features
Corrosion-Resistant
Wheel Core Type
Solid
Mounting Hole Type
Hole
Wheel Hardness Rating
145 BHN
Brake Location
Side
Mounting Plate Shape
Rectangle
Operating Temperature - Minimum
-40 Degrees F
Operating Temperature - Maximum
800 Degrees F

Description

Swivel, Plate Caster, Load Rating 175 lb, Swivel Lock Type No Lock Included, Wheel Dia. 2 1/2 in, Wheel Width 1 in, Wheel/Tread Material Iron, Wheel Core Material Iron, Non-Marking Yes, Number of Wheels 1, Caster Brake Type Side Brake, Tread Shape Standard
