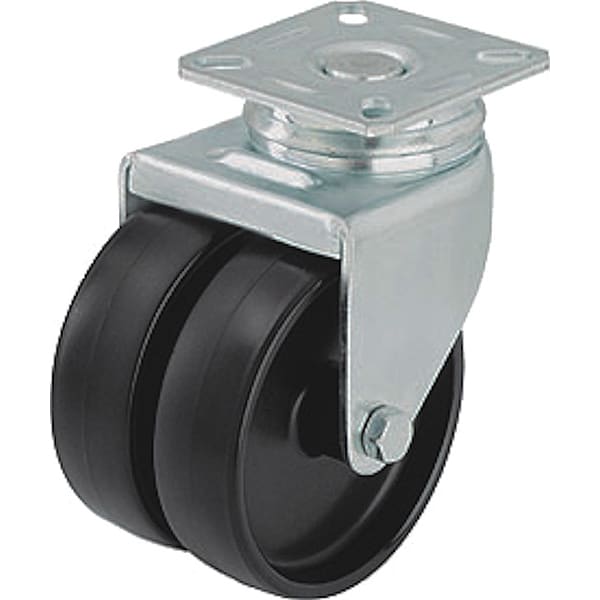

Zoro Select Plate Caster, Swivel, 2 13/16"H LDA-POA 50G - main

Plate Caster, Swivel, 2 13/16"H

  • Mfr # LDA-POA 50G

  • Zoro # G3575510

product price:  $10.55
/ea

Key Features

Wheel/Tread Material
Thermoplastic Rubber
Non-Marking
Yes
Caster Brake Type
No Brake
Wheel Core Material
Nylon
Overall Height
2-51/64in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
LDA-POA 50G
Zoro #
G3575510
UPC #
-
Country of Origin
Germany

Dimensions

Overall Height
2-51/64in
Mounting Height
2 13/16 in
Mounting Plate Size
2-3/8in x 2-3/8in
Wheel Dia.
2 in
Wheel Width
11/16 in
Mounting Bolt Dia.
7/32 in
Swivel Radius
2 1/4 in
Outside Slot Spacing - Length
48 mm
Overall Wheel Width
11/16 in
Mounting Plate Width
60 mm
Mounting Plate Length
60 mm
Outside Slot Spacing - Width
48 mm
Mounting Plate Thickness
5/64in
Bolt Hole Spacing - Length
1.5 in
Inside Slot Spacing - Length
38 mm
For Axle Dia.
6 mm
Inside Slot Spacing - Width
38 mm

Details

Wheel/Tread Material
Thermoplastic Rubber
Non-Marking
Yes
Caster Brake Type
No Brake
Wheel Core Material
Nylon
Wheel Bearing Type
Plain
Extended Lead
No
Swivel Construction
Kingpin
Wheel/Tread Hardness Rating
Hard
Number of Wheels
2
Outside Bolt Hole Spacing
48 mm x 48 mm
Tread
Standard
Includes Thread Guards
No
Caster Sub-Type
Swivel
Swivel Lock Type
No Lock Included
Tread Color
Black
Tread Shape
Standard
Application
Cases, Food Service Racks, Hospital Equipment, Hotel Equipment, Institutional Equipment, Laundry Trucks, Office Equipment, Stock Carts, Store Fixtures, Utility Carts
Caster Mounting Type
Plate
Standards
DIN EN 12530
Caster Temp. Range Available
Yes
Thread Guards
No
System of Measurement
Metric
Swivel Raceway Type
Double Ball
Caster Brake Included
No
Number of Mounting Holes
4
Frame Finish
Zinc Plated
Load Rating Range
Light-Duty
Caster Plate Hole Pattern
A
Inside Bolt Hole Spacing
38 mm x 38 mm
Wheel Color
Black
Load Rating
175 lb
Features
Floor Protective, Push/Pull Force Reduction
Replacement Wheel
Mfr. No. POA 50/8G
Caster Frame Material
Steel
Item
Swivel Caster
Core Color
Black
Wheel/Tread Color
Black
Load Capacity
80 kg
Resistant To
High Chemical Resistance To Many Aggressive Substances
ESD Conductive
No
Series
LDA Series
Load Capacity - Maximum
175 lb
Wheel Hardness Rating
70 Shore D
Compatible With
POA 50/8G
Mounting Plate Shape
Rectangle
Mounting Hole Type
Hole
For Surface Type
Asphalt, Ceramic, Grease, Oil, Rubber, Steel, Tile, Vinyl, Wood
Wheel Core Type
Solid
Caster Features
Corrosion-Resistant
Operating Temperature Range
-25 Degrees To 80 Degrees C
Operating Temperature - Minimum
-15 Degrees F
Operating Temperature - Maximum
160 Degrees F

Description

Swivel, Plate Caster, Load Rating 175 lb, Swivel Lock Type No Lock Included, Wheel Dia. 2 in, Wheel Width 11/16 in, Wheel Core Material Nylon, Non-Marking Yes, Number of Wheels 2, Caster Brake Type No Brake, Tread Shape Standard
