Shop ZORO SELECT

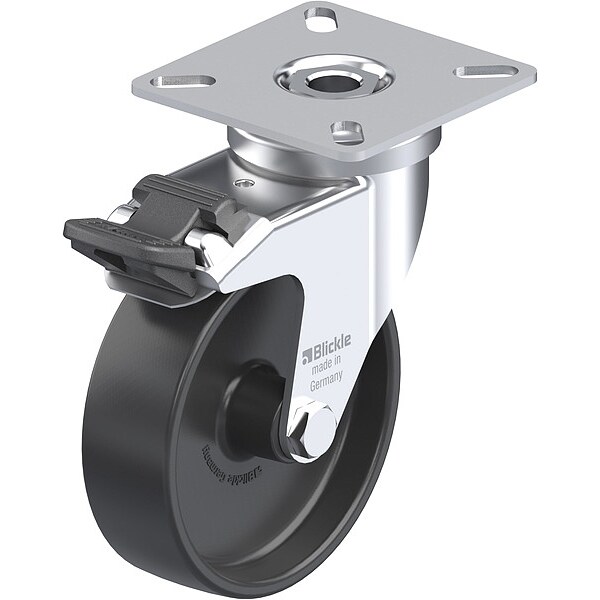

Plate Caster, Swivel, 3 15/16"H

  • Mfr # LPA-POA 75G-FI

  • Zoro # G914810976

product price:
$
20.45
/ea

Key Features

Caster Brake Type
Total Lock
Wheel Dia.
76 mm
Wheel Width
23 mm
Mounting Height
100 mm
Caster Mounting Type
Plate
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
LPA-POA 75G-FI
Zoro #
G914810976
UPC #
-
Country of Origin
Germany

Dimensions

Wheel Dia.
76 mm
Wheel Width
23 mm
Mounting Height
100 mm
Mounting Bolt Dia.
6 mm
For Axle Dia.
6 mm
Mounting Plate Thickness
2 mm
Mounting Plate Length
60 mm
Inside Slot Spacing - Length
38 mm
Inside Slot Spacing - Width
38 mm
Hub Length
28 mm
Outside Slot Spacing - Length
48 mm
Overall Wheel Width
23 mm
Mounting Plate Width
60 mm
Outside Slot Spacing - Width
48 mm

Details

Item
Plate Caster
Caster Brake Type
Total Lock
Caster Mounting Type
Plate
Wheel Bearing Type
Plain
Wheel/Tread Color
Black
Number of Mounting Holes
4
Caster Frame Material
Steel
Non-Marking
Yes
Number of Wheels
1
System of Measurement
Metric
Frame Finish
Zinc Plated
Features
Minimum Swivel Head Play and Smooth Rolling Characteristic and Increased Service Life Due to the Special Dynamic Blickle Riveting Process
Swivel Construction
Kingpin
Caster Sub-Type
Swivel
Series
POA
Core Color
Black
Caster Features
Corrosion-Resistant
Tread Shape
Standard
For Surface Type
Asphalt, Ceramic, Grease, Oil, Rubber, Steel, Tile, Vinyl, Wood
Frame Construction
Pressed
Mounting Hole Type
Slot
Brake Location
Rear
Wheel Hardness Rating
70 Shore D
Includes Thread Guards
No
Mounting Plate Shape
Rectangle
Operating Temperature - Minimum
-25 Degrees C
Swivel Raceway Type
Double Ball
Operating Temperature - Maximum
80 Degrees C
Load Capacity - Maximum
165 lb
Wheel Core Type
Solid

Description

Swivel, Plate Caster, Wheel Dia. 76 mm, Wheel Width 23 mm, Non-Marking Yes, Number of Wheels 1, Caster Brake Type Total Lock, Tread Shape Standard
