  11. Plate Caster, Swivel, Phenolic, 11 1/2"H

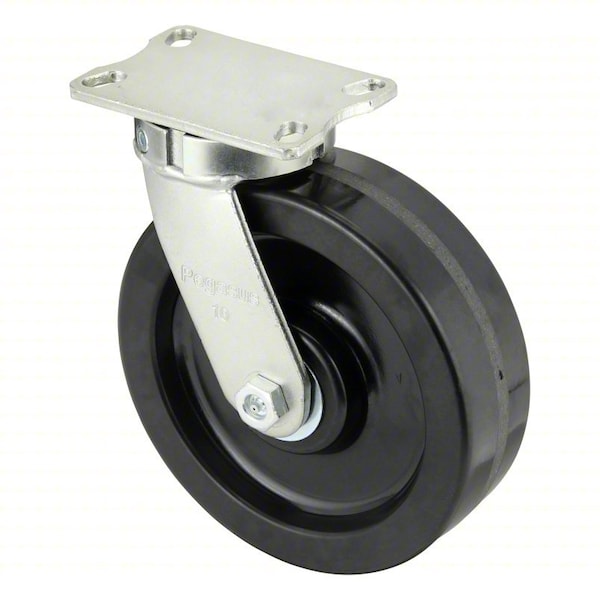

Zoro Select Plate Caster, Swivel, Phenolic, 11 1/2"H P27S-PH100R-16 - main

Plate Caster, Swivel, Phenolic, 11 1/2"H

  • Mfr # P27S-PH100R-16

  • Zoro # G2974922

product price: $83.59
/ea
Free Shipping & Returns

Key Features

System of Measurement
Inch
Wheel/Tread Material
Phenolic
Caster Brake Type
No Brake
Wheel Dia.
10 in
Wheel Width
3 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
P27S-PH100R-16
Zoro #
G2974922
UPC #
-
Country of Origin
China

Dimensions

Wheel Dia.
10 in
Wheel Width
3 in
Mounting Height
11 1/2 in
Mounting Plate Size
4 1/2 in x 6 1/4 in
Mounting Plate Thickness
5/16 in
Mounting Bolt Dia.
1/2 in
Overall Height
11-1/2in
Overall Wheel Width
3 in
Swivel Radius
8 3/8 in
For Axle Dia.
3/4 in
Hub Length
3 1/4 in
Mounting Plate Width
4 1/2 in
Bolt Hole Spacing - Length
2.438 in
Inside Slot Spacing - Length
4.938 in
Outside Slot Spacing - Length
5.25 in
Outside Slot Spacing - Width
3.375 in
Mounting Plate Length
6 1/4 in
Inside Slot Spacing - Width
2.438 in

Details

Item
Plate Caster
Caster Sub-Type
Swivel
System of Measurement
Inch
Wheel/Tread Material
Phenolic
Caster Brake Type
No Brake
Load Rating
2900 lb
Caster Mounting Type
Plate
Wheel Bearing Type
Roller
Wheel/Tread Color
Black
Wheel Hardness Rating
102 HRE
Number of Mounting Holes
4
Tread Shape
Standard
Caster Frame Material
Steel
Core Color
Black
Non-Marking
Yes
Number of Wheels
1
Outside Bolt Hole Spacing
3-3/8 in x 5-1/4 in
Inside Bolt Hole Spacing
2-7/16 in x 4-15/16 in
Caster Plate Hole Pattern
A
Wheel Core Type
Solid
Standards
ANSI ICWM
With Toe Plate
No
NSF Listed
No
Frame Finish
Zinc Plated
Application
Dollies, Floor Trucks, Material Handling Containers, Platform Trucks, Shop Carts, Warehouse Trucks, Waste Disposal Trucks
Swivel Lock Type
No Lock Included
Includes Thread Guards
No
Swivel Construction
Kingpinless
Features
Low Rolling Resistance
Swivel Bearing Seal Type
Open
Operating Temperature Range
-20 Degrees to 250 Degrees F
Swivel Lead
2 1/4 in
Wheel Core Material
Phenolic
Series
Pegasus 27 Series
Replacement Wheel
489D36
Includes Mounting Fasteners
No
Frame Color
Silver
Wheel Bearing Material
Steel
Swivel Raceway Type
Double Ball
ESD Conductive
No
Wheel/Tread Hardness Rating
Hard
For Surface Type
Grease, Metal Scrap, Oil, Rubber, Steel, Wood
Frame Construction
Stamped
Load Rating Range
1000 to 2999 lb
Includes Spanner Bushing
Yes
Load Capacity - Maximum
2,900 lb
Mounting Hole Type
Slot
Mounting Plate Shape
Rectangle
Caster Features
Corrosion-Resistant

Description

Swivel, Plate Caster, Load Rating 2900 lb, Swivel Lock Type No Lock Included, Wheel Dia. 10 in, Wheel Width 3 in, Wheel/Tread Material Phenolic, Wheel Core Material Phenolic, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
