Zoro Select Plate Caster, Swivel, Phenolic, 3 7/8"H P10S-PH030R-14-001 - main

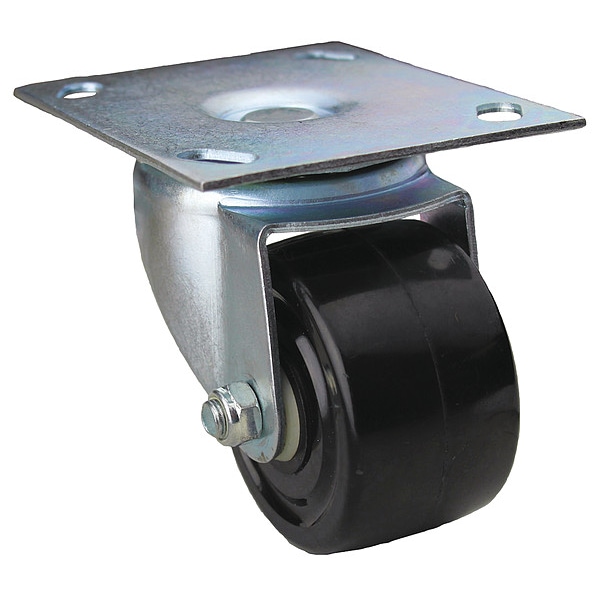

Plate Caster, Swivel, Phenolic, 3 7/8"H

  • Mfr # P10S-PH030R-14-001

  • Zoro # G2056059

product price:  $16.39
/ea

Key Features

Frame Finish
Zinc Plated
Overall Height
3-7/8in
Outside Bolt Hole Spacing
3 in x 3 in
Swivel Lock Type
No Lock Included
Frame Construction
Stamped
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
P10S-PH030R-14-001
Zoro #
G2056059
UPC #
-
Country of Origin
China

Dimensions

Overall Height
3-7/8in
Mounting Plate Size
3 3/4 in x 4 5/8 in
Swivel Radius
2 1/4 in
Overall Wheel Width
1 3/4 in
Wheel Width
1 3/4 in
Mounting Height
3 7/8 in
Wheel Dia.
3 in
Hub Length
1 7/8 in
For Axle Dia.
1/2 in
Mounting Bolt Dia.
3/8 in
Mounting Plate Thickness
1/8 in
Inside Slot Spacing - Length
3 in
Outside Slot Spacing - Length
3.625 in
Outside Slot Spacing - Width
3 in
Inside Slot Spacing - Width
2.625 in
Mounting Plate Length
4 1/2 in
Mounting Plate Width
4 in

Details

Frame Finish
Zinc Plated
Outside Bolt Hole Spacing
3 in x 3 in
Caster Sub-Type
Swivel
Swivel Lock Type
No Lock Included
Frame Construction
Stamped
Wheel/Tread Material
Phenolic
Series
Pegasus 10 Series
Load Rating
500 lb
Wheel Bearing Material
Steel
Swivel Raceway Type
Double Ball
Item
Plate Caster
Inside Bolt Hole Spacing
2-5/8 in x 3-5/8 in
Includes Spanner Bushing
Yes
Swivel Lead
3/4 in
Wheel Core Type
Solid
Number of Mounting Holes
4
Caster Brake Type
No Brake
NSF Listed
No
Caster Mounting Type
Plate
Features
Low Rolling Resistance
Frame Color
Silver
Application
Business Machines, Electronic Equipment, Laboratory Equipment, Store Fixtures
Operating Temperature Range
-20 Degrees to 250 Degrees F
Wheel Core Material
Phenolic
Wheel/Tread Hardness Rating
Hard
Wheel Bearing Type
Roller
ESD Conductive
No
Non-Marking
Yes
With Toe Plate
No
Caster Plate Hole Pattern
B
Load Rating Range
300 to 999 lb
Includes Mounting Fasteners
No
Includes Thread Guards
No
Tread Shape
Standard
Caster Frame Material
Steel
Number of Wheels
1
Standards
ANSI ICWM
Swivel Bearing Seal Type
Open
Core Color
Black
Wheel/Tread Color
Black
Swivel Construction
Kingpin
For Surface Type
Grease, Metal Scrap, Oil, Rubber, Steel, Wood
System of Measurement
Inch
Load Capacity - Maximum
500 lb
Wheel Hardness Rating
102 HRE
Mounting Plate Shape
Rectangle
Caster Features
Corrosion-Resistant
Mounting Hole Type
Slot

Description

Swivel, Plate Caster, Load Rating 500 lb, Swivel Lock Type No Lock Included, Wheel Dia. 3 in, Wheel Width 1 3/4 in, Wheel/Tread Material Phenolic, Wheel Core Material Phenolic, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
