Zoro Select Plate Caster, Swivel, Phenolic, 6 1/2"H P21S-PH050R-14-CB - main

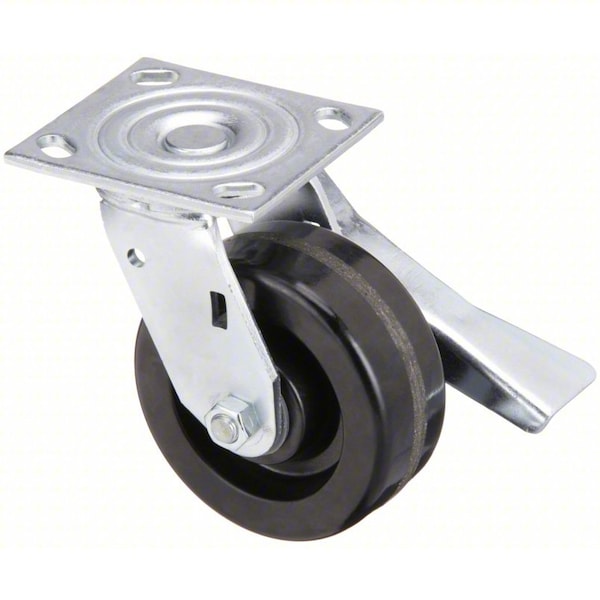

Plate Caster, Swivel, Phenolic, 6 1/2"H

  • Mfr # P21S-PH050R-14-CB

  • Zoro # G315503316

product price:  $33.19
/ea

Key Features

Core Color
Black
Swivel Lock Type
No Lock Included
Frame Color
Silver
Caster Frame Material
Steel
Wheel Bearing Material
Steel
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
P21S-PH050R-14-CB
Zoro #
G315503316
UPC #
-
Country of Origin
China

Dimensions

Swivel Radius
6 3/8 in
Overall Height
6-1/2"
Mounting Plate Thickness
1/4 in
Wheel Width
2 in
Mounting Bolt Dia.
3/8 in
Wheel Dia.
5 in
For Axle Dia.
1/2 in
Hub Length
2 3/16 in
Overall Wheel Width
2 in
Mounting Plate Size
4 in x 4 1/2 in
Mounting Height
6 1/2 in

Details

Core Color
Black
Swivel Lock Type
No Lock Included
Frame Color
Silver
Caster Frame Material
Steel
Wheel Bearing Material
Steel
System of Measurement
Inch
Includes Mounting Fasteners
No
Includes Spanner Bushing
Yes
With Toe Plate
No
Wheel/Tread Material
Phenolic
Wheel Core Type
Solid
Swivel Raceway Type
Double Ball
Application
Dollies, Floor Trucks, Material Handling Containers, Platform Trucks, Shop Carts, Warehouse Trucks, Waste Disposal Trucks
Brake Location
Right Side
Load Rating
1000 lb
Caster Mounting Type
Plate
NSF Listed
No
Wheel Bearing Type
Ball
Non-Marking
Yes
ESD Conductive
No
Includes Thread Guards
No
Frame Finish
Zinc Plated
Tread Shape
Standard
Series
Pegasus 21 Series
Caster Brake Type
Side Brake
Wheel Core Material
Phenolic
Replacement Wheel
5VF72
Frame Construction
Stamped
Outside Bolt Hole Spacing
3 in x 3 in
Inside Bolt Hole Spacing
2-5/8 in x 3-5/8 in
Load Capacity - Maximum
1,000 lb
Swivel Lead
1 9/16 in
Standards
ANSI ICWM
Caster Sub-Type
Swivel
Features
Low Rolling Resistance
For Surface Type
Concrete
Wheel/Tread Color
Black
Swivel Construction
Kingpin
Wheel/Tread Hardness Rating
Hard
Swivel Bearing Seal Type
Open
Caster Plate Hole Pattern
B
Wheel Type
Flat-Free
Operating Temperature Range
-20 Degrees to 250 Degrees F
Item
Plate Caster
Number of Mounting Holes
4
Number of Wheels
1
Load Rating Range
1000 to 2999 lb
Wheel Hardness Rating
Rockwell 102E

Description

Swivel, Plate Caster, Load Rating 1000 lb, Swivel Lock Type No Lock Included, Wheel Dia. 5 in, Wheel Width 2 in, Wheel/Tread Material Phenolic, Wheel Core Material Phenolic, Non-Marking Yes, Number of Wheels 1, Caster Brake Type Side Brake, Tread Shape Standard
