  11. Plate Caster, Swivel, Phenolic, 7 1/2"H

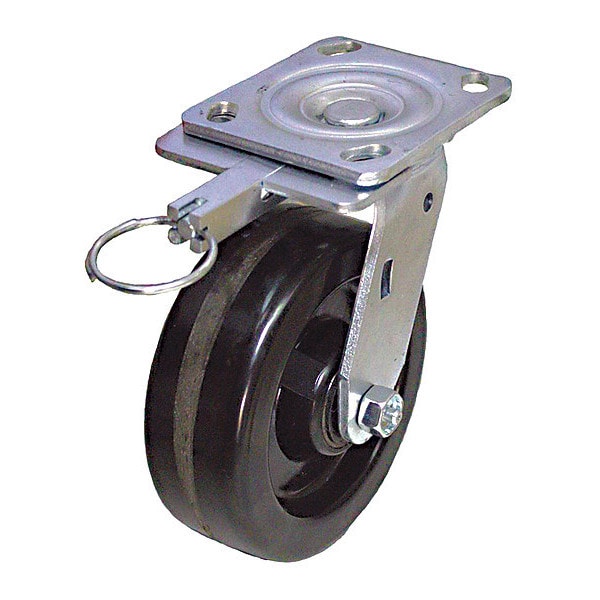

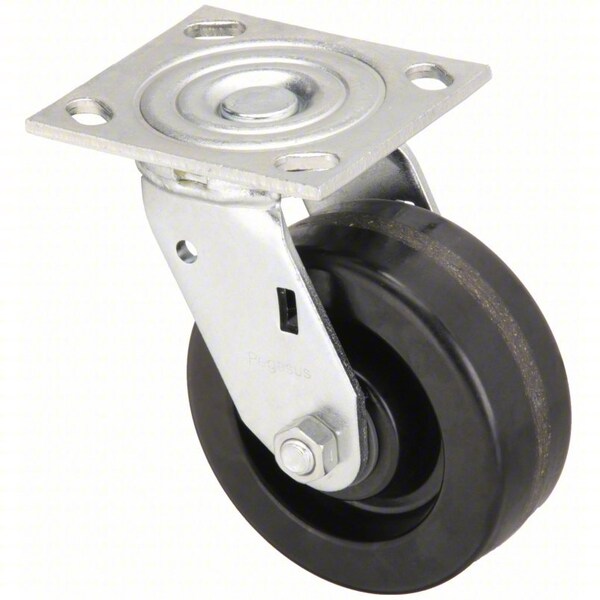

Zoro Select Plate Caster, Swivel, Phenolic, 7 1/2"H P21S-PH060R-14-DL - main

Plate Caster, Swivel, Phenolic, 7 1/2"H

  • Mfr # P21S-PH060R-14-DL

  • Zoro # G3576560

product price: $35.59
/ea

Key Features

Caster Sub-Type
Swivel
System of Measurement
Inch
Wheel/Tread Material
Thermoplastic Rubber
Caster Brake Type
Directional Lock
Wheel Dia.
6 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
P21S-PH060R-14-DL
Zoro #
G3576560
UPC #
-
Country of Origin
China

Dimensions

Wheel Dia.
6 in
Wheel Width
2 in
Mounting Height
7 1/2 in
Mounting Plate Size
4in x 4-1/2in
Mounting Plate Thickness
1/4in
Mounting Bolt Dia.
3/8 in
Overall Height
7-1/2in
Swivel Radius
5 in
Mounting Plate Width
4 in
For Axle Dia.
1/2 in
Outside Slot Spacing - Width
3 in
Overall Wheel Width
2 in
Inside Slot Spacing - Length
3 in
Inside Slot Spacing - Width
2.625 in
Mounting Plate Length
4 1/2 in
Outside Slot Spacing - Length
3.625 in

Details

Item
Swivel Caster with Four Position Swivel Lock
Caster Sub-Type
Swivel
System of Measurement
Inch
Wheel/Tread Material
Thermoplastic Rubber
Caster Brake Type
Directional Lock
Load Rating
1200 lb
Caster Mounting Type
Plate
Wheel Bearing Type
Roller
Wheel/Tread Color
Black
Wheel Hardness Rating
Rockwell 102E
Number of Mounting Holes
4
Tread Shape
Standard
Caster Frame Material
Steel
Core Color
Black
Non-Marking
Yes
Number of Wheels
1
Outside Bolt Hole Spacing
2-5/8 in x 3-5/8 in
Inside Bolt Hole Spacing
3 in x 3 in
Caster Plate Hole Pattern
B
Extended Lead
No
Tread
Standard
Swivel Lock Type
Directional Lock
Caster Brake Included
No
Thread Guards
No
Wheel Core Material
Phenolic
Wheel/Tread Hardness Rating
Hard
Frame Finish
Zinc Plated
Features
Push/Pull Force Reduction
Includes Thread Guards
No
Replacement Wheel
Mfr. No. P-PH-060x020/050R
Wheel Color
Black
Includes
4-Position Directional Lock
Load Rating Range
Medium-Duty
Tread Color
Black
Swivel Raceway Type
Double Ball
Caster Temp. Range Available
Yes
Swivel Construction
Kingpin
Standards
RoHS, ICWM, NSF
Application
Retail, Industrial, Commercial
Series
P21 Series
Resistant To
High Chemical Resistance To Many Aggressive Substances
Load Capacity
1200 lb
ESD Conductive
No
Compatible With
P-PH-060X020/050R
Load Capacity - Maximum
1,200 lb
Wheel Bearing Material
Steel
Wheel Core Type
Solid
Caster Features
Corrosion-Resistant
For Surface Type
Grease, Metal Scrap, Oil, Rubber, Steel, Wood
Mounting Plate Shape
Rectangle
Mounting Hole Type
Slot
Operating Temperature Range
-40 Degrees To 250 Degrees F
Operating Temperature - Maximum
250 Degrees F
Operating Temperature - Minimum
-15 Degrees F

Description

Swivel, Plate Caster, Load Rating 1200 lb, Swivel Lock Type Directional Lock, Wheel Dia. 6 in, Wheel Width 2 in, Wheel/Tread Material Phenolic, Wheel Core Material Phenolic, Non-Marking Yes, Number of Wheels 1, Caster Brake Type Directional Lock, Tread Shape Standard
