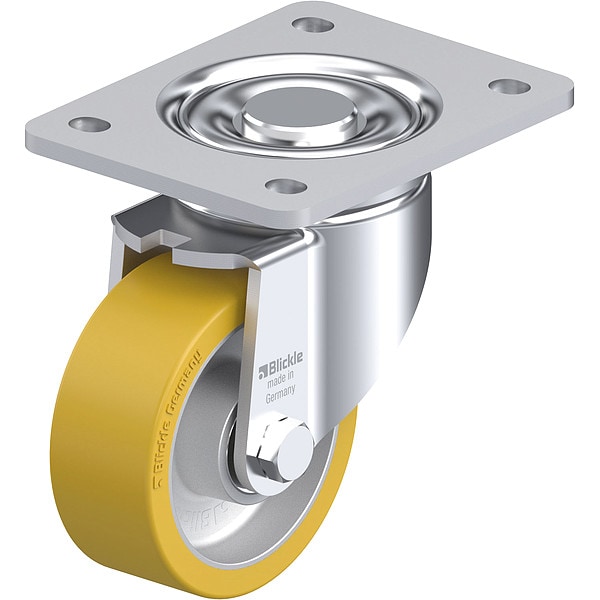

Plate Caster, Swivel, Polyurethane, 5 1/2"H

  • Mfr # LH-ALTH 100K-3
  • Zoro # G714810947
product price:
$
206.99
/ea
Free Shipping & Returns

Key Features

Mounting Height
140 mm
Number of Mounting Holes
4
Number of Wheels
1
Mounting Bolt Dia.
10 mm
Frame Finish
Zinc Plated
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
LH-ALTH 100K-3
Zoro #
G714810947
UPC #
-
Country of Origin
Germany

Dimensions

Mounting Height
140 mm
Mounting Bolt Dia.
10 mm
Wheel Width
40 mm
Wheel Dia.
127 mm
Mounting Plate Thickness
6 mm
Inside Slot Spacing - Length
104.775 mm
Mounting Plate Length
110 mm
For Axle Dia.
10 mm
Outside Slot Spacing - Length
104.775 mm
Inside Slot Spacing - Width
75.414 mm
Hub Length
45 mm
Overall Wheel Width
40 mm
Outside Slot Spacing - Width
80.167 mm
Mounting Plate Width
110 mm
Fits Chest Size
Non-Staining, Particularly Resistant to Shocks and Impact Due to Four Specially-Shaped, Hardened Bearing Seats

Details

Number of Mounting Holes
4
Number of Wheels
1
Frame Finish
Zinc Plated
Core Color
Silver
System of Measurement
Metric
Series
ALTH
Features
Non-Staining, Particularly Resistant to Shocks and Impact Due to Four Specially-Shaped, Hardened Bearing Seats
Item
Plate Caster
Non-Marking
Yes
Swivel Construction
Kingpin
Caster Brake Type
No Brake
Caster Frame Material
Steel
Wheel/Tread Color
Beige
Caster Sub-Type
Swivel
Caster Mounting Type
Plate
Includes Thread Guards
No
Wheel Core Material
Aluminum
Swivel Raceway Type
Double Ball
Wheel Bearing Material
Steel
Wheel Hardness Rating
92 Shore A
Wheel Bearing Type
Ball
Operating Temperature - Minimum
-20 Degrees C
Load Capacity - Maximum
770 lb
Wheel Core Type
Solid
For Surface Type
Asphalt, Ceramic, Grease, Oil, Rubber, Steel, Tile, Vinyl, Wood
Mounting Plate Shape
Rectangle
Frame Construction
Pressed
Caster Features
Corrosion-Resistant, Debris-Resistant, Maintenance Free, Quiet-Roll
Wheel/Tread Material
Polyurethane
Tread Shape
Standard
Mounting Hole Type
Slot
Operating Temperature - Maximum
70 Degrees C
Product Type
Plate Caster

Description

Swivel, Plate Caster, Wheel Dia. 127 mm, Wheel Width 40 mm, Wheel/Tread Material Polyurethane, Wheel Core Material Aluminum, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
