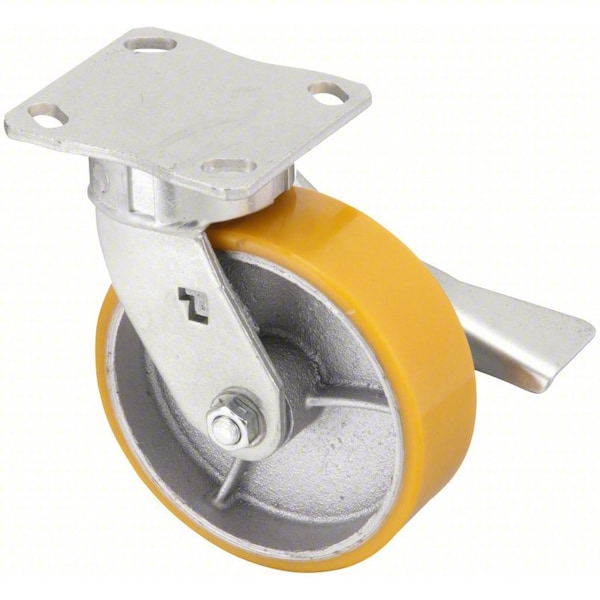

Plate Caster, Swivel, Polyurethane, 7 1/2"H

  • Mfr # P25S-UY060R-14-CB-DL
  • Zoro # G8518218
product price:
$
76.15
/ea

Key Features

Swivel Radius
None- Rigid Caster
Includes
Directional Lock, Wheel Brake
Wheel Dia.
6 in
Load Rating
1200 lb
Number of Wheels
1
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
P25S-UY060R-14-CB-DL
Zoro #
G8518218
UPC #
-
Country of Origin
China
Includes
Directional Lock, Wheel Brake
Load Rating
1200 lb
Number of Wheels
1
Extended Lead
No
Standards
DIN EN 12532
Features
Floor Protection
Core Color
Silver
Wheel Color
Yellow
Outside Bolt Hole Spacing
2-5/8 in x 3-5/8 in
Application
Bakery Racks, Conveyor Drawn Tow Trucks, Dough Troughs, Production Dollies
Item
Plate Caster
Caster Temp. Range Available
Yes
Caster Brake Included
Yes
Caster Brake Type
Directional Lock, Side Brake
Non-Marking
Yes
Thread Guards
No
Replacement Wheel
Mfr. No. P-UY-060X020/050R
Caster Plate Hole Pattern
B
Caster Sub-Type
Swivel
Inside Bolt Hole Spacing
3 in x 3 in
Caster Frame Material
Steel
Frame Finish
Zinc Plated
Load Rating Range
Medium-Duty
Tread Shape
Standard
Wheel Core Material
Iron
Swivel Construction
Kingpinless
Wheel Bearing Type
Roller
Number of Mounting Holes
4
Wheel/Tread Hardness Rating
Firm
Swivel Lock Type
Directional Lock
Swivel Raceway Type
Single Ball
Includes Thread Guards
No
Wheel/Tread Material
Polyurethane
Wheel/Tread Color
Yellow
System of Measurement
Inch
Series
P25 Series
ESD Conductive
No
Caster Mounting Type
Plate
Tread
Standard
Load Capacity
1200 lb
Tread Color
Yellow
Resistant To
High Chemical Resistance To Many Aggressive Substances
Wheel Hardness Rating
92 Shore A
Load Capacity - Maximum
1,250 lb
Compatible With
P-UY-060X020/050R
Brake Location
Side
For Surface Type
Asphalt, Ceramic, Grease, Oil, Rubber, Steel, Tile, Vinyl, Wood
Caster Features
Corrosion-Resistant, Debris-Resistant, Maintenance Free, Quiet-Roll
Mounting Plate Shape
Rectangle
Wheel Core Type
Solid
Wheel Bearing Material
Steel
Mounting Hole Type
Slot
Operating Temperature - Minimum
-15 Degrees F
Operating Temperature Range
-15 Degrees To 160 Degrees F
Operating Temperature - Maximum
180 Degrees F

Description

Swivel, Plate Caster, Load Rating 1200 lb, Swivel Lock Type Directional Lock, Wheel Dia. 6 in, Wheel Width 2 in, Wheel/Tread Material Polyurethane, Wheel Core Material Iron, Non-Marking Yes, Number of Wheels 1, Caster Brake Type Directional Lock, Side Brake, Tread Shape Standard
