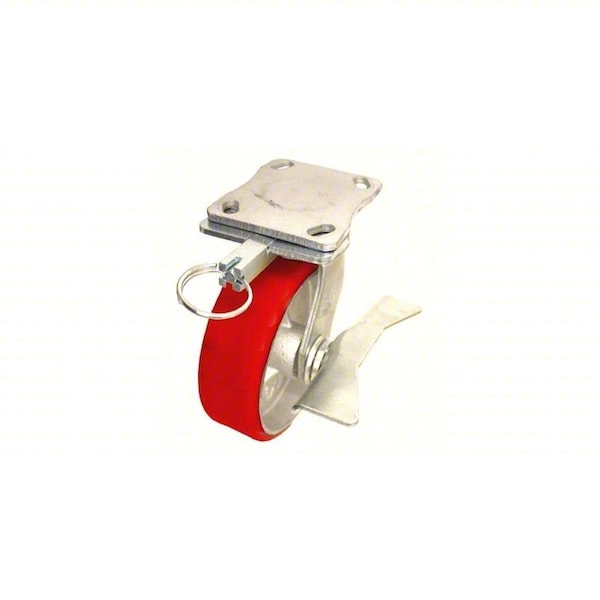

Plate Caster, Swivel, Polyurethane, 9 1/2"H

  • Mfr # P25S-UY080KP-16-WB-DL-001

  • Zoro # G3317467

product price:
$
87.49
/ea

Key Features

Wheel Dia.
8 in
Mounting Bolt Dia.
1/2 in
Thread Guards
No
Caster Sub-Type
Swivel
Load Rating
1250 lb
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
P25S-UY080KP-16-WB-DL-001
Zoro #
G3317467
UPC #
-
Country of Origin
China

Dimensions

Wheel Dia.
8 in
Mounting Bolt Dia.
1/2 in
Wheel Width
2 in
Overall Height
9-1/2"
Swivel Radius
6 3/8 in
Mounting Plate Size
4-1/2 in x 6-1/4 in
Mounting Height
9 1/2 in
Inside Slot Spacing - Width
2.438 in
Mounting Plate Length
4 1/2 in
For Axle Dia.
1/2 in
Inside Slot Spacing - Length
4.938 in
Overall Wheel Width
2 in
Mounting Plate Thickness
1/4 in
Outside Slot Spacing - Length
5.25 in

Details

Thread Guards
No
Caster Sub-Type
Swivel
Load Rating
1250 lb
Outside Bolt Hole Spacing
3-3/8 in x 5-1/4 in
Wheel Color
Yellow
Caster Temp. Range Available
Yes
Extended Lead
No
Standards
ANSI ICWM
Application
Dollies, Dough Troughs, Platform Trucks, Scrap Metal Carriers, Tooling Fixtures, Tow Lines, Utility Carts
Caster Brake Included
Yes
Features
Floor Protective
Core Color
Silver
Inside Bolt Hole Spacing
2-7/16 in x 4-15/16 in
Number of Wheels
1
Item
Plate Caster
Frame Finish
Zinc Plated
Caster Frame Material
Steel
Non-Marking
Yes
Caster Plate Hole Pattern
A
Caster Brake Type
Directional Lock, Side Brake
Replacement Wheel
Mfr. No. P-UY-080X020/050KP
Includes
Strap Type Brake, 4-Position Directional Lock
Swivel Raceway Type
Single Ball
Swivel Lock Type
4-Position Directional Lock
Number of Mounting Holes
4
Tread Shape
Standard
Wheel/Tread Hardness Rating
Firm
Swivel Construction
Kingpinless
Load Rating Range
Medium Duty
Wheel Core Material
Iron
Wheel Bearing Type
Ball
Includes Thread Guards
No
Wheel/Tread Material
Polyurethane
Wheel/Tread Color
Red
System of Measurement
Inch
Tread
Standard
Caster Mounting Type
Plate
Load Capacity
1500 lb
ESD Conductive
No
Resistant To
High Chemical Resistance To Many Aggressive Substances
Series
P25 Series
Tread Color
Yellow
Compatible With
P-UY-080X020/050KP
Wheel Hardness Rating
92 Shore A
Load Capacity - Maximum
1,500 lb
Wheel Bearing Material
Steel
Mounting Plate Shape
Rectangle
Wheel Core Type
Solid
Mounting Hole Type
Slot
Brake Location
Side
For Surface Type
Asphalt, Ceramic, Grease, Oil, Rubber, Steel, Tile, Vinyl, Wood
Caster Features
Corrosion-Resistant, Debris-Resistant, Maintenance Free, Quiet-Roll
Operating Temperature - Minimum
-20 Degrees F
Operating Temperature - Maximum
180 Degrees F
Operating Temperature Range
-15 Degrees To 160 Degrees F

Description

Swivel, Plate Caster, Load Rating 1250 lb, Swivel Lock Type 4-Position Directional Lock, Wheel Dia. 8 in, Wheel Width 2 in, Wheel/Tread Material Polyurethane, Wheel Core Material Iron, Non-Marking Yes, Number of Wheels 1, Caster Brake Type Directional Lock, Side Brake, Tread Shape Standard
