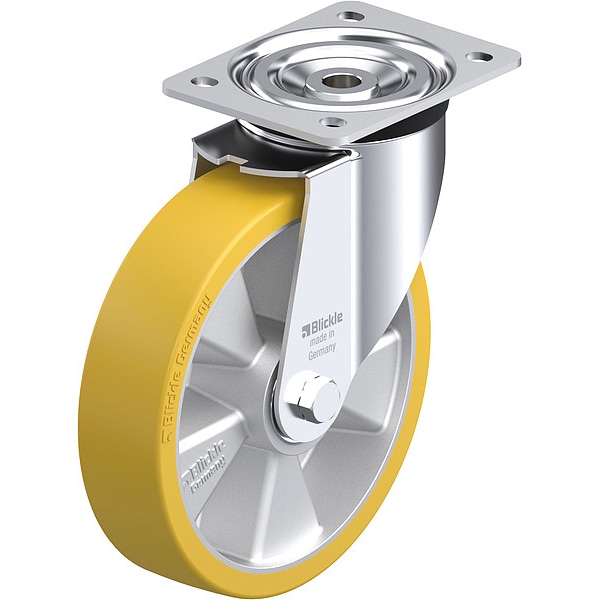

Plate Caster, Swivel, Polyurethane, 9 1/4"H

  • Mfr # L-ALTH 200K

  • Zoro # G114810929

product price:
$
233.76
/ea
Free Shipping & Returns

Key Features

Caster Sub-Type
Swivel
Caster Frame Material
Steel
Mounting Height
9 1/4 in
System of Measurement
Inch
Series
ALTH
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
L-ALTH 200K
Zoro #
G114810929
UPC #
-
Country of Origin
Germany

Dimensions

Mounting Height
9 1/4 in
Mounting Bolt Dia.
11 mm
Wheel Dia.
8 in
Wheel Width
2 in
For Axle Dia.
12 mm
Mounting Plate Width
4 5/16 in
Mounting Plate Length
5 1/2 in
Outside Slot Spacing - Width
3.156 in
Mounting Plate Thickness
5/32 in
Outside Slot Spacing - Length
4.125 in
Overall Wheel Width
2 in
Hub Length
65 mm
Inside Slot Spacing - Width
2.969 in
Inside Slot Spacing - Length
4.125 in

Details

Caster Sub-Type
Swivel
Caster Frame Material
Steel
System of Measurement
Inch
Item
Plate Caster
Series
ALTH
Frame Finish
Zinc Plated
Core Color
Silver
Wheel/Tread Color
Beige
Non-Marking
Yes
Features
Minimum Swivel Head Play and Smooth Rolling Characteristic and Increased Service Life Due to the Special Dynamic Blickle Riveting Process, Non-Staining
Caster Mounting Type
Plate
Caster Brake Type
No Brake
Number of Mounting Holes
4
Swivel Construction
Kingpin
Number of Wheels
1
Wheel Bearing Material
Steel
Wheel Bearing Type
Ball
Wheel Core Type
Solid
Mounting Hole Type
Slot
Wheel Core Material
Aluminum
Frame Construction
Pressed
Swivel Bearing Seal Type
Sealed
Wheel Hardness Rating
92 Shore A
Load Capacity - Maximum
880 lb
Includes Thread Guards
No
Mounting Plate Shape
Rectangle
Wheel/Tread Material
Polyurethane
Tread Shape
Standard
Caster Features
Corrosion-Resistant, Debris-Resistant, Maintenance Free, Quiet-Roll
Swivel Raceway Type
Double Ball
For Surface Type
Asphalt, Ceramic, Grease, Oil, Rubber, Steel, Tile, Vinyl, Wood
Operating Temperature - Minimum
-20 Degrees C
Operating Temperature - Maximum
70 Degrees C
Product Type
Plate Caster

Description

Swivel, Plate Caster, Wheel Dia. 8 in, Wheel Width 2 in, Wheel/Tread Material Polyurethane, Wheel Core Material Aluminum, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
