Shop ZORO SELECT

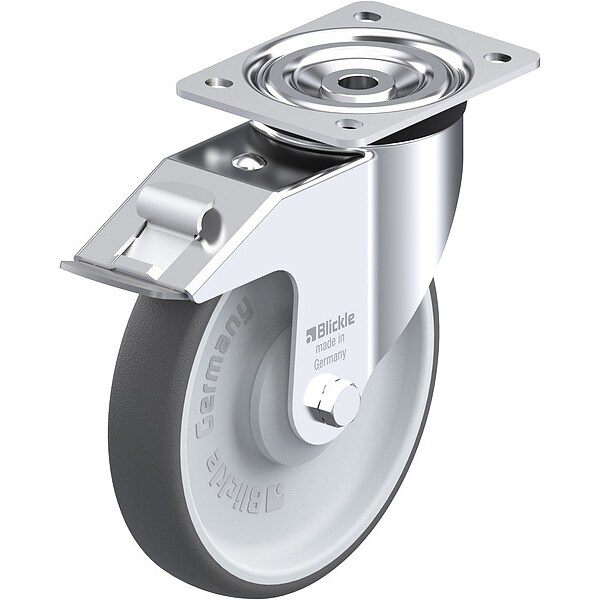

Plate Caster, Swivel, Polyurethane, 9 1/4"H

  • Mfr # L-PATH 200KA-FI

  • Zoro # G514810918

product price:  $221.99
/ea
Free Shipping & Returns

Key Features

Features
Minimum Swivel Head Play and Smooth Rolling Characteristic and Increased Service Life Due to the Special Dynamic Blickle Riveting Process, Non-Staining
Number of Wheels
1
Non-Marking
Yes
Caster Sub-Type
Swivel
Wheel/Tread Color
Gray
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
L-PATH 200KA-FI
Zoro #
G514810918
UPC #
-
Country of Origin
Germany

Dimensions

Wheel Dia.
8 in
Mounting Height
9 1/4 in
Wheel Width
1 9/16 in
Mounting Bolt Dia.
3/8 in
For Axle Dia.
12 mm
Inside Slot Spacing - Width
2.969 in
Mounting Plate Thickness
5/32 in
Overall Wheel Width
1 9/16 in
Inside Slot Spacing - Length
4.125 in
Outside Slot Spacing - Length
4.125 in
Outside Slot Spacing - Width
3.156 in
Mounting Plate Width
110 mm
Hub Length
60 mm
Mounting Plate Length
4 5/16 in

Details

Features
Minimum Swivel Head Play and Smooth Rolling Characteristic and Increased Service Life Due to the Special Dynamic Blickle Riveting Process, Non-Staining
Number of Wheels
1
Item
Plate Caster
Non-Marking
Yes
Caster Sub-Type
Swivel
Wheel/Tread Color
Gray
Number of Mounting Holes
4
Series
PATH
Core Color
Silver
Swivel Construction
Kingpin
Frame Finish
Zinc Plated
Caster Brake Type
Total Lock
Caster Mounting Type
Plate
Caster Frame Material
Steel
System of Measurement
Inch
Frame Construction
Pressed
Includes Thread Guards
Yes
Wheel Bearing Type
Ball
Load Capacity - Maximum
880 lb
For Surface Type
Asphalt, Ceramic, Grease, Oil, Rubber, Steel, Tile, Vinyl, Wood
Caster Features
Corrosion-Resistant, Debris-Resistant, Maintenance Free, Quiet-Roll
Operating Temperature - Minimum
-20 Degrees C
Wheel Hardness Rating
94 Shore A
Wheel Core Material
Nylon
Wheel Core Type
Solid
Mounting Plate Shape
Rectangle
Wheel/Tread Material
Polyurethane
Tread Shape
Standard
Swivel Bearing Seal Type
Sealed
Brake Location
Rear
Wheel Bearing Material
Steel
NSF Listed
No
Swivel Raceway Type
Double Ball
Mounting Hole Type
Slot
Operating Temperature - Maximum
70 Degrees C

Description

Swivel, Plate Caster, Wheel Dia. 8 in, Wheel Width 1 9/16 in, Wheel/Tread Material Polyurethane, Wheel Core Material Nylon, Non-Marking Yes, Number of Wheels 1, Caster Brake Type Total Lock, Tread Shape Standard
