  11. Plate Caster, Swivel, Rubber, 6 11/16"H

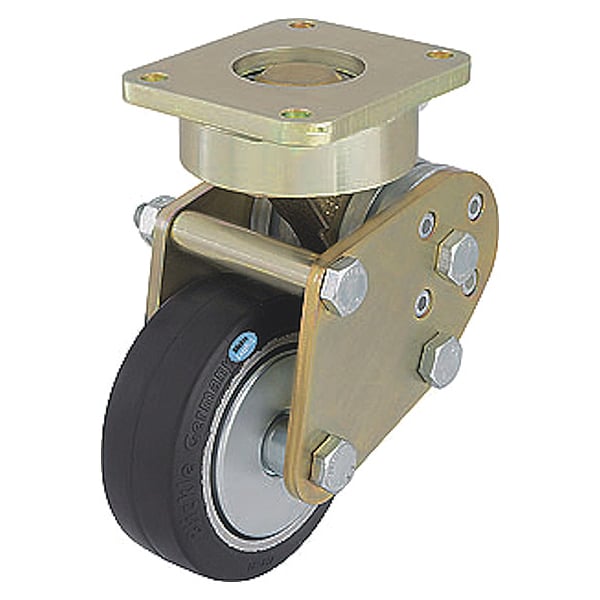

Zoro Select Plate Caster, Swivel, Rubber, 6 11/16"H LPFE-ALEV 100K-FA - main

Plate Caster, Swivel, Rubber, 6 11/16"H

  • Mfr # LPFE-ALEV 100K-FA

  • Zoro # G3779734

product price: $296.99
/ea
Free Shipping & Returns

Key Features

Tread Shape
Standard
Wheel Width
40 mm
Mounting Height
6 11/16 in
Load Rating
440 lb
Wheel/Tread Material
Rubber
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
LPFE-ALEV 100K-FA
Zoro #
G3779734
UPC #
-
Country of Origin
Germany

Dimensions

Wheel Width
40 mm
Mounting Height
6 11/16 in
Stem Length
No Stem
Mounting Bolt Dia.
M8
Plate Thickness
5/16"
Stem Dia.
No Stem
Plate Size
3-3/8" x 3-15/16"
Caster Plate Thickness
8 mm
Overall Height
170 mm
Caster Plate Size
85 mm x 100 mm
Wheel Dia.
100 mm
Swivel Radius
88 mm
Overall Wheel Width
1 9/16 in
Mounting Plate Thickness
3/32 in
Mounting Plate Length
3 3/8 in
For Axle Dia.
10 mm
Bolt Hole Spacing - Length
3.156 in
Bolt Hole Spacing - Width
2.375 in

Details

Item
Swivel Plate Spring Loaded Caster
Tread Shape
Standard
Load Rating
440 lb
Wheel/Tread Material
Rubber
Application
Retail, Industrial, Commercial
Non-Marking
No
Caster Brake Type
No Brake
Caster Frame Material
Steel
Wheel Bearing Type
Ball
Wheel/Tread Hardness Rating
Soft
Number of Wheels
1
Outside Bolt Hole Spacing
60 mm x 80 mm
Caster Wheel Bearings
Precision Ball
Caster Load Rating Range
Heavy Duty
Caster Temp. Range
-25 Degrees To 80 Degrees C
Max. Compression Force
330 kg
Load Capacity
200 kg
Max. Spring Deflection
16 mm
Frame Material
Steel
Caster Temp. Range Available
Yes
Caster Raceway
Double Ball
Frame Finish
Zinc Plated
Wheel Color
Black
Caster Wheel/Tread Material
EasyRoll Elastic Solid Rubber
Caster Sub-Type
Swivel
Caster Swivel Lock Type
No Lock Included
Caster Brake Included
No
System of Measurement
Metric
Inside Bolt Hole Spacing
60 mm x 80 mm
Replacement Wheel
Mfr. No. ALEV 100/15K
Features
Noise Reduction
Core Color
Silver
Caster Product Group
Swivel Caster
Side Mount Hole Pattern
D
Standards
RoHS, ICWM
Caster Core Material
Aluminum
Includes
Metal Thread Guards
Operating Temperature Range
-20 Degrees to 180 Degrees F
Wheel Core Material
Aluminum
Mounting Plate Bolt Hole Pattern
D
Swivel Raceway Type
Sealed Ball Bearing
Wheel/Tread Hardness
65 Shore A
Caster Break Type
No Brake Included
Tread Color
Black
Resistant To
High Chemical Resistance To Many Aggressive Substances, Except Oils
Number of Mounting Holes
4
Extended Lead
No
ESD Conductive
No
Series
LPFE Series
Caster Mounting Type
Plate
Tread
Standard
Includes Thread Guards
No
Compatible With
ALEV 100/15K
Load Capacity - Maximum
440 lb
Wheel Hardness Rating
65 Shore A
Caster Features
Corrosion-Resistant, Debris-Resistant, Maintenance Free, Quiet-Roll
For Surface Type
Asphalt, Ceramic, Grease, Rubber, Steel
Mounting Plate Shape
Rectangle
Wheel Core Type
Solid
Mounting Hole Type
Hole
Wheel Bearing Material
Steel

Description

Swivel, Plate Caster, Load Rating 440 lb, Wheel Dia. 4 in, Wheel Width 1 9/16 in, Wheel/Tread Material Rubber, Wheel Core Material Aluminum, Non-Marking No, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
