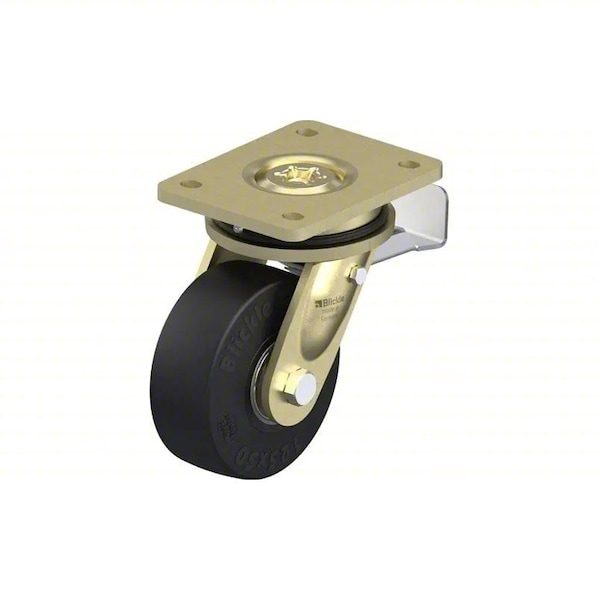

Zoro Select Plate Caster, Swivel, Rubber, 6 11/16"H LS-SE 125K-ST - main

Plate Caster, Swivel, Rubber, 6 11/16"H

  • Mfr # LS-SE 125K-ST

  • Zoro # G314810965

product price:  $421.99
/ea
Free Shipping & Returns

Key Features

Standards
ISO 104, ISO 355
Caster Sub-Type
Swivel
Core Color
Black
Swivel Construction
Kingpin
Non-Marking
No
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
LS-SE 125K-ST
Zoro #
G314810965
UPC #
-
Country of Origin
Germany

Dimensions

Wheel Width
52 mm
Wheel Dia.
152 mm
Mounting Height
170 mm
Mounting Bolt Dia.
10 mm
Mounting Plate Width
110 mm
Mounting Plate Length
140 mm
Bolt Hole Spacing - Length
80 mm
Overall Wheel Width
52 mm
For Axle Dia.
12 mm
Bolt Hole Spacing - Width
75 mm
Hub Length
50 mm
Mounting Plate Thickness
8 mm

Details

Standards
ISO 104, ISO 355
Caster Sub-Type
Swivel
Core Color
Black
Swivel Construction
Kingpin
Non-Marking
No
Number of Mounting Holes
4
Features
Dust and Splash-Proof, Grease Nipple
Caster Brake Type
Total Lock
Number of Wheels
1
System of Measurement
Metric
Frame Finish
Zinc Plated
Item
Plate Caster
Wheel/Tread Color
Black
Caster Frame Material
Steel
Series
SE
Caster Mounting Type
Plate
Wheel Hardness Rating
65 Shore A
Brake Location
Face
Wheel Bearing Material
Steel
Includes Thread Guards
No
Wheel Bearing Type
Ball
Operating Temperature - Maximum
80 Degrees C
Caster Features
Corrosion-Resistant, Debris-Resistant, Maintenance Free, Quiet-Roll
For Surface Type
Asphalt, Ceramic, Grease, Rubber, Steel
Mounting Plate Shape
Rectangle
Load Capacity - Maximum
1,765 lb
Wheel/Tread Material
Rubber
Operating Temperature - Minimum
-20 Degrees C
Tread Shape
Standard
Wheel Core Type
Solid
Frame Construction
Welded
Mounting Hole Type
Hole
Wheel Core Material
Nylon

Description

Swivel, Plate Caster, Wheel Dia. 152 mm, Wheel Width 52 mm, Wheel/Tread Material Rubber, Wheel Core Material Nylon, Non-Marking No, Number of Wheels 1, Caster Brake Type Total Lock, Tread Shape Standard
