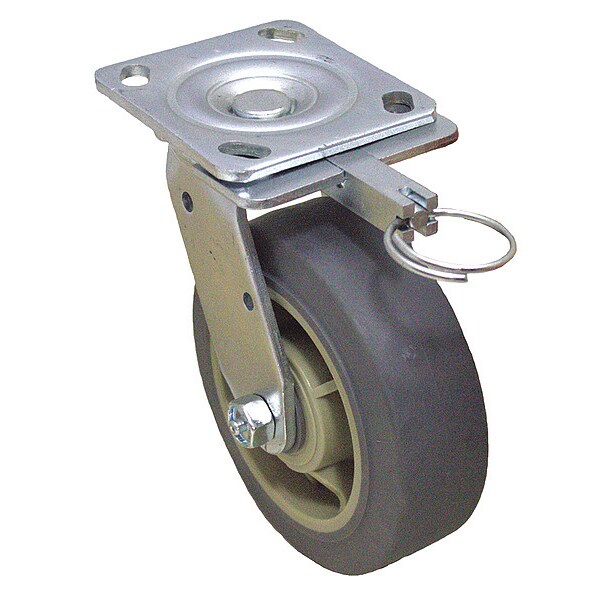

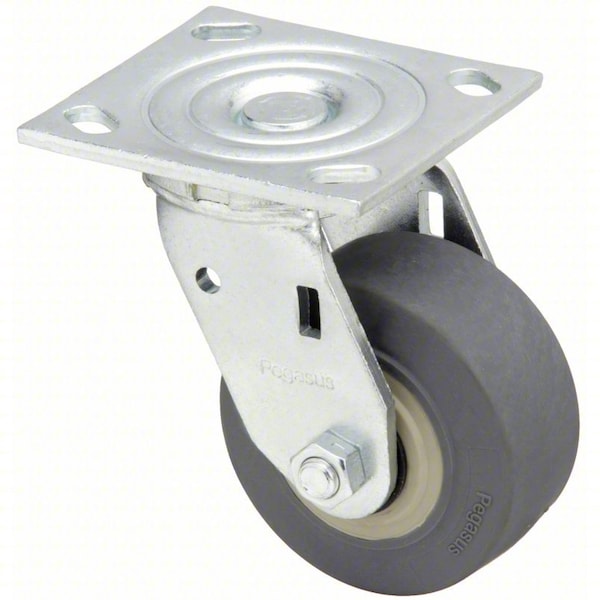

Zoro Select Plate Caster, Swivel, Rubber, 6 1/2"H P21S-PRP050R-14-DL - main

Plate Caster, Swivel, Rubber, 6 1/2"H

  • Mfr # P21S-PRP050R-14-DL

  • Zoro # G3575465

product price:  $29.75
/ea

Key Features

Wheel/Tread Hardness Rating
Firm
Extended Lead
No
Caster Frame Material
Steel
Wheel Width
2 in
Tread Color
Gray
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
P21S-PRP050R-14-DL
Zoro #
G3575465
UPC #
-
Country of Origin
China

Dimensions

Wheel Width
2 in
Mounting Bolt Dia.
3/8 in
Wheel Dia.
5 in
Mounting Height
6 1/2 in
Mounting Plate Size
4in x 4-1/2in
Overall Height
6-1/2in
Swivel Radius
4 1/4 in
Mounting Plate Thickness
1/4in
Outside Slot Spacing - Width
3 in
Inside Slot Spacing - Length
3 in
Inside Slot Spacing - Width
2.625 in
Overall Wheel Width
2 in
Mounting Plate Length
4 in
For Axle Dia.
1/2 in
Outside Slot Spacing - Length
3.625 in

Details

Wheel/Tread Hardness Rating
Firm
Extended Lead
No
Caster Frame Material
Steel
Tread Color
Gray
Caster Brake Type
Directional Lock
Replacement Wheel
Mfr. No. P-RP-050x020/050R
Tread Shape
Standard
Frame Finish
Zinc Plated
Swivel Construction
Kingpin
Standards
DIN EN 12530
Thread Guards
No
Load Rating
350 lb
Outside Bolt Hole Spacing
2-5/8 in x 3-5/8 in
Swivel Lock Type
Directional Lock
Number of Wheels
1
Wheel Bearing Type
Roller
Caster Temp. Range Available
Yes
Inside Bolt Hole Spacing
3 in x 3 in
Features
Push/Pull Force Reduction
Tread
Standard
Core Color
Gray
Caster Brake Included
No
Application
Food Service Racks and Cases, Hotel Equipment, Laundry Trucks, Office Equipment, Stock Carts, Store Fixtures, Utility Carts
Load Rating Range
Light-Medium Duty
Swivel Raceway Type
Double Ball
Includes Thread Guards
No
Wheel Color
Gray
Number of Mounting Holes
4
Item
Swivel Caster with Four Position Swivel Lock
Includes
Directional Lock
Caster Plate Hole Pattern
B
Non-Marking
Yes
Caster Mounting Type
Plate
Wheel/Tread Material
Thermoplastic Rubber
Caster Sub-Type
Swivel
System of Measurement
Inch
Wheel Core Material
Polypropylene
Wheel/Tread Color
Gray
Series
P21 Series
Resistant To
High Chemical Resistance To Many Aggressive Substances
Load Capacity
350 lb
ESD Conductive
No
Compatible With
P-RP-050X020/050R
Load Capacity - Maximum
350 lb
Wheel Hardness Rating
90 Shore A
Caster Features
Debris-Resistant
Mounting Plate Shape
Rectangle
Mounting Hole Type
Slot
Wheel Bearing Material
Steel
Wheel Core Type
Solid
For Surface Type
Asphalt, Ceramic, Grease, Oil, Rubber, Steel, Tile, Vinyl, Wood
Operating Temperature - Maximum
180 Degrees F
Operating Temperature Range
-4 Degrees To 140 Degrees F
Operating Temperature - Minimum
-15 Degrees F

Description

Swivel, Plate Caster, Load Rating 350 lb, Swivel Lock Type Directional Lock, Wheel Dia. 5 in, Wheel Width 2 in, Wheel/Tread Material Rubber, Wheel Core Material Polyolefin, Non-Marking Yes, Number of Wheels 1, Caster Brake Type Directional Lock, Tread Shape Standard
