Shop ZORO SELECT

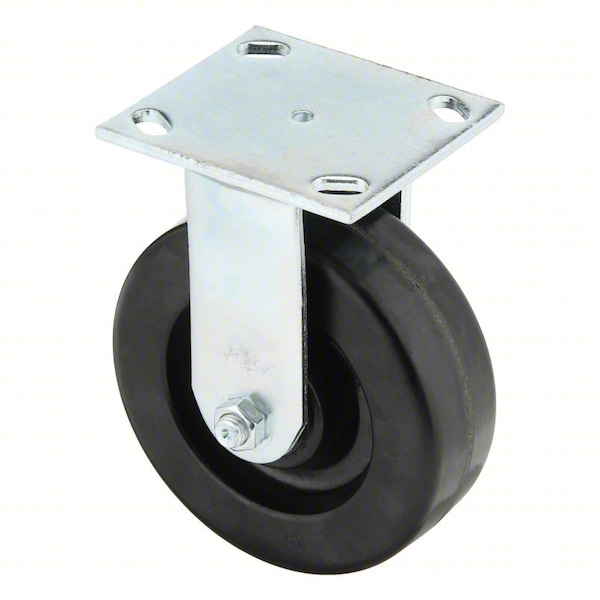

PlateCaster, Rigd, Swivl, Phenolic, 7 1/2"H

  • Mfr # P21-PH060R-14-SET
  • Zoro # G1432384
product price:
$
102.99
/ea
Free Shipping & Returns

Key Features

Mounting Plate Size
4 in x 4 1/2 in
Swivel Bearing Seal Type
Open
For Surface Type
Grease, Metal Scrap, Oil, Rubber, Steel, Wood
Wheel Dia.
6 in
Wheel Core Type
Solid
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
P21-PH060R-14-SET
Zoro #
G1432384
UPC #
-
Country of Origin
China

Dimensions

Mounting Plate Size
4 in x 4 1/2 in
Wheel Dia.
6 in
Swivel Radius
5 1/4 in
Mounting Height
7 1/2 in
Overall Height
7-1/2"
Mounting Bolt Dia.
3/8 in
Overall Wheel Width
2 in
For Axle Dia.
1/2 in
Wheel Width
2 in
Mounting Plate Thickness
7/32 in
Hub Length
2 3/16 in
Outside Slot Spacing - Length
3.625 in
Mounting Plate Length
4 1/2 in
Mounting Plate Width
4 in
Outside Slot Spacing - Width
3 in
Inside Slot Spacing - Length
3 in
Inside Slot Spacing - Width
2.625 in
Fits Chest Size
Low Rolling Resistance

Details

Item
Plate Caster
Swivel Bearing Seal Type
Open
For Surface Type
Grease, Metal Scrap, Oil, Rubber, Steel, Wood
Wheel Core Type
Solid
Core Color
Black
Load Rating Range
1000 to 2999 lb
Wheel Core Material
Phenolic
Features
Low Rolling Resistance
Includes Mounting Fasteners
Yes
Wheel Bearing Material
Steel
Wheel/Tread Material
Phenolic
Includes Spanner Bushing
Yes
Frame Finish
Zinc Plated
Swivel Lead
1 13/16 in
Load Rating
1200 lb
Wheel/Tread Hardness Rating
Hard
Operating Temperature Range
-20 Degrees to 250 Degrees F
Number of Wheels
1
Includes
(2) Rigid Casters, (2) Swivel Casters, Mounting Hardware
Application
Dollies, Floor Trucks, Material Handling Containers, Platform Trucks, Shop Carts, Warehouse Trucks, Waste Disposal Trucks
System of Measurement
Inch
NSF Listed
No
Wheel Bearing Type
Roller
Inside Bolt Hole Spacing
2-5/8 in x 3-5/8 in
ESD Conductive
No
Replacement Wheel
490V95
Caster Mounting Type
Plate
Frame Color
Silver
Frame Construction
Stamped
Series
Pegasus 21 Series
Outside Bolt Hole Spacing
3 in x 3 in
Caster Frame Material
Steel
Standards
ANSI ICWM
Non-Marking
Yes
Swivel Construction
Kingpin
Caster Sub-Type
Rigid, Swivel
Caster Brake Type
No Brake
Swivel Lock Type
No Lock Included
Tread Shape
Standard
Number of Mounting Holes
4
Caster Plate Hole Pattern
B
Includes Thread Guards
No
Wheel/Tread Color
Black
Swivel Raceway Type
Double Ball
With Toe Plate
No
Load Capacity - Maximum
4,800 lb
Wheel Hardness Rating
102 HRE
Caster Features
Corrosion-Resistant
Mounting Plate Shape
Rectangle
Mounting Hole Type
Slot

Description

Rigid, Swivel, Plate Caster, Load Rating 1200 lb, Swivel Lock Type No Lock Included, Wheel Dia. 6 in, Wheel Width 2 in, Wheel/Tread Material Phenolic, Wheel Core Material Phenolic, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
