  11. PlateCaster, Rigid, Swivl, Phenolic, 5 5/8"H

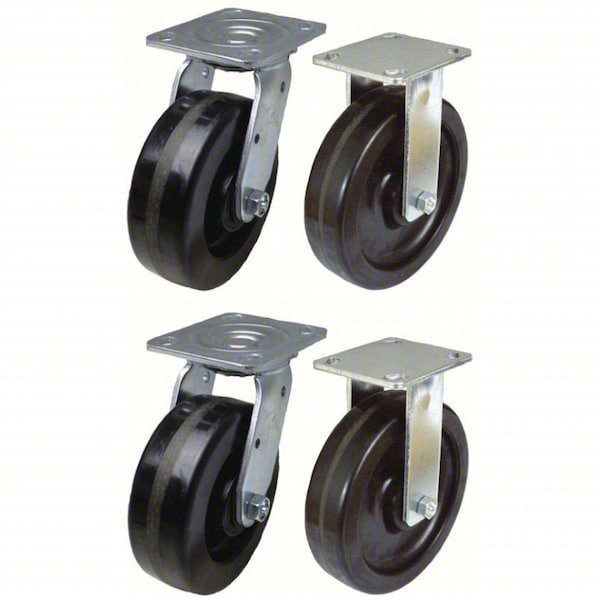

Zoro Select PlateCaster, Rigid, Swivl, Phenolic, 5 5/8"H P21-PH040R-14-SET - main

PlateCaster, Rigid, Swivl, Phenolic, 5 5/8"H

  • Mfr # P21-PH040R-14-SET

  • Zoro # G2976837

product price: $87.59
/ea
Free Shipping & Returns

Key Features

Caster Sub-Type
Rigid, Swivel
System of Measurement
Inch
Wheel/Tread Material
Phenolic
Caster Brake Type
No Brake
Wheel Dia.
4 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
P21-PH040R-14-SET
Zoro #
G2976837
UPC #
-
Country of Origin
China

Dimensions

Wheel Dia.
4 in
Wheel Width
2 in
Mounting Height
5 5/8 in
Mounting Plate Size
4 in x 4 1/2 in
Mounting Plate Thickness
7/32 in
Mounting Bolt Dia.
3/8 in
Swivel Radius
3 5/8 in
Overall Height
5-5/8in
Hub Length
2 3/16 in
For Axle Dia.
1/2 in
Overall Wheel Width
2 in
Mounting Plate Length
4 1/2 in
Mounting Plate Width
4 in
Inside Slot Spacing - Length
3 in
Outside Slot Spacing - Width
3 in
Inside Slot Spacing - Width
2.625 in
Outside Slot Spacing - Length
3.625 in

Details

Item
Plate Caster
Caster Sub-Type
Rigid, Swivel
System of Measurement
Inch
Wheel/Tread Material
Phenolic
Caster Brake Type
No Brake
Load Rating
800 lb
Caster Mounting Type
Plate
Wheel Bearing Type
Roller
Wheel/Tread Color
Black
Wheel Hardness Rating
102 HRE
Number of Mounting Holes
4
Tread Shape
Standard
Caster Frame Material
Steel
Core Color
Black
Non-Marking
Yes
Number of Wheels
1
Outside Bolt Hole Spacing
3 in x 3 in
Inside Bolt Hole Spacing
2-5/8 in x 3-5/8 in
Caster Plate Hole Pattern
B
Swivel Bearing Seal Type
Open
Application
Dollies, Floor Trucks, Material Handling Containers, Platform Trucks, Shop Carts, Warehouse Trucks, Waste Disposal Trucks
For Surface Type
Grease, Metal Scrap, Oil, Rubber, Steel, Wood
With Toe Plate
No
Wheel Core Type
Solid
Wheel/Tread Hardness Rating
Hard
Includes Spanner Bushing
Yes
Includes Mounting Fasteners
Yes
Swivel Construction
Kingpin
Wheel Bearing Material
Steel
Replacement Wheel
489D32
Standards
ANSI ICWM
Includes Thread Guards
No
Features
Low Rolling Resistance
Load Rating Range
300 to 999 lb
Swivel Lock Type
No Lock Included
Frame Color
Silver
NSF Listed
No
Operating Temperature Range
-20 Degrees to 250 Degrees F
Frame Construction
Stamped
Frame Finish
Zinc Plated
Swivel Raceway Type
Double Ball
Series
Pegasus 21 Series
Includes
Mounting Hardware
ESD Conductive
No
Wheel Core Material
Phenolic
Swivel Lead
1 3/8 in
Load Capacity - Maximum
3,200 lb
Mounting Hole Type
Slot
Mounting Plate Shape
Rectangle
Caster Features
Corrosion-Resistant

Description

Rigid, Swivel, Plate Caster, Load Rating 800 lb, Swivel Lock Type No Lock Included, Wheel Dia. 4 in, Wheel Width 2 in, Wheel/Tread Material Phenolic, Wheel Core Material Phenolic, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
