  6. PlateCaster, Swivel, Polypropylene, 6 1/2"H

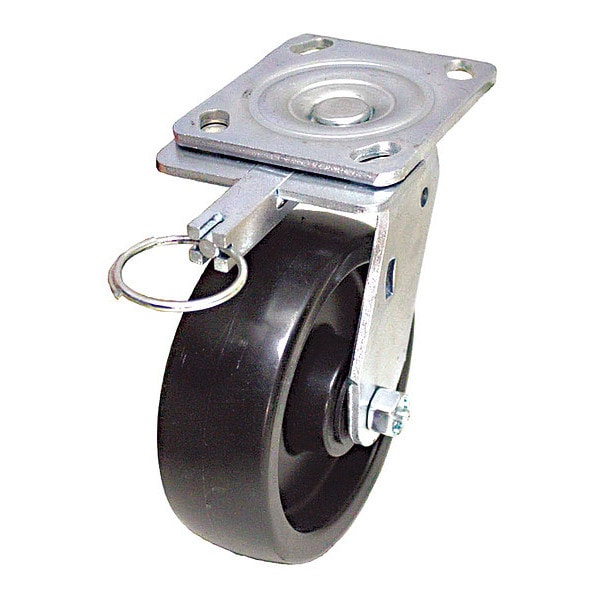

Zoro Select PlateCaster, Swivel, Polypropylene, 6 1/2"H P21S-PB050R-14-DL - main

PlateCaster, Swivel, Polypropylene, 6 1/2"H

  • Mfr # P21S-PB050R-14-DL

  • Zoro # G3574765

product price:  $24.25
/ea

Key Features

Mounting Bolt Dia.
3/8 in
Replacement Wheel
Mfr. No. P-PB-050x020/050R
Number of Wheels
1
Mounting Plate Size
4in x 4-1/2in
Non-Marking
Yes
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
P21S-PB050R-14-DL
Zoro #
G3574765
UPC #
-
Country of Origin
China

Dimensions

Mounting Bolt Dia.
3/8 in
Mounting Plate Size
4in x 4-1/2in
Wheel Width
2 in
Overall Height
6-1/2in
Wheel Dia.
5 in
Swivel Radius
4 1/4 in
Mounting Height
6 1/2 in
For Axle Dia.
1/2 in
Outside Slot Spacing - Width
3 in
Outside Slot Spacing - Length
3.625 in
Inside Slot Spacing - Length
3 in
Inside Slot Spacing - Width
2.625 in
Mounting Plate Thickness
1/4in
Overall Wheel Width
2 in
Mounting Plate Length
4 in

Details

Replacement Wheel
Mfr. No. P-PB-050x020/050R
Number of Wheels
1
Non-Marking
Yes
Caster Temp. Range Available
Yes
Tread
Standard
Caster Frame Material
Steel
Caster Sub-Type
Swivel
Outside Bolt Hole Spacing
2-5/8 in x 3-5/8 in
Tread Shape
Standard
Wheel/Tread Hardness Rating
Hard
Includes
Directional Lock
Caster Plate Hole Pattern
B
Wheel Bearing Type
Roller
Swivel Construction
Kingpin
Caster Brake Included
No
Wheel Core Material
Polypropylene
Core Color
Black
Load Rating
650 lb
Swivel Raceway Type
Double Ball
Inside Bolt Hole Spacing
3 in x 3 in
Wheel/Tread Material
Thermoplastic Rubber
Includes Thread Guards
No
Features
Chemical Resistance
Load Rating Range
Light-Medium Duty
Wheel Color
Black
Tread Color
Black
Frame Finish
Zinc Plated
Caster Mounting Type
Plate
Number of Mounting Holes
4
Application
Food Service Racks and Cases, Hotel Equipment, Laundry Trucks, Office Equipment, Stock Carts, Store Fixtures, Utility Carts
Caster Brake Type
Directional Lock
System of Measurement
Inch
Swivel Lock Type
Directional Lock
Extended Lead
No
Item
Swivel Caster with Four Position Swivel Lock
Standards
DIN EN 12532
Thread Guards
No
Wheel/Tread Color
Black
Load Capacity
650 lb
Resistant To
High Chemical Resistance To Many Aggressive Substances
Series
P21 Series
ESD Conductive
No
Compatible With
P-PB-050X020/050R
Wheel Hardness Rating
65 Shore D
Load Capacity - Maximum
650 lb
Wheel Bearing Material
Steel
Wheel Core Type
Solid
Mounting Plate Shape
Rectangle
For Surface Type
Asphalt, Ceramic, Grease, Oil, Rubber, Steel, Tile, Vinyl, Wood
Mounting Hole Type
Slot
Caster Features
Corrosion-Resistant, Maintenance Free
Operating Temperature Range
-20 Degrees To 180 Degrees F
Operating Temperature - Minimum
-15 Degrees F
Operating Temperature - Maximum
180 Degrees F

Description

Swivel, Plate Caster, Load Rating 650 lb, Swivel Lock Type Directional Lock, Wheel Dia. 5 in, Wheel Width 2 in, Wheel/Tread Material Polypropylene, Wheel Core Material Polyolefin, Non-Marking Yes, Number of Wheels 1, Caster Brake Type Directional Lock, Tread Shape Standard
