Shop ZORO SELECT

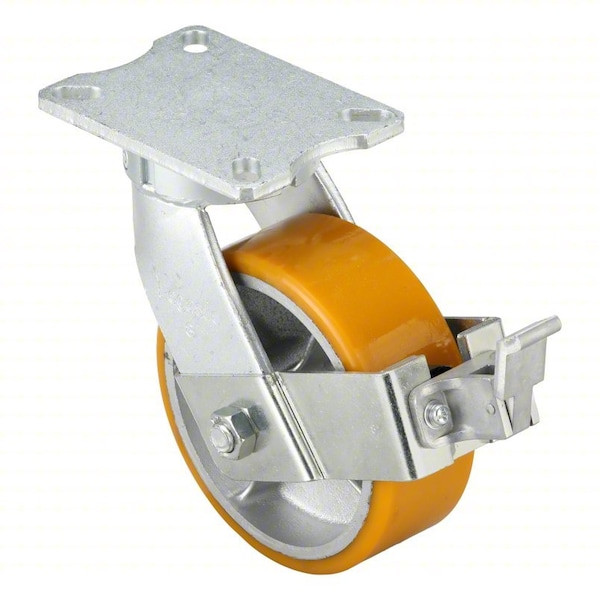

PlateCaster, Swivel, Polyurethane, 10 1/2"H

  • Mfr # P27S-UY080R-18-WK-DL

  • Zoro # G9463857

product price:
$
253.99
/ea
Free Shipping & Returns

Key Features

Caster Sub-Type
Swivel
System of Measurement
Inch
Wheel/Tread Material
Polyurethane
Caster Brake Type
Directional Lock, No Brake
Wheel Dia.
8 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
P27S-UY080R-18-WK-DL
Zoro #
G9463857
UPC #
-
Country of Origin
China

Dimensions

Wheel Dia.
8 in
Wheel Width
3 in
Mounting Height
10 1/2 in
Mounting Plate Size
5-1/4 in x 7-1/4 in
Mounting Plate Thickness
3/8 in
Mounting Bolt Dia.
1/2 in
Swivel Radius
None- Rigid Caster
Overall Height
10-1/2"
Inside Slot Spacing - Width
3.375 in
Outside Slot Spacing - Width
4.125 in
Outside Slot Spacing - Length
6.125 in
For Axle Dia.
3/4 in
Mounting Plate Length
5 1/4 in
Inside Slot Spacing - Length
5.25 in
Overall Wheel Width
3 in

Details

Caster Sub-Type
Swivel
System of Measurement
Inch
Wheel/Tread Material
Polyurethane
Caster Brake Type
Directional Lock, No Brake
Load Rating
2500 lb
Caster Mounting Type
Plate
Wheel Bearing Type
Ball
Wheel Hardness Rating
92 Shore A
Number of Mounting Holes
4
Tread Shape
Standard
Caster Frame Material
Steel
Non-Marking
Yes
Outside Bolt Hole Spacing
4-1/8 in x 6-1/8 in
Caster Plate Hole Pattern
A
Inside Bolt Hole Spacing
3-3/8 in x 5-1/4 in
Standards
DIN EN 12532
Replacement Wheel
Mfr. No. P-UY-080X030/075R
Features
Floor Protection
Wheel Color
Yellow
Application
Bakery Racks, Conveyor Drawn Tow Trucks, Dough Troughs, Production Dollies
Includes
Directional Lock, Wheel Brake
Caster Brake Included
Yes
Core Color
Silver
Number of Wheels
1
Thread Guards
No
Item
Plate Caster
Extended Lead
No
Caster Temp. Range Available
Yes
Frame Finish
Zinc Plated
Wheel/Tread Hardness Rating
Firm
Swivel Construction
Kingpinless
Swivel Raceway Type
Single Ball
Includes Thread Guards
No
Load Rating Range
Heavy Duty
Swivel Lock Type
Directional Lock
Wheel Core Material
Iron
Wheel/Tread Color
Yellow
Tread
Standard
Series
P27 Series
Tread Color
Yellow
Load Capacity
2500 lb
ESD Conductive
No
Resistant To
High Chemical Resistance To Many Aggressive Substances
Load Capacity - Maximum
2,500 lb
Compatible With
P-UY-080X030/075R
Brake Location
Rear
Wheel Core Type
Solid
Wheel Bearing Material
Steel
For Surface Type
Asphalt, Ceramic, Grease, Oil, Rubber, Steel, Tile, Vinyl, Wood
Mounting Hole Type
Slot
Caster Features
Corrosion-Resistant, Debris-Resistant, Maintenance Free, Quiet-Roll
Mounting Plate Shape
Rectangle
Operating Temperature - Maximum
180 Degrees F
Operating Temperature Range
-15 Degrees To 160 Degrees F
Operating Temperature - Minimum
-15 Degrees F

Description

Swivel, Plate Caster, Load Rating 2500 lb, Swivel Lock Type Directional Lock, Wheel Dia. 8 in, Wheel Width 3 in, Wheel/Tread Material Polyurethane, Wheel Core Material Iron, Non-Marking Yes, Number of Wheels 1, Caster Brake Type Directional Lock, No Brake, Tread Shape Standard
