Shop ZORO SELECT

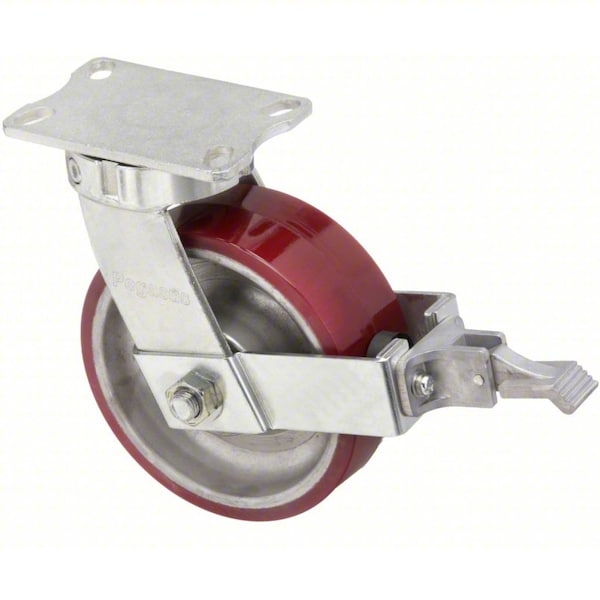

PlateCaster, Swivel, Polyurethane, 10 1/8"H

  • Mfr # P27S-URA080K-16-WK-DL

  • Zoro # G6528678

product price:  $216.99
/ea
Free Shipping & Returns

Key Features

Caster Brake Included
Yes
Frame Finish
Zinc Plated
Standards
ANSI ICWM
Mounting Bolt Dia.
1/2 in
Swivel Radius
6 1/4 in
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
P27S-URA080K-16-WK-DL
Zoro #
G6528678
UPC #
-
Country of Origin
China

Dimensions

Mounting Bolt Dia.
1/2 in
Swivel Radius
6 1/4 in
Overall Height
10-1/8"
Wheel Dia.
8 in
Wheel Width
3 in
Mounting Plate Size
4-1/2 in x 6-1/4 in
Mounting Height
10 1/8 in
Outside Slot Spacing - Length
5.25 in
Mounting Plate Thickness
5/16 in
Inside Slot Spacing - Width
2.438 in
Mounting Plate Length
4 1/2 in
Overall Wheel Width
3 in
Inside Slot Spacing - Length
4.938 in
For Axle Dia.
3/4 in

Details

Item
Plate Caster
Caster Brake Included
Yes
Frame Finish
Zinc Plated
Standards
ANSI ICWM
Caster Frame Material
Steel
Caster Brake Type
Directional Lock, No Brake
Load Rating
2550 lb
Inside Bolt Hole Spacing
2-7/16 in x 4-15/16 in
Caster Sub-Type
Swivel
Wheel Color
Red
Caster Plate Hole Pattern
A
Features
Floor Protective
Non-Marking
Yes
Outside Bolt Hole Spacing
3-3/8 in x 5-1/4 in
Core Color
Silver
Application
Bakery Racks, Conveyor Drawn Tow Trucks, Dough Troughs, Production Dollies
Number of Wheels
1
Thread Guards
No
Caster Temp. Range Available
Yes
Extended Lead
No
Includes
Complete Caster with Directional Lock
Replacement Wheel
Mfr. No. P-URA-080x030/075K
Tread Shape
Standard
Includes Thread Guards
No
Wheel Bearing Type
Ball
Swivel Construction
Kingpinless
Number of Mounting Holes
4
Load Rating Range
Heavy Duty
Swivel Raceway Type
Single Ball
Wheel Core Material
Aluminum
Wheel/Tread Hardness Rating
Firm
Swivel Lock Type
4-Position Directional Lock
Wheel/Tread Material
Polyurethane
Wheel/Tread Color
Red
System of Measurement
Inch
Series
P27 Series
Tread Color
Red
Resistant To
High Chemical Resistance To Many Aggressive Substances
Load Capacity
2500 lb
Caster Mounting Type
Plate
Tread
Standard
ESD Conductive
No
Wheel Hardness Rating
90 Shore A
Load Capacity - Maximum
2,500 lb
Caster Features
Corrosion-Resistant, Debris-Resistant, Maintenance Free, Quiet-Roll
Brake Location
Rear
Wheel Core Type
Solid
Wheel Bearing Material
Steel
For Surface Type
Asphalt, Ceramic, Grease, Oil, Rubber, Steel, Tile, Vinyl, Wood
Mounting Hole Type
Slot
Mounting Plate Shape
Rectangle
Operating Temperature Range
-15 Degrees To 160 Degrees F
Operating Temperature - Maximum
180 Degrees F
Operating Temperature - Minimum
-40 Degrees F

Description

Swivel, Plate Caster, Load Rating 2550 lb, Swivel Lock Type 4-Position Directional Lock, Wheel Dia. 8 in, Wheel Width 3 in, Wheel/Tread Material Polyurethane, Wheel Core Material Aluminum, Non-Marking Yes, Number of Wheels 1, Caster Brake Type Directional Lock, No Brake, Tread Shape Standard
