  11. PlateCaster, Swivl, Polyurethane, 10 7/16"H

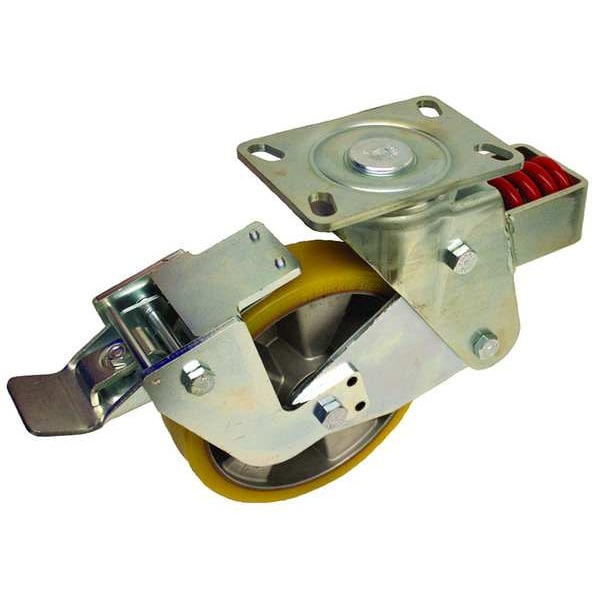

Zoro Select PlateCaster, Swivl, Polyurethane, 10 7/16"H LHF-ALTH 200K-16-RA - main

PlateCaster, Swivl, Polyurethane, 10 7/16"H

  • Mfr # LHF-ALTH 200K-16-RA

  • Zoro # G3779551

product price: $428.99
/ea
Free Shipping & Returns

Key Features

Caster Sub-Type
Swivel
System of Measurement
Inch
Wheel/Tread Material
Thermoplastic Rubber
Caster Brake Type
Face Brake
Wheel Dia.
8 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
LHF-ALTH 200K-16-RA
Zoro #
G3779551
UPC #
-
Country of Origin
Germany

Dimensions

Wheel Dia.
8 in
Wheel Width
2 in
Mounting Height
10 7/16 in
Mounting Plate Size
4-1/2in x 6-1/4in
Mounting Plate Thickness
15/64in
Mounting Bolt Dia.
1/2 in
Swivel Radius
6-9/16 in
Overall Height
10-7/16in
Overall Wheel Width
2 in
For Axle Dia.
12 mm
Inside Slot Spacing - Width
2.438 in
Outside Slot Spacing - Length
5.25 in
Inside Slot Spacing - Length
4.938 in
Mounting Plate Length
4 1/2 in

Details

Item
Swivel Caster with Brake
Caster Sub-Type
Swivel
System of Measurement
Inch
Wheel/Tread Material
Thermoplastic Rubber
Caster Brake Type
Face Brake
Load Rating
1760 lb
Caster Mounting Type
Plate
Wheel Bearing Type
Ball
Wheel/Tread Color
Yellow
Wheel Hardness Rating
92 Shore A
Number of Mounting Holes
4
Tread Shape
Standard
Caster Frame Material
Steel
Core Color
Silver
Non-Marking
Yes
Number of Wheels
1
Outside Bolt Hole Spacing
3-3/8 in x 5-1/4 in
Inside Bolt Hole Spacing
2-7/16 in x 4-15/16 in
Caster Plate Hole Pattern
A
Features
Floor Protection, Noise Reduction, Shock Absorbing
Wheel Color
Yellow
Caster Brake Included
Yes
Caster Temp. Range Available
Yes
Wheel/Tread Hardness Rating
Firm
Wheel Core Material
Aluminum
Includes Thread Guards
No
Application
Food Service, Food Processing, Drug Manufacturing, Retail, Industrial, Commercial, Automotive, Clean Room, Aerospace
Load Rating Range
Medium-Duty
Extended Lead
No
Includes
Steel Spring Shock Absorbing, Radstop Brake
Swivel Lock Type
No Lock Included
Standards
RoHS, ICWM
Frame Finish
Zinc Plated
Replacement Wheel
Mfr. No. ALTH 200/20K
Tread Color
Light Brown
Swivel Raceway Type
Double Ball
Swivel Construction
Kingpin
Thread Guards
No
Tread
Standard
ESD Conductive
No
Series
LHF Series
Max. Spring Deflection
1 in
Resistant To
High Chemical Resistance To Many Aggressive Substances
Load Capacity
680 lb
Load Capacity - Maximum
680 lb
Compatible With
ALTH 200/20K
Wheel Core Type
Solid
Brake Location
Rear
Wheel Bearing Material
Steel
Caster Features
Corrosion-Resistant, Debris-Resistant, Maintenance Free, Quiet-Roll
Mounting Plate Shape
Rectangle
Mounting Hole Type
Slot
For Surface Type
Asphalt, Ceramic, Grease, Oil, Rubber, Steel, Tile, Vinyl, Wood
Operating Temperature - Maximum
160 Degrees F
Operating Temperature - Minimum
-15 Degrees F
Maximum Compression Force
1255 lb
Operating Temperature Range
-15 Degrees To 160 Degrees F

Description

Swivel, Plate Caster, Load Rating 1760 lb, Swivel Lock Type No Lock Included, Wheel Dia. 8 in, Wheel Width 2 in, Wheel/Tread Material Polyurethane, Wheel Core Material Aluminum, Non-Marking Yes, Number of Wheels 1, Caster Brake Type Face Brake, Tread Shape Standard
