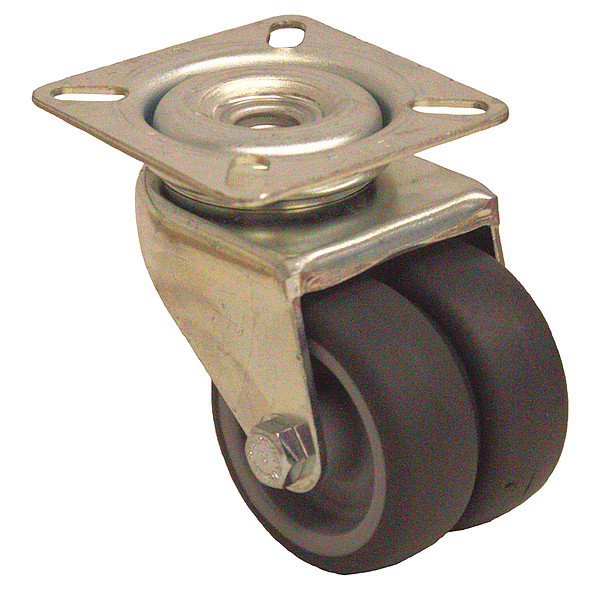

PlateCaster, Swivl, Polyurethane, 2 13/16"H

  • Mfr # LDA-PATH 50G

  • Zoro # G3576585

product price:
$
19.15
/ea

Key Features

Caster Brake Type
No Brake
Wheel Width
3/4 in
Wheel/Tread Material
Polyurethane
System of Measurement
Inch
Standards
DIN EN 12530
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
LDA-PATH 50G
Zoro #
G3576585
UPC #
-
Country of Origin
Germany

Dimensions

Wheel Width
3/4 in
Overall Height
2-51/64"
Swivel Radius
2 1/4 in
Wheel Dia.
2 in
Mounting Plate Size
2-3/8in x 2-3/8in
Mounting Bolt Dia.
7/32 in
Mounting Height
2 13/16 in
Outside Slot Spacing - Width
48 mm
Mounting Plate Thickness
3/32 in
Mounting Plate Length
60 mm
Bolt Hole Spacing - Length
1.5 in
Overall Wheel Width
3/4 in
Outside Slot Spacing - Length
48 mm
Inside Slot Spacing - Width
38 mm
Mounting Plate Width
60 mm
Inside Slot Spacing - Length
38 mm
For Axle Dia.
6 mm

Details

Caster Brake Type
No Brake
Wheel/Tread Material
Polyurethane
System of Measurement
Inch
Standards
DIN EN 12530
Caster Mounting Type
Plate
Frame Finish
Zinc Plated
Caster Frame Material
Steel
Caster Sub-Type
Swivel
Number of Mounting Holes
4
Caster Temp. Range Available
Yes
Caster Plate Hole Pattern
A
Core Color
Gray
Application
Cases, Food Service Racks, Hospital Equipment, Hotel Equipment, Institutional Equipment, Laundry Trucks, Office Equipment, Stock Carts, Store Fixtures, Utility Carts
Tread Color
Dark Gray
Load Rating
175 lb
Inside Bolt Hole Spacing
1-1/2 in x 1-1/2 in
Thread Guards
No
Wheel Bearing Type
Plain
Wheel Core Material
Polyolefin
Swivel Lock Type
No Lock Included
Features
Floor Protective, Reduced Swivel Forces
Tread Shape
Standard
Extended Lead
No
Replacement Wheel
Mfr. No. PATH 50/8G
Swivel Construction
Kingpin
Number of Wheels
2
Item
Plate Caster
Outside Bolt Hole Spacing
1-7/8 in x 1-7/8 in
Wheel Color
Gray
Wheel/Tread Hardness Rating
Firm
Swivel Raceway Type
Double Ball
Load Rating Range
Light-Duty
Non-Marking
Yes
Tread
Standard
Includes Thread Guards
No
Caster Brake Included
No
Wheel/Tread Color
Gray
Series
LDA Series
Load Capacity
80 kg
Resistant To
Very High Chemical Resistance To Many Aggressive Substances
ESD Conductive
No
Load Capacity - Maximum
175 lb
Compatible With
PATH 50/8G
Wheel Hardness Rating
94 Shore A
For Surface Type
Asphalt, Ceramic, Grease, Oil, Rubber, Steel, Tile, Vinyl, Wood
Caster Features
Corrosion-Resistant, Debris-Resistant, Maintenance Free, Quiet-Roll
Wheel Core Type
Solid
Mounting Plate Shape
Rectangle
Mounting Hole Type
Hole
Operating Temperature Range
-25 Degrees To 70 Degrees C
Operating Temperature - Minimum
-15 Degrees F
Operating Temperature - Maximum
160 Degrees F

Description

Swivel, Plate Caster, Load Rating 175 lb, Swivel Lock Type No Lock Included, Wheel Dia. 2 in, Wheel Width 3/4 in, Wheel/Tread Material Polyurethane, Wheel Core Material Polyolefin, Non-Marking Yes, Number of Wheels 2, Caster Brake Type No Brake, Tread Shape Standard
