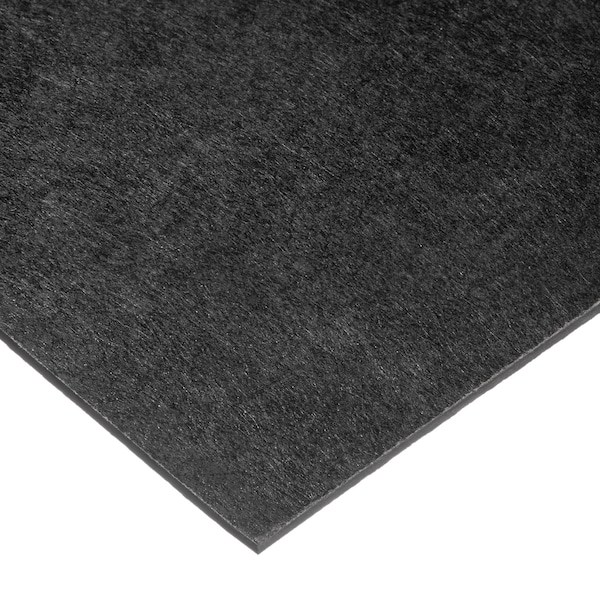

PlstcSht, GaroXX, 12"x12", 0.125"T, Blk, Opq

  • Mfr # BULK-CS-GXXB-42

  • Zoro # G7919473


product price: $13.69
/ea

Key Features

Color
Black
Material
Garolite XX
Shape
Sheet
Plastic Width
12"
Plastic Length
12"
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
BULK-CS-GXXB-42
Zoro #
G7919473
UPC #
193005917319
Country of Origin
United States

Dimensions

Plastic Width
12"
Plastic Length
12"
Plastic Thickness
0.125 in
Thickness
1/8"
Width Tolerance
(-0.25" - +0.25")
Length Tolerance
(-0.25" - +0.25")
Plastic Width Tolerance
+/-1.000 in
Nominal Size
12 in W x 12 in L
Plastic Length Tolerance
+/-1.000 in
Overall Length
12 in
Overall Width
12 in

Details

Item
XX Fiberglass Epoxy Laminate Sheet
Color
Black
Material
Garolite XX
Shape
Sheet
Backing Type
Plain
Hardness
Rockwell M110
Tensile Strength Rating
Excellent
Density
0.049 lbs / cu. in.
Grade
Standard
Friction Rating
Not Rated
Standards
UL 94 HB
Temperature Range
250 Degrees F
Water Absorption Rating
Poor
Friction Coefficient
Not Rated
Impact Strength Rating
Poor
Clarity
Opaque
Impact Strength
0.6 ft.-lbs./in.
Tensile Strength
15,000 psi
Water Absorption
0.0125
Thickness Tolerance
(-0.008" - +0.008")
Minimum Temperature
0 Degrees F
Machinability
Good
Plastic Properties
Electrically Insulating
Corrosion and Chemical Resistance
Fair
Plastic Clarity
Opaque
Plastic Hardness
Rockwell M110
Max. Temp. (F)
250 Degrees F
Operating Temp. Range
0 Degrees to 250 Degrees F
Min. Temp. (F)
0 Degrees F
Maximum Temperature
250 Degrees F
Plastic Hardness Rating
Extra Hard
Plastic Material
Garolite XX
Plastic Density
0.049 lb/cu in
UV Resistant
No
Wear Factor
Fair
Plastic Color
Black
Plastic Thickness Tolerance
+/-0.011 in
Hardness Rating
Extra Hard
Grouping
Sheet Stock

Description

XX Fiberglass Epoxy Laminate Sheet, Material Fiberglass Epoxy Laminate, Color Black, Clarity Opaque, Thickness 1/8 in, Overall Length 12 in, Overall Width 12 in, Tensile Strength 15,000 psi, Maximum Temperature 250 Degrees F, Minimum Temperature 0 Degrees F, Corrosion and Chemical Resistance Fair, Hardness Rockwell M110, Thickness Tolerance +/-0.011 in, Impact Strength 0.6 ft-lb/in, Standards UL 94 HB, Friction Rating Not Rated, Grade XX, Grouping Sheet Stock, Hardness Rating Extra Hard
