  11. Plt Cstr, Kngpnlss Swvl, Nyln, 6", 5400 lb

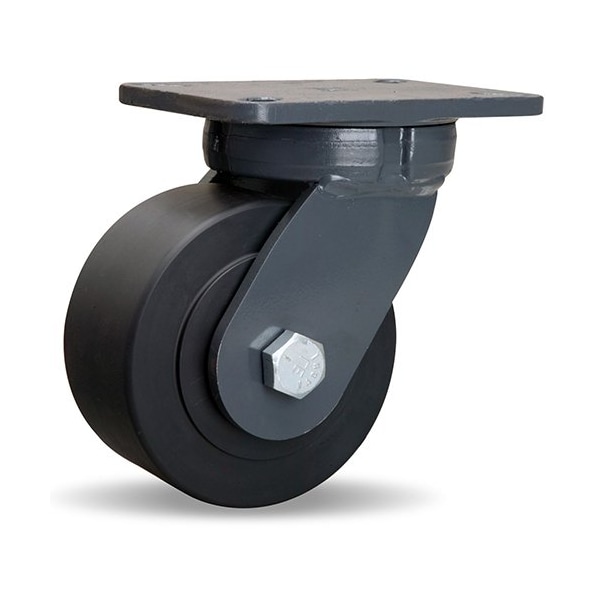

Zoro Select Plt Cstr, Kngpnlss Swvl, Nyln, 6", 5400 lb S-SEC-63NYB - main

Plt Cstr, Kngpnlss Swvl, Nyln, 6", 5400 lb

  • Mfr # S-SEC-63NYB

  • Zoro # G9260951

product price: $422.99
/ea
Free Shipping & Returns

Key Features

Caster Sub-Type
Kingpinless Swivel
System of Measurement
Inch
Wheel/Tread Material
Nylon
Caster Brake Type
No Lock Included
Wheel Dia.
6 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
S-SEC-63NYB
Zoro #
G9260951
UPC #
-
Country of Origin
United States

Dimensions

Wheel Dia.
6 in
Wheel Width
3 in
Mounting Plate Size
5 1/4 in x 7 1/4 in
Mounting Plate Thickness
1/2in
Mounting Bolt Dia.
1/2 in
Overall Height
8in

Details

Item
Plate Caster
Caster Sub-Type
Kingpinless Swivel
System of Measurement
Inch
Wheel/Tread Material
Nylon
Caster Brake Type
No Lock Included
Load Rating
5400 lb
Wheel Bearing Type
Ball
Wheel Hardness Rating
85 shore D
Tread Shape
Standard
Caster Frame Material
Steel
Core Color
Black
Non-Marking
Yes
Number of Wheels
1
Outside Bolt Hole Spacing
4 1/8 in x 6 1/8 in
Inside Bolt Hole Spacing
3 3/8 in x 5 1/4 in
Caster Plate Hole Pattern
A
Caster Temp. Range Available
Yes
Features
Floor Protective
Frame Finish
Enamel
Includes
Spanner Bushing
Application
All Purpose Industrial and Commercial Casters, Casters, Aerospace Tooling, Automotive Assembly Lines, Body Dolly Carts, Engine Dollies, Material Carts, Chassis Rack Carts
Thread Guards
No
Caster Brake Included
No
Wheel Color
Black
Standards
ANSI ICWM
Extended Lead
No
Replacement Wheel
49H458
Swivel Raceway Type
Single Ball
Wheel Core Material
Nylon
Swivel Lock Type
No Lock Included
Load Rating Range
3000 to 5999 lb
Load Capacity - Maximum
5,400 lb
Operating Temperature - Maximum
200 Degrees F
Operating Temperature - Minimum
-30 Degrees F

Description

Kingpinless Swivel, Plate Caster, Load Rating 5400 lb, Swivel Lock Type No Lock Included, Wheel Dia. 6 in, Wheel Width 3 in, Wheel/Tread Material Nylon, Wheel Core Material Nylon, Non-Marking Yes, Number of Wheels 1, Tread Shape Standard
