  11. Plte Caster, Swvl, Phenolic, 4", 800 lb.
Shop All Plate Casters
Zoro Select

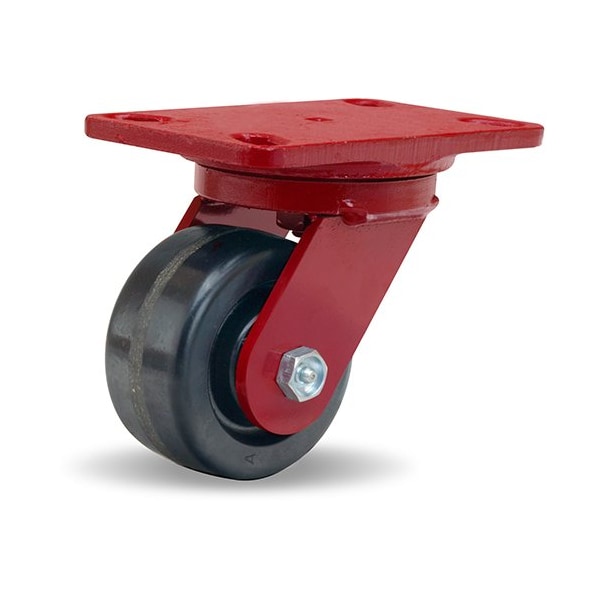

Plte Caster, Swvl, Phenolic, 4", 800 lb.

product price: $171.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Caster Brake Included Yes
  • Caster Load Rating Range Light-Medium Duty
  • Caster Sub-Type Swivel
  • Caster Wheel Shape Standard
  • Caster Wheel/Tread Material Phenolic
See all product information

Product Information

Dimensions

Overall Height 5-5/8"
Wheel Dia. 4 in
Wheel Width 2 in
Caster Plate Size 4-1/2" x 6-1/2"
Mounting Bolt Dia. 1/2 in
Mounting Plate Size 4 1/2 in x 6 1/2 in

Details

Caster Brake Included Yes
Caster Load Rating Range Light-Medium Duty
Caster Sub-Type Swivel
Caster Wheel Shape Standard
Caster Wheel/Tread Material Phenolic
Load Rating 800 lb
Number of Wheels 1
Caster Plate Thickness 5/16"
Extended Lead No
Inside Bolt Hole Spacing 2 7/16 in x 4 15/16 in
Caster Raceway Single Ball
Caster Swivel Lock Type 4-Position Directional Lock
Caster Max. Temp. 200 Degrees F
Outside Bolt Hole Spacing 3 3/8 in x 5 1/4 in
Caster Temp. Range Available Yes
Wheel Color Black
Frame Finish Enamel
Non-Marking Yes
Core Color Black
Durometer 90 Shore D
Includes Swivel Lock, Brake
Plate Caster Bolt Hole Pattern A
Caster Wheel Bearings Roller
Caster Product Group Swivel Caster with 4-Position Directional Lock and Brake
Replacement Wheel 23EK22
Item Plte Caster
Caster Min. Temp. -40 Degrees F
Caster Plate Hole Pattern A
Thread Guards No
Caster Frame Material Steel
Caster Core Material Phenolic
Standards ICWM
Application All Purpose Industrial and Commercial Casters, Casters, Aerospace Tooling, Automotive Assembly Lines, Body Dolly Carts, Engine Dollies, Material Carts, Chassis Rack Carts
Caster Brake Type Side Cam
Tread Shape Standard
Wheel Core Material Phenolic
Swivel Raceway Type Single Ball
Load Rating Range Light Medium
Swivel Lock Type 4-Position Directional Lock
Wheel/Tread Material Phenolic

Description

Swivel, Plte Caster, Load Rating 800 lb, Swivel Lock Type 4-Position Directional Lock, Wheel Dia. 4 in, Wheel Width 2 in, Wheel/Tread Material Phenolic, Wheel Core Material Phenolic, Non-Marking Yes, Number of Wheels 1, Caster Brake Type Side Cam, Tread Shape Standard
