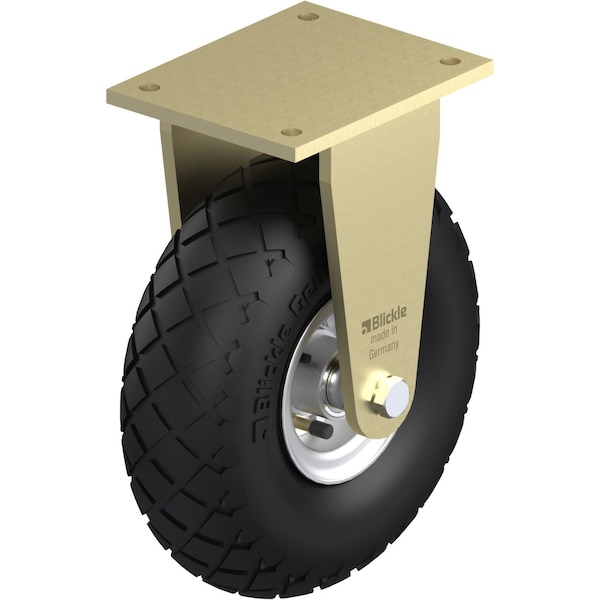

Pneumatic Caster, 1210 lb. Load, Rigid

  • Mfr # BS-PS 315K
  • Zoro # G6247479
product price:
$
449.99
/ea
Free Shipping & Returns

Key Features

Tread Color
Black
Tire Rim Dia.
4 in
Wheel Width
4 1/8 in
Tread
Diamond
Tire Thickness
4 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
BS-PS 315K
Zoro #
G6247479
UPC #
-
Country of Origin
Germany

Dimensions

Tire Rim Dia.
4 in
Wheel Width
4 1/8 in
Tire Thickness
4 in
Hub Width
2-15/16"
Wheel Dia.
12 in
Overall Height
14-3/32"
Mounting Bolt Dia.
9/16 in
Mounting Plate Size
160 mm x 200 mm
Mounting Height
14 1/8 in
Mounting Plate Length
6 5/16 in
Bolt Hole Spacing - Width
4.75 in
Bolt Hole Spacing - Length
6.313 in
Overall Wheel Width
4 1/8 in
Mounting Plate Thickness
3/8 in
For Axle Dia.
16 mm

Details

Tread Color
Black
Tread
Diamond
Item
Plate Caster
Ply
6
Inside Bolt Hole Spacing
4-3/4 in x 6-5/16 in
Caster Plate Hole Pattern
D
Caster Brake Type
No Brake
Hub Color
Silver
Outside Bolt Hole Spacing
4-3/4 in x 6-5/16 in
Caster Mounting Type
Plate
Hub Type
Centered
Non-Marking
No
Load Rating
1210 lb
Caster Sub-Type
Rigid
Caster Temp. Range Available
Yes
Frame Finish
Zinc Plated
Number of Wheels
1
Hub Material
Steel
System of Measurement
Metric
Core Color
Silver
Standards
RoHS, ICWM
Application
Retail, Industrial, Commercial
Replacement Wheel
Mfr. No. PS 315/25-75K
Caster Brake Included
No
Operating Temperature Range
-20 Degrees to 120 Degrees F
Wheel Bearing Type
Ball
Number of Mounting Holes
4
Caster Frame Material
Steel
Wheel/Tread Hardness Rating
Soft
Wheel/Tread Material
Rubber
Load Rating Range
Heavy-Duty
Includes Thread Guards
No
Extended Lead
No
Wheel Type
Pneumatic
Load Capacity
550 kg
Resistant To
Chemical Resistance To Many Aggressive Substances, Except Oils
Series
BS Series
ESD Conductive
No
Wheel Core Material
Pressed Steel
Tread Shape
Standard
Load Capacity - Maximum
1,215 lb
Wheel Hardness Rating
60 Shore A
Mounting Plate Shape
Rectangle
Caster Features
Corrosion-Resistant
For Surface Type
Asphalt, Ceramic, Grease, Rubber, Steel
Wheel Core Type
Solid
Wheel Bearing Material
Steel
Mounting Hole Type
Hole

Description

Rigid, Plate Caster, Load Rating 1210 lb, Wheel Dia. 12 in, Wheel Width 4 1/8 in, Wheel/Tread Material Rubber, Non-Marking No, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
