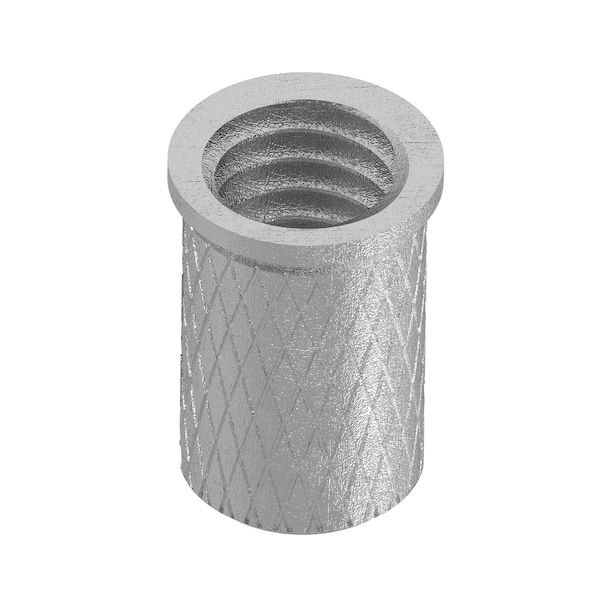

Press Insert, M10-1.50 Int Thrd Sz, 15.875 mm L, 11.455 mm Dia., Aluminum, Plain, 10 PK
Mfr # 240-M10-AL-PK10
Zoro # G509228377
CAD Available
product price:Â $6.85
/pk 10, $0.68/eaKey Features
CAD Drawing
Internal Thread Size
M10-1.50
Material
Aluminum
Flange Style
Flush
Insert Diameter
11.455 mm
Overall Length
15.875 mm
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowUnlock tax-exempt savings
Add Tax ExemptionSpecifications
Product Information
MFR #
240-M10-AL-PK10
Zoro #
G509228377
UPC #
847554042205
Country of Origin
United States
Dimensions
Internal Thread Size
M10-1.50
Insert Diameter
11.455 mm
Overall Length
15.875 mm
Drill Bit Size
7/16 in
Maximum Hole Diameter
11.1252 mm
Minimum Material Thickness
16 11/16 mm
Details
CAD Available
Yes
Item
Press Insert
Material
Aluminum
Flange Style
Flush
Finish
Plain
Thread Type
Metric Coarse
Installation Method
Arbor Press
Compatible Material
Plastic
Body Texture
Knurled
Thread Pitch
1.5 mm
Material Grade/Class
2024
Features
RoHS Compliant
Thread Direction
Right Hand
System of Measurement
Metric
Description
Press Insert, Insert Type Knurled Press Insert, System of Measurement Metric, Overall Length 15.875 mm, Insert Diameter 11.4554 mm, Thread Size M10-1.50, Thread Direction Right Hand, Thread Type Coarse, Material Aluminum, Material Grade/Class 2024, Finish Plain, Flange Style Flush, Body Texture Knurled, Number of Fins Not Applicable, Compatible Material Plastic, Drill Bit Size 7/16 in, Minimum Material Thickness 16 11/16 mm, Maximum Hole Diameter 11.1252 mm, Features RoHS Compliant
