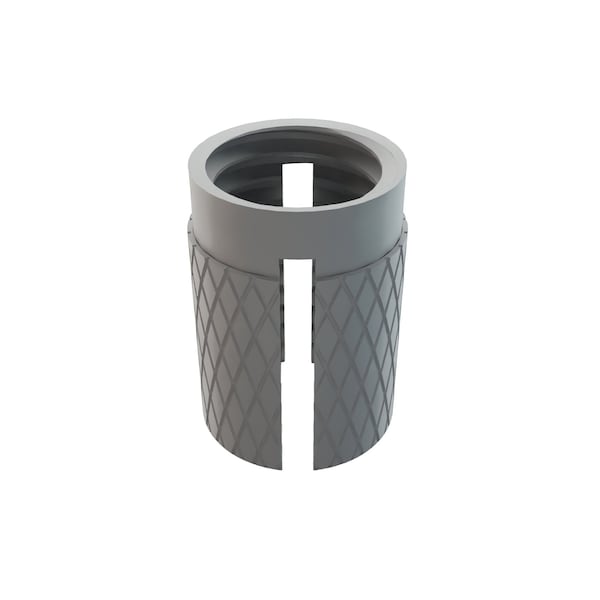

Press Insert, M8-1.25 Int Thrd Sz, 14.3 mm L, 9.880 mm Dia., Aluminum, Plain, 10 PK
Mfr # 240-M8-AL-PK10
Zoro # G109228364
CAD Available
product price:Â $5.39
/pk 10, $0.54/eaKey Features
CAD Drawing
Internal Thread Size
M8-1.25
Material
Aluminum
Flange Style
Flush
Insert Diameter
9.880 mm
Overall Length
14.3 mm
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowUnlock tax-exempt savings
Add Tax ExemptionSpecifications
Product Information
MFR #
240-M8-AL-PK10
Zoro #
G109228364
UPC #
847554042199
Country of Origin
United States
Dimensions
Internal Thread Size
M8-1.25
Insert Diameter
9.880 mm
Overall Length
14.3 mm
Drill Bit Size
3/8 in
Minimum Material Thickness
14 19/64 mm
Maximum Hole Diameter
9.525 mm
Details
Item
Press Insert
Material
Aluminum
Flange Style
Flush
Finish
Plain
Thread Type
Metric Coarse
Installation Method
Arbor Press
Compatible Material
Plastic
Body Texture
Knurled
Features
RoHS Compliant
System of Measurement
Metric
Thread Direction
Right Hand
Thread Pitch
1.25 mm
Material Grade/Class
2024
CAD Available
Yes
Description
Press Insert, Insert Type Knurled Press Insert, System of Measurement Metric, Overall Length 14.3 mm, Insert Diameter 9.8806 mm, Thread Size M8-1.25, Thread Direction Right Hand, Thread Type Coarse, Material Aluminum, Material Grade/Class 2024, Finish Plain, Flange Style Flush, Body Texture Knurled, Number of Fins Not Applicable, Compatible Material Plastic, Drill Bit Size 3/8 in, Minimum Material Thickness 14 19/64 mm, Maximum Hole Diameter 9.525 mm, Features RoHS Compliant
