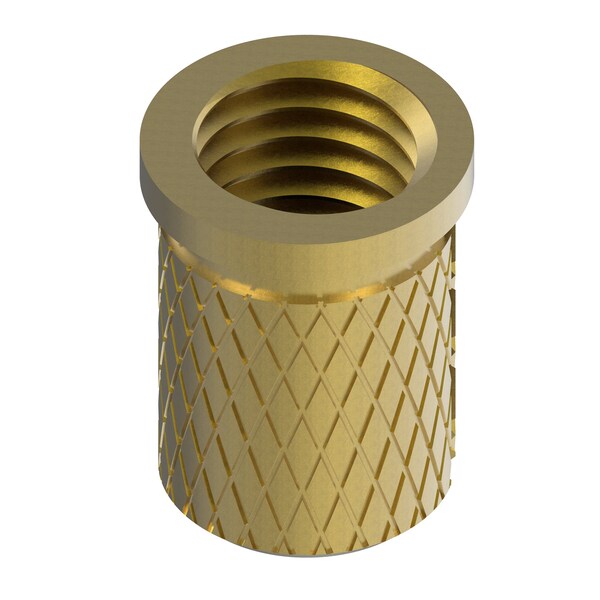

Press Insert, M8-1.25 Int Thrd Sz, 14.3 mm L, 9.880 mm Dia., Brass, Plain, 10 PK
Mfr # 260-M8-BR-PK10
Zoro # G209228240
CAD Available
product price: $5.75
/pk 10, $0.58/eaKey Features
CAD Drawing
Internal Thread Size
M8-1.25
Material
Brass
Flange Style
Flanged
Insert Diameter
9.880 mm
Overall Length
14.3 mm
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
260-M8-BR-PK10
Zoro #
G209228240
UPC #
847554006054
Country of Origin
Taiwan, Province of China
Dimensions
Internal Thread Size
M8-1.25
Insert Diameter
9.880 mm
Overall Length
14.3 mm
Drill Bit Size
3/8 in
Flange Diameter
9.8806 mm
Minimum Material Thickness
14 19/64 mm
Maximum Hole Diameter
9.525 mm
Details
CAD Available
Yes
Item
Press Insert
Material
Brass
Flange Style
Flanged
Finish
Plain
Thread Type
Metric Coarse
Installation Method
Arbor Press
Compatible Material
Plastic
Body Texture
Knurled
Series
260-BR
Tensile Strength
49,000 psi
Material Grade/Class
C3604
System of Measurement
Metric
Thread Pitch
1.25 mm
Thread Direction
Right Hand
Description
Press Insert, Insert Type Knurled Press Insert, System of Measurement Metric, Overall Length 14.3 mm, Insert Diameter 9.8806 mm, Thread Size M8-1.25, Thread Direction Right Hand, Thread Type Coarse, Material Brass, Material Grade/Class C3604, Finish Plain, Flange Style Flanged, Body Texture Knurled, Number of Fins Not Applicable, Compatible Material Plastic, Drill Bit Size 3/8 in, Minimum Material Thickness 14 19/64 mm, Maximum Hole Diameter 9.525 mm, Flange Diameter 9.8806 mm
