Zoro Select Press Switch, Open On Fall 25 PSI 6ALA5 - main

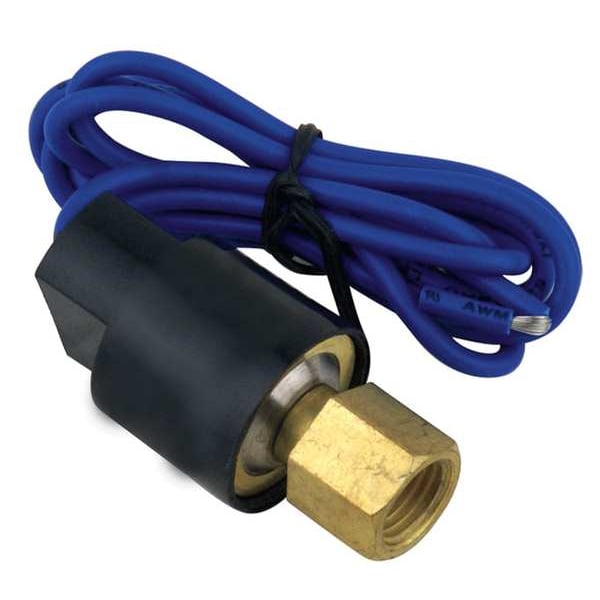

Press Switch, Open On Fall 25 PSI

  • Mfr # 6ALA5

  • Zoro # G2143671

product price: $8.15
/ea

Key Features

Switch Type
SPST
Switch Action
Open on Fall
Pressure Connection
1/4 in Female SAE
Type
Low
Range (PSI)
0.3-150
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
6ALA5
Zoro #
G2143671
UPC #
190735539033
Country of Origin
China

Dimensions

Capillary Length (In.)
18 in
Overall Height
1 7/8 in
Overall Width
1 in
Overall Depth
1 in
Pressure Connection Size
1/4 in

Details

Item
Pressure Switch
Switch Type
SPST
Switch Action
Open on Fall
Pressure Connection
1/4 in Female SAE
Type
Low
Range (PSI)
0.3-150
Close (PSI)
80
Application
For Refrigerants R 12, R 22, R 134A and R 502, In Commercial Refrigeration
Mounting
Universal
Differential Pressure (PSI)
25 to 80
Reset
Auto
Function
To Protect the Compressor Loss of Refrigerant in Commercial Refrigeration and Air Conditioning Systems
Enclosure
NEMA 1
Open (PSI)
25 psi
Pressure Range - Maximum
150 psi
Pressure Setting
Low
Minimum Operating Temperature
-4 Degrees F
Rated Voltage
120/240V AC, 24V DC
Maximum Operating Temperature
194 Degrees F
Weight
0.1 lb
Body Material
Thermoplastic
Pressure Connection Gender
Female
Frequency
50/60 Hz
Control Type
Low Limit
Standards
cURus Recognized
Contact Form
SPST
Pressure Differential Adjustability
Fixed
Mounting Orientation
Any Position
Body Color
Black
Pressure Type
Differential
IP Rating
Not Rated
Reset Type
Automatic Reset
Compatible Pressure Sensor
Universal
Pressure Connection Material
Brass
Product Type
Low Pressure Control
Pressure Connection Type
Flare
Electrical Connection Type
Hardwired

Description

Pressure Switch, Product Type Low Pressure Control, Pressure Range - Maximum 150 psi, Pressure Differential - Minimum Not Applicable, Pressure Range - Minimum Not Applicable, Pressure Differential Max. Not Applicable, Pressure Differential Adjustability Fixed, Pressure Connection Gender Female, Pressure Connection Type Flare, Time Delay Setting Not Applicable, Pressure Setting Low, Pressure Connection Size 1/4 in, Rated Voltage 120/240V AC, 24V DC, Contact Form SPST, Switch Action Open on Fall
