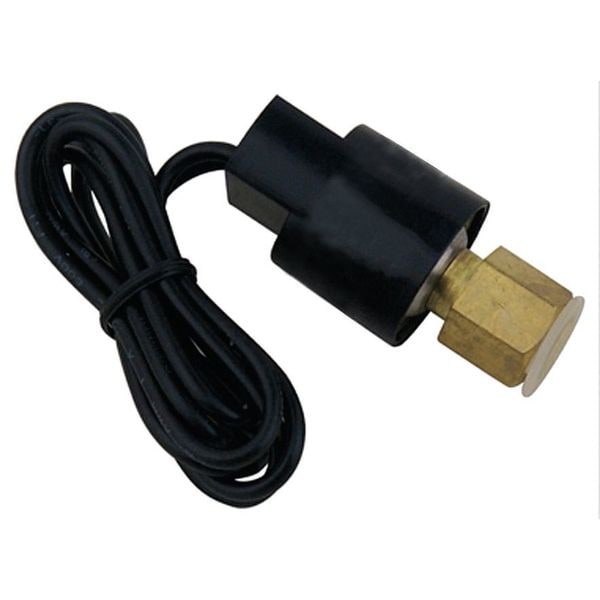

Zoro Select Press Switch, Open On Rise 200 PSI 6ALA7 - main

Press Switch, Open On Rise 200 PSI

  • Mfr # 6ALA7

  • Zoro # G2649832

product price: $7.29
/ea

Key Features

Switch Type
SPST
Switch Action
Open on Rise
Pressure Connection
1/4 in Female SAE
Type
High
Range (PSI)
150-700
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
6ALA7
Zoro #
G2649832
UPC #
190735539057
Country of Origin
China

Dimensions

Capillary Length (In.)
18 in
Overall Height
1 7/8 in
Overall Width
1 in
Overall Depth
1 in
Pressure Connection Size
1/4 in

Details

Item
Pressure Switch
Switch Type
SPST
Switch Action
Open on Rise
Pressure Connection
1/4 in Female SAE
Type
High
Range (PSI)
150-700
Close (PSI)
150
Differential Pressure (PSI)
200 to 150
Function
To Protect the Compressor Loss of Refrigerant in Commercial Refrigeration and Air Conditioning Systems
Mounting
Universal
Application
For Refrigerants R 12, R 22, R 134A and R 502, In Commercial Refrigeration
Reset
Auto
Open (PSI)
200 psi
Enclosure
NEMA 1
Body Material
Thermoplastic
Minimum Operating Temperature
-4 Degrees F
Control Type
High Limit
Mounting Orientation
Any Position
Rated Voltage
120/240V AC, 24V DC
Body Color
Black
Pressure Differential Adjustability
Fixed
Pressure Connection Gender
Female
Product Type
High Pressure Control
Contact Form
SPST
Weight
0.1 lb
Pressure Connection Material
Brass
Pressure Range - Maximum
700 psi
Pressure Connection Type
Flare
Pressure Type
Differential
IP Rating
Not Rated
Maximum Operating Temperature
194 Degrees F
Standards
cURus Recognized
Pressure Setting
High
Reset Type
Automatic Reset
Frequency
50/60 Hz
Electrical Connection Type
Hardwired
Compatible Pressure Sensor
Universal

Description

Pressure Switch, Product Type High Pressure Control, Pressure Range - Maximum 700 psi, Pressure Differential - Minimum Not Applicable, Pressure Range - Minimum Not Applicable, Pressure Differential Max. Not Applicable, Pressure Differential Adjustability Fixed, Pressure Connection Gender Female, Pressure Connection Type Flare, Time Delay Setting Not Applicable, Pressure Setting High, Pressure Connection Size 1/4 in, Rated Voltage 120/240V AC, 24V DC, Contact Form SPST, Switch Action Open on Rise
