  9. Pressure Gauge, Commercial, 0 to 30 psi, 2 in Dial, 1/4 in MNPT, Bottom Connection, Plastic, Black
Zoro Select Pressure Gauge, Commercial, 0 to 30 psi, 2 in Dial, 1/4 in MNPT, Bottom Connection, Plastic, Black 4FLT8 - main

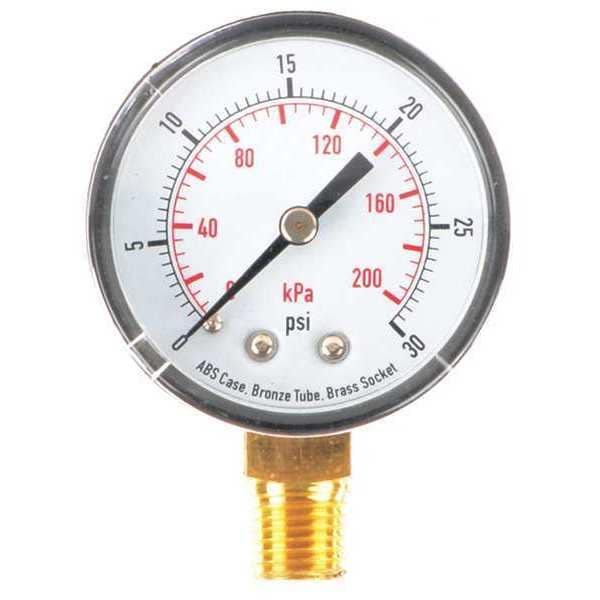

Pressure Gauge, Commercial, 0 to 30 psi, 2 in Dial, 1/4 in MNPT, Bottom Connection, Plastic, Black

  • Mfr # 4FLT8

  • Zoro # G0045367

product price: $5.69
/ea

Key Features

Accuracy
+/-3-2-3%
Process Connection Location
Bottom
Process Connection Size
1/4 in
Process Connection Type
NPT
Dial Size (In.)
2 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
4FLT8
Zoro #
G0045367
UPC #
190735507070
Country of Origin
China

Dimensions

Process Connection Size
1/4 in
Dial Size (In.)
2 in
Nominal Dial Size
2 in
Nominal Dial Diameter
2 in

Details

Item
Commercial Pressure Gauge
Accuracy
+/-3-2-3%
Process Connection Location
Bottom
Process Connection Type
NPT
Application
Test and Measurement
Gauge Case Material
ABS Plastic
Lens Material
Acrylic
Primary Pressure Range
0 to 30
Primary Scale Units
psi
IP/NEMA Rating
Not Rated
Liquid-Filled Case
No
Hazardous Location Rating
Not Rated
Panel-Mountable
No
Blowout Safety Back
No
Calibration Certificate Included
No
Gauge Secondary Range Values
0 to 200
Gauge Primary Range Smallest Graduation
0.5
Smallest Graduation
0.5 psi
Gauge Application
General-Purpose Case
Case Color
Black
For Use With
Air and Noncorrosive Fluids Such as Water and Oil in Pumps, Filters, Compressors, and Regulators
Case Material
ABS Plastic
Socket Material
Brass
Connection Type
MNPT
Wetted Materials
Brass / Bronze
Includes Vent Plug
No
Dial Color
White
Accuracy Scale
Mid-Scale
Scale Type
Dual
Secondary Pressure Range
0 to 200
Includes Mounting Hardware
No
Secondary Scale Units
kPa
Bezel Material
Crimped Stainless Steel
Freeze Resistant Movement
No
Pressure Range Type
Pressure
Gauge Case Liquid
None
Ambient Operating Temperature Range
-40 Degrees to 150 Degrees F
Non-Sparking
No
Includes Calibration Certificate
No
Field Fillable
No
Removable Bezel
No
Process Connection Gender
Male
Vibration Resistance
None
Pressure Gauge Type
Commercial Pressure Gauge
Sensor Material
Bronze
Dry Dampening Feature
None
Primary Scale Minor Graduations
1, 2
Cleaned for Oxygen Service
No
Maximum Pressure
30
Operating Temperature Range
-40 Degrees to 150 Degrees F
Operating Temperature - Maximum
150 Degrees F
Primary Scale Pressure Measurement - Maximum
30 psi
Operating Temperature - Minimum
-40 Degrees F
Case Liquid
None
Secondary Scale Pressure Measurement - Maximum
200 kPa
Secondary Scale Pressure Measurement - Minimum
0 kPa
Primary Scale Pressure Measurement - Minimum
0 psi

Description

Commercial Pressure Gauge, Nominal Dial Size 2 in, Accuracy +/-3-2-3 Percent, Gauge Case Material ABS Plastic, Process Connection Type NPT, Process Connection Gender Male, Lens Material Acrylic, Process Connection Size 1/4 in, Field Fillable No, Process Connection Location Bottom, Case Color Black, IP/NEMA Rating Not Rated, Primary Pressure Range 0 to 30, Dry Dampening Feature None, Vibration Resistance None, Dial Color White, Pressure Gauge Type Commercial Pressure Gauge, Liquid-Filled Case No
