  5. Pressure Gauge, Commercial, 0 to 60 psi, 2 in Dial, Acrylic Lens, 1/4 in MNPT, Plastic, Black

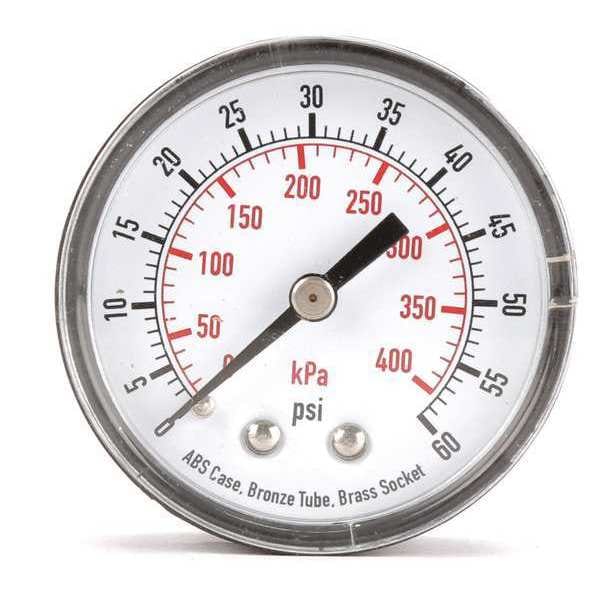

Zoro Select Pressure Gauge, Commercial, 0 to 60 psi, 2 in Dial, Acrylic Lens, 1/4 in MNPT, Plastic, Black 4FMC5 - main

Pressure Gauge, Commercial, 0 to 60 psi, 2 in Dial, Acrylic Lens, 1/4 in MNPT, Plastic, Black

  • Mfr # 4FMC5

  • Zoro # G0045543

product price:  $7.89
/ea

Key Features

Accuracy
+/-3-2-3%
Process Connection Location
Center Back
Process Connection Size
1/4 in
Process Connection Type
NPT
Application
Test and Measurement
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
4FMC5
Zoro #
G0045543
UPC #
190735507766
Country of Origin
China

Dimensions

Process Connection Size
1/4 in
Dial Size (In.)
2 in
Nominal Dial Size
2 in

Details

Item
Commercial Pressure Gauge
Accuracy
+/-3-2-3%
Process Connection Location
Center Back
Process Connection Type
NPT
Application
Test and Measurement
Gauge Case Material
ABS Plastic
Lens Material
Acrylic
Primary Pressure Range
0 to 60
Primary Scale Units
psi
IP/NEMA Rating
Not Rated
Liquid-Filled Case
No
Hazardous Location Rating
Not Rated
Panel-Mountable
No
Blowout Safety Back
No
For Use With
Air and Noncorrosive Fluids Such as Water and Oil in Pumps, Filters, Compressors, and Regulators
Gauge Secondary Range Values
0 to 400
Case Color
Black
Gauge Application
General-Purpose Case
Smallest Graduation
1 psi
Gauge Primary Range Smallest Graduation
1
Calibration Certificate Included
No
Case Material
ABS Plastic
Socket Material
Brass
Wetted Materials
Brass / Bronze
Connection Type
MNPT
Includes Vent Plug
No
Scale Type
Dual
Dry Dampening Feature
None
Gauge Case Liquid
None
Bezel Material
Crimped Stainless Steel
Accuracy Scale
Mid-Scale
Secondary Pressure Range
0 to 400
Ambient Operating Temperature Range
-40 Degrees to 150 Degrees F
Cleaned for Oxygen Service
No
Dial Color
White
Non-Sparking
No
Removable Bezel
No
Process Connection Gender
Male
Includes Calibration Certificate
No
Pressure Gauge Type
General Purpose Dial Pressure Gauge
Freeze Resistant Movement
No
Primary Scale Minor Graduations
1
Pressure Range Type
Pressure
Sensor Material
Bronze
Includes Mounting Hardware
No
Field Fillable
No
Vibration Resistance
None
Secondary Scale Units
kPa
Maximum Pressure
60
Operating Temperature Range
-40 Degrees to 150 Degrees F

Description

Commercial Pressure Gauge, Accuracy +/-3-2-3 Percent, Gauge Case Material ABS Plastic, Nominal Dial Size 2 in, Lens Material Acrylic, IP/NEMA Rating Not Rated, Hazardous Location Rating Not Rated, Sensor Material Bronze, Socket Material Brass, Process Connection Type NPT, Process Connection Gender Male, Process Connection Location Center Back, Process Connection Size 1/4 in, Panel-Mountable No, Pressure Gauge Type Commercial Pressure Gauge
