  9. Process Compound Gauge, 30 to 0 to 300 psi, 4 1/2 in Dial, 1/4 in NPT, Bottom Location

This item is Discontinued.

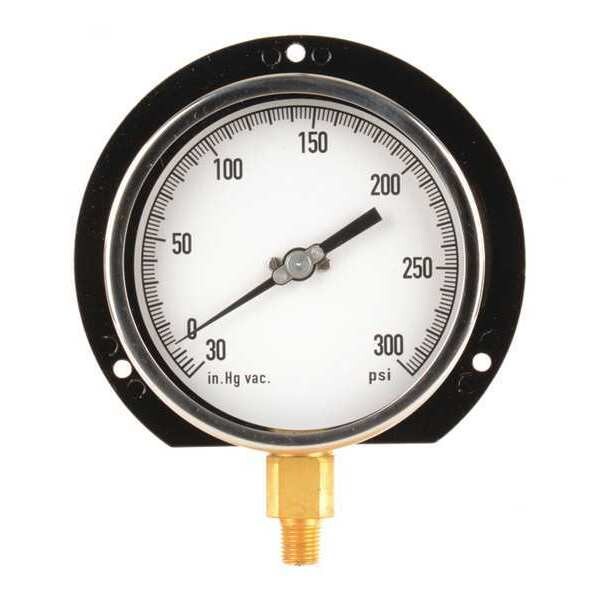

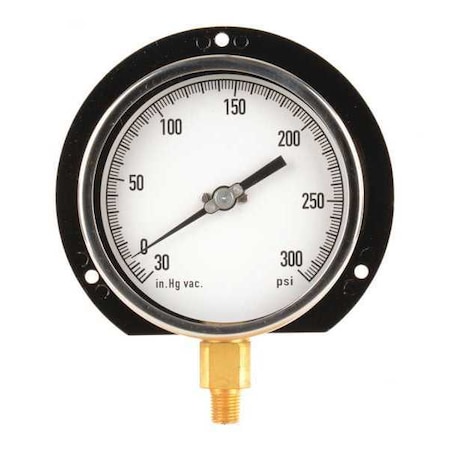

Zoro Select Process Compound Gauge, 30 to 0 to 300 psi, 4 1/2 in Dial, 1/4 in NPT, Bottom Location 11A494

Process Compound Gauge, 30 to 0 to 300 psi, 4 1/2 in Dial, 1/4 in NPT, Bottom Location (Discontinued)

  • Mfr # 11A494
  • Zoro # G4255212
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
11A494
Zoro #
G4255212
UPC #
190735378571
Country of Origin
China

Dimensions

Process Connection Size
1/4 in
Dial Size (In.)
4 1/2 in
Nominal Dial Size
4 1/2 in
Nominal Dial Diameter
4 1/2 in

Details

Item
Process Compound Gauge
Accuracy
+/-0.5%
Process Connection Location
Bottom
Process Connection Type
NPT
Application
General Purpose
Gauge Case Material
Cast Aluminum
Lens Material
Glass
Primary Pressure Range
30 to 0 to 300
Primary Scale Units
in Hg/psi
IP/NEMA Rating
Not Rated
Liquid-Filled Case
No
Hazardous Location Rating
Not Rated
Panel-Mountable
No
Blowout Safety Back
No
Gauge Primary Range Smallest Graduation
1/1
Gauge Application
General Purpose
Calibration Certificate Included
No
Case Color
Black
Smallest Graduation
1 in Hg, 1 psi
For Use With
Non-Explosive Gas Or Liquid That Do Not Crystalize And Corrode Copper Alloy
Case Material
Cast Aluminum
Socket Material
Brass
Wetted Materials
Brass / Bronze
Type
Compound
Standards
ASME
Connection Type
MNPT
Vibration Resistance
None
Includes Mounting Hardware
No
Compatible Process Media
Non-Explosive Gas Or Liquid That Do Not Crystalize And Corrode Copper Alloy
Field Fillable
No
Freeze Resistant Movement
No
Dry Dampening Feature
None
Removable Bezel
No
Pressure Gauge Type
Process Pressure Gauge
Includes Vent Plug
No
Pressure Range Type
Compound
Sensor Material
Bronze
Process Connection Gender
Male
Cleaned for Oxygen Service
No
Ambient Operating Temperature Range
-40 Degrees to 140 Degrees F
Accuracy Scale
Full Scale
Non-Sparking
No
Scale Type
Single
Gauge Case Liquid
None
Primary Scale Minor Graduations
1
Dial Color
White
Includes Calibration Certificate
No
Maximum Pressure
300
Operating Temperature Range
-40 Degrees to 140 Degrees F
Primary Scale Vacuum Measurement - Minimum
0 in Hg
Case Liquid
None
Operating Temperature - Maximum
140 Degrees F
Operating Temperature - Minimum
-40 Degrees F
Primary Scale Pressure Measurement - Maximum
300 psi
Primary Scale Vacuum Measurement - Maximum
30 in Hg
Primary Scale Pressure Measurement - Minimum
0 psi

Description

Process Compound Gauge, Nominal Dial Size 4 1/2 in, Accuracy +/-0.5 Percent, Gauge Case Material Cast Aluminum, Process Connection Type NPT, Process Connection Gender Male, Lens Material Glass, Process Connection Size 1/4 in, Field Fillable No, Process Connection Location Bottom, Case Color Black, IP/NEMA Rating Not Rated, Primary Pressure Range 30 to 0 to 300, Dry Dampening Feature None, Vibration Resistance None, Dial Color White, Pressure Gauge Type Process Pressure Gauge
