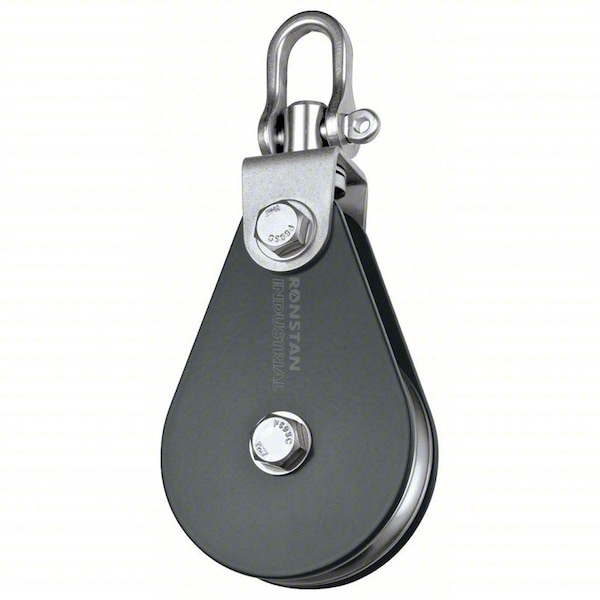

Pulley Block, Wire Rope, 5/16 in Max Cable Size, 6,600 lb Max Load, Powder Coated
Mfr # RZ1700AW
Zoro # G1978874
product price: $182.99
/ea
Free Shipping & Returns
Key Features
Max. Cable Size
5/16 in
Designed For
Wire Rope
Attachment Type
Shackle
Rope Dia.
5/16 in
Working Load Limit
6,600 lb
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
RZ1700AW
Zoro #
G1978874
UPC #
-
Country of Origin
Australia
Dimensions
Max. Cable Size
5/16 in
Rope Dia.
5/16 in
Eye Hook Inside Dia.
5/8 in
Sheave Width
1 1/16 in
Width
4 in
Sheave Outside Dia.
3 in
Length
8 in
Sheave Inside Dia.
2 in
Rope Diameter
5/16 in
Length (Straight Wireway)
8 in
Overall Width
77 mm
Sheave Outside Diameter
3 in
Compatible Rope Diameter
5/16 in
Sheave Inside Diameter
2 1/4 in
Sheave Depth
1 1/16 in
Overall Depth
51 mm
Overall Height
176 mm
Attachment Inside Diameter
5/8 in
Description
Pulley Block, Product Type Pulley Block, Pulley Type Swivel, Mount Type Not Applicable, Working Load Limit 3,300 lb, Operation Pulling, Attachment Type Shackle, Compatible Rope Diameter 5/16 in, Sheave Inside Diameter 2 1/4 in, Sheave Depth 1 1/16 in, Sheave Outside Diameter 3 in, Compatible Rope Type Wire Rope, Bearing Type Sleeve, Attachment Inside Diameter 5/8 in, Housing Material 316 Stainless Steel, Mounting Hole Diameter Not Applicable, Number of Grooves 1, Sheave Material Aluminum
