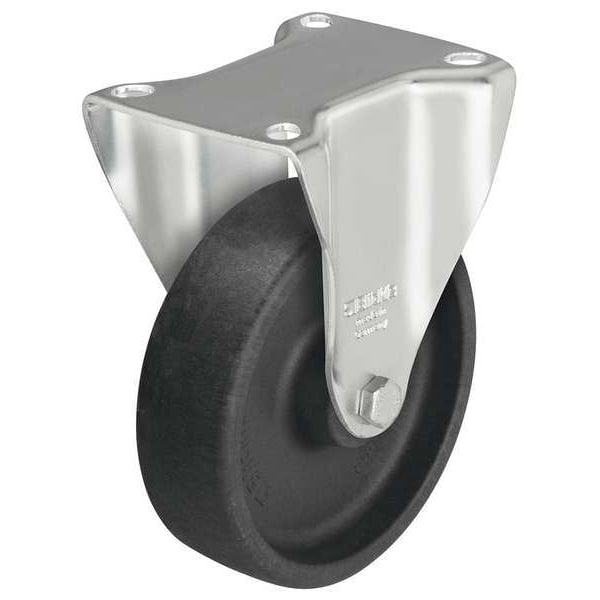

Zoro Select Rgd Plate Caster, Glass Nylon, 5 in, 660 lb BK-POHI 125G-1 - main

Rgd Plate Caster, Glass Nylon, 5 in, 660 lb

  • Mfr # BK-POHI 125G-1

  • Zoro # G7246495

product price:  $52.75
/ea

Key Features

Wheel Color
Gray
Overall Height
6-1/8in
Wheel Dia.
5 in
Load Rating
660 lb
Replacement Wheel
Mfr. No. POHI 125/15G
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
BK-POHI 125G-1
Zoro #
G7246495
UPC #
-
Country of Origin
Germany

Dimensions

Overall Height
6-1/8in
Wheel Dia.
5 in
Mounting Bolt Dia.
9 mm
Wheel Width
1 9/16 in
Mounting Plate Size
3-3/8in x 3-15/16in
Mounting Height
6 1/8 in
Mounting Plate Thickness
7/64in
Overall Wheel Width
1 9/16 in
For Axle Dia.
10 mm
Bolt Hole Spacing - Length
3.156 in
Bolt Hole Spacing - Width
2.375 in
Mounting Plate Length
3 15/16 in
Mounting Plate Width
3 3/8 in

Details

Item
Rigid Caster
Wheel Color
Gray
Load Rating
660 lb
Replacement Wheel
Mfr. No. POHI 125/15G
Caster Brake Included
No
Caster Plate Hole Pattern
A
Thread Guards
No
Inside Bolt Hole Spacing
60 mm x 80 mm
Caster Temp. Range Available
No
Extended Lead
No
Frame Finish
Zinc Plated
Outside Bolt Hole Spacing
60 mm x 80 mm
Caster Sub-Type
Rigid
Standards
DIN EN 12573, ISO 14001, ISO 5001, ISO 9001
Application
Food Industry/Bakeries
Core Color
Gray
Caster Frame Material
Steel
Number of Wheels
1
Wheel/Tread Material
Glass Filled Nylon
Includes Thread Guards
No
Wheel Bearing Type
Plain
Tread Shape
Standard
Load Rating Range
Light-Medium Duty
Number of Mounting Holes
4
Wheel Core Material
Glass Filled Nylon
Non-Marking
Yes
Wheel/Tread Hardness Rating
Hard
Caster Brake Type
No Brake
Swivel Lock Type
No Lock Included
Wheel/Tread Color
Gray
Load Capacity
300 kg
Tread
Standard
Tread Color
Black
Caster Mounting Type
Plate
Series
BK Series
System of Measurement
Metric
Resistant To
High Temperature, High Chemical Resistance To Many Aggressive Substances
ESD Conductive
No
Load Capacity - Maximum
660 lb
Wheel Hardness Rating
85 Shore D
Compatible With
POHI 125/15G
For Surface Type
Asphalt, Ceramic, Grease, Oil, Rubber, Steel, Tile, Vinyl, Wood
Mounting Plate Shape
Rectangle
Mounting Hole Type
Hole
Caster Features
Corrosion-Resistant
Wheel Core Type
Solid
Operating Temperature Range
-25 Degrees To 250 Degrees C

Description

Rigid, Plate Caster, Load Rating 660 lb, Swivel Lock Type No Lock Included, Wheel Dia. 5 in, Wheel Width 1 9/16 in, Wheel/Tread Material Nylon, Wheel Core Material Nylon, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
