  11. Rgd Plate Caster, Nylon, 4 in., 400 lb.

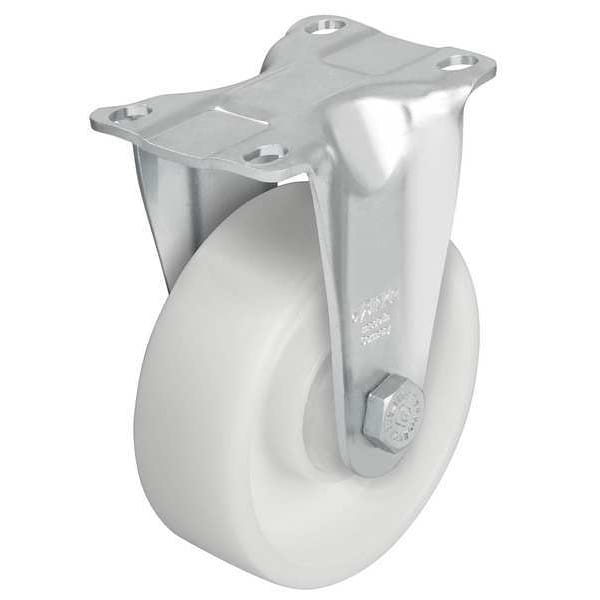

Zoro Select Rgd Plate Caster, Nylon, 4 in., 400 lb. B-PO 100K-12 - main

Rgd Plate Caster, Nylon, 4 in., 400 lb.

  • Mfr # B-PO 100K-12

  • Zoro # G6805933

product price: $31.29
/ea

Key Features

Caster Sub-Type
Rigid
System of Measurement
Inch
Wheel/Tread Material
Nylon
Caster Brake Type
No Brake
Wheel Dia.
4 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
B-PO 100K-12
Zoro #
G6805933
UPC #
-
Country of Origin
Germany

Dimensions

Wheel Dia.
4 in
Wheel Width
1 7/16 in
Mounting Height
5 1/8 in
Mounting Plate Size
2-1/2in x 3-5/8in
Mounting Plate Thickness
1/8in
Mounting Bolt Dia.
9 mm
Overall Height
5-1/8in
Outside Slot Spacing - Length
3.063 in
Inside Slot Spacing - Width
1.75 in
Mounting Plate Length
2 5/8 in
For Axle Dia.
8 mm
Inside Slot Spacing - Length
2.813 in
Overall Wheel Width
1 7/16 in
Outside Slot Spacing - Width
1.75 in

Details

Item
Rigid Caster
Caster Sub-Type
Rigid
System of Measurement
Inch
Wheel/Tread Material
Nylon
Caster Brake Type
No Brake
Load Rating
400 lb
Caster Mounting Type
Plate
Wheel Bearing Type
Ball
Wheel/Tread Color
White
Wheel Hardness Rating
70 Shore D
Number of Mounting Holes
4
Tread Shape
Standard
Caster Frame Material
Steel
Core Color
White
Non-Marking
Yes
Number of Wheels
1
Outside Bolt Hole Spacing
1-3/4 in x 3-1/16 in
Inside Bolt Hole Spacing
1-3/4 in x 2-13/16 in
Caster Plate Hole Pattern
C
Frame Finish
Zinc Plated
Features
American Standard Plate Size
Caster Brake Included
No
Extended Lead
No
Replacement Wheel
Mfr. No. PO 100/10K
Application
Food Service, Food Processing, Drug Manufacturing, Retail, Industrial, Commercial, Automotive, Clean Room, Aerospace
Thread Guards
Yes
Wheel Color
White
Caster Temp. Range Available
No
Wheel/Tread Hardness Rating
Hard
Swivel Lock Type
No Lock Included
Includes Thread Guards
No
Wheel Core Material
Nylon
Load Rating Range
Light-Medium Duty
Tread
Standard
Standards
RoHS, ICWM
Tread Color
White
Load Capacity
330 lb
Resistant To
High Chemical Resistance To Many Aggressive Substances
Series
B Series
ESD Conductive
No
Load Capacity - Maximum
550 lb
Compatible With
PO 100/10K
Mounting Hole Type
Slot
Mounting Plate Shape
Rectangle
Wheel Bearing Material
Steel
Wheel Core Type
Solid
Caster Features
Corrosion-Resistant
For Surface Type
Asphalt, Ceramic, Grease, Oil, Rubber, Steel, Tile, Vinyl, Wood
Operating Temperature Range
-15 Degrees To 175 Degrees F

Description

Rigid, Plate Caster, Load Rating 400 lb, Swivel Lock Type No Lock Included, Wheel Dia. 4 in, Wheel Width 1 7/16 in, Wheel/Tread Material Nylon, Wheel Core Material Nylon, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
