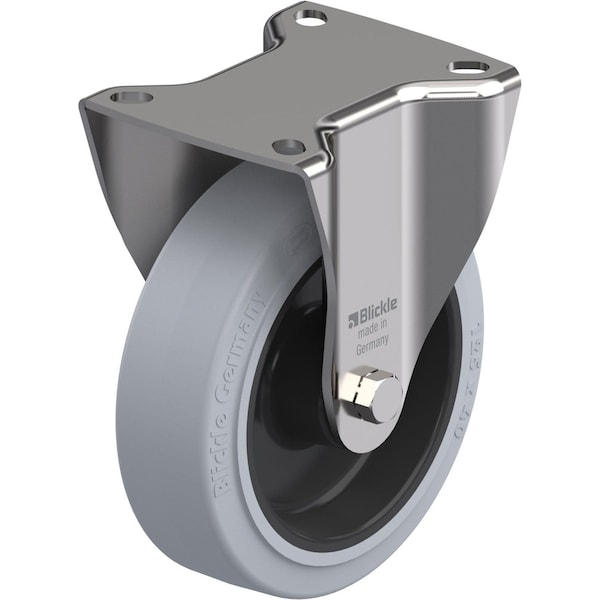

Rgd Plate Caster, Rubber, 5 in., 330 lb.

  • Mfr # BX-POEV 125XR-SG

  • Zoro # G0385887

product price:  $57.89
/ea

Key Features

Outside Bolt Hole Spacing
2-3/8 in x 3-5/32 in
Extended Lead
No
Caster Frame Material
Stainless Steel
Features
Corrosion Resistant
Wheel Dia.
5 in
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
BX-POEV 125XR-SG
Zoro #
G0385887
UPC #
-
Country of Origin
Germany

Dimensions

Wheel Dia.
5 in
Mounting Bolt Dia.
9 mm
Wheel Width
1 7/16 in
Overall Height
5-7/8"
Mounting Plate Size
3-15/16in x 3-3/8in
Mounting Height
5 7/8 in
Mounting Plate Thickness
3/32 in
For Axle Dia.
8 mm
Bolt Hole Spacing - Length
3.156 in
Mounting Plate Width
3 3/8 in
Overall Wheel Width
1 7/16 in
Bolt Hole Spacing - Width
2.375 in
Mounting Plate Length
3 15/16 in

Details

Outside Bolt Hole Spacing
2-3/8 in x 3-5/32 in
Extended Lead
No
Caster Frame Material
Stainless Steel
Features
Corrosion Resistant
Core Color
Black
Application
Food Service, Medical and Institutional Equipment
Number of Wheels
1
Item
Plate Caster
Caster Brake Included
No
Frame Finish
Stainless Steel
Replacement Wheel
Mfr. No. POEV 125/12XR-SG
Inside Bolt Hole Spacing
2-3/8 in x 3-5/32 in
Thread Guards
No
Caster Plate Hole Pattern
A
Caster Temp. Range Available
No
Load Rating
330 lb
Caster Sub-Type
Rigid
Standards
DIN EN 12538, ISO 14001, ISO 5001, ISO 9001
Wheel Color
Gray
Wheel/Tread Hardness Rating
Soft
Swivel Lock Type
No Lock Included
Tread Shape
Standard
Number of Mounting Holes
4
Wheel Core Material
Nylon
Caster Brake Type
No Brake
Non-Marking
Yes
Wheel Bearing Type
Roller
Includes Thread Guards
No
Load Rating Range
Light-Medium Duty
Wheel/Tread Material
Rubber
Wheel/Tread Color
Gray
Load Capacity
150 kg
Tread Color
Gray
Tread
Standard
Caster Mounting Type
Plate
Series
BX Series
System of Measurement
Metric
ESD Conductive
No
Resistant To
High Chemical Resistance To Many Aggressive Substances, Except Oils
Caster Features
Corrosion-Resistant, Debris-Resistant
Load Capacity - Maximum
550 lb
Compatible With
POEV 125/12XR-SG
Wheel Hardness Rating
65 Shore A
Mounting Hole Type
Hole
Wheel Core Type
Solid
Mounting Plate Shape
Rectangle
For Surface Type
Asphalt, Ceramic, Grease, Rubber, Steel
Wheel Bearing Material
Steel
Operating Temperature Range
-25 Degrees To 80 Degrees C

Description

Rigid, Plate Caster, Load Rating 330 lb, Swivel Lock Type No Lock Included, Wheel Dia. 5 in, Wheel Width 1 7/16 in, Wheel/Tread Material Rubber, Wheel Core Material Nylon, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
